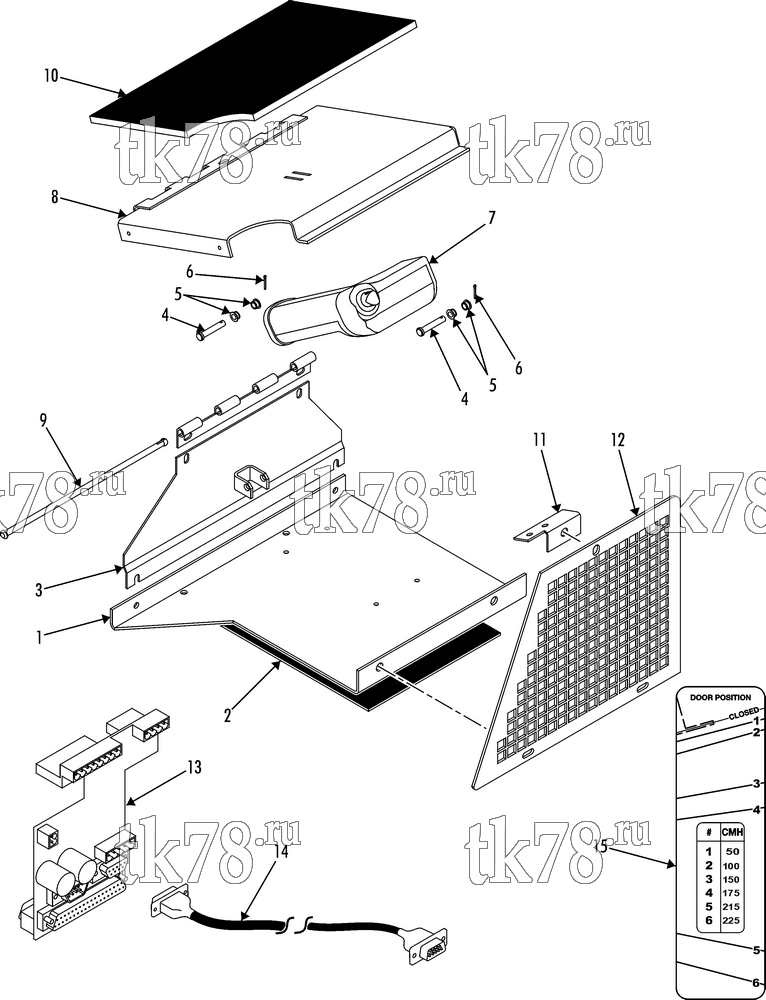

Установкa Thermo King схема AIR VENT (AFAM MP3000) – 213D3
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5685 | BRACKET - air vent | 1 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 51-619 | WASHER - insulator | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 2 | 33-3264 | GASKET | 1 | |
| 3 | 92-5686 | BRACKET - rear | 1 | |
| 51-1445 | SCREW - bracket | 2 | ||
| 51-1464 | FLATWASHER | 2 | ||
| 55-9054 | WASHER - insulator | 2 | ||
| 4 | 51-1496 | PIN - clevis | 2 | |
| 5 | 77-2870 | BEARING | 4 | |
| 6 | 55-2550 | PIN - cotter | 2 | |
| 7 | 41-7238 | ACTUATOR | 1 | |
| 8 | 92-5687 | DOOR - AFAM | 1 | |
| 9 | 91-8106 | PIN - hinge | 1 | |
| 10 | 33-3265 | GASKET - air vent | 1 | |
| 11 | 92-416 | BRACKET - grille | 1 | |
| 51-1445 | SCREW - bracket | 2 | ||
| 55-9054 | WASHER - insulator | 2 | ||
| 51-1464 | FLATWASHER | 2 | ||
| 12 | 92-415 | GRILLE - fresh air | 1 | |
| 51-1422 | SCREW - grille | 3 | ||
| 41-1441 | FLATWASHER | 3 | ||
| 51-619 | WASHER - insulator | 3 | ||
| 13 | 41-3583 | BOARD - interface | 1 | |
| 14 | 41-3584 | CABLE - AFAM/AFAM+ | 1 | |
| 15 | 92-5201 | LABEL - AFAM door position | 1 |
