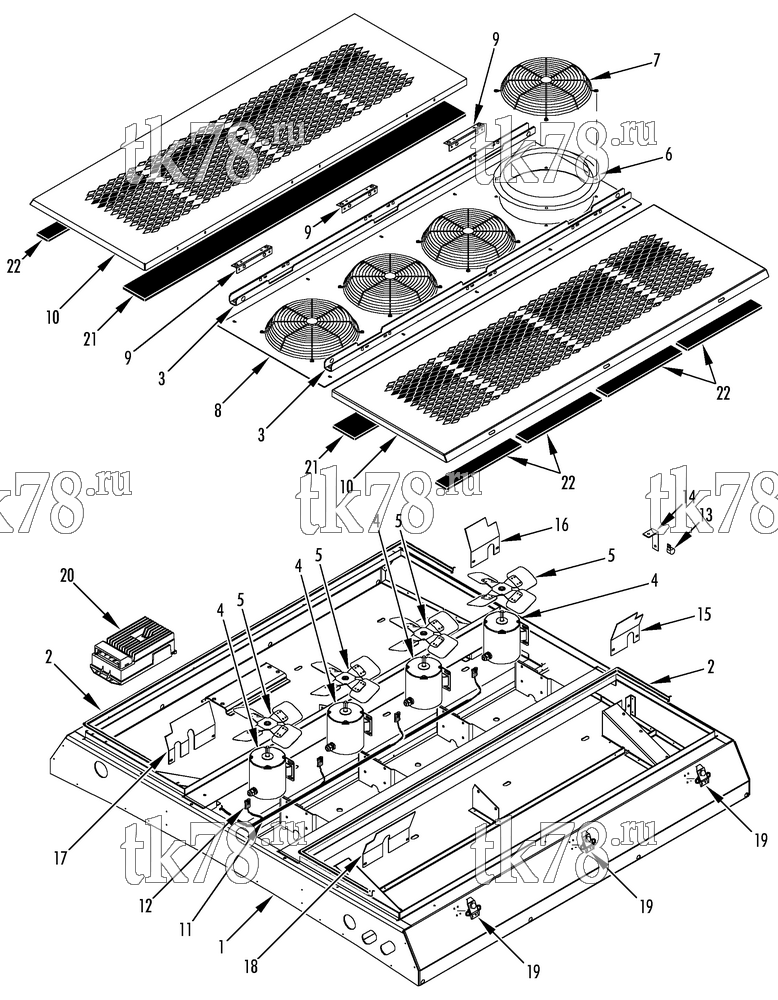

Установкa Thermo King схема CONDENSER STRUCTURAL - MOTORS & FANS – 213B4
Обновление от: 11/2/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4796 | FRAME - condenser (before 6/02) | 1 | |
| 98-6708 | FRAME - condenser (6/02 & after) | 1 | ||
| 2 | 33-4018 | EXTRUSION - rubber | A/R | |
| 3 | 98-4782 | CHANNEL - cover (before 6/02) | 2 | |
| 4 | 104-647 | MOTOR - condenser fan (M6, M7, M12, for connectors see 115D14) | 4 | |
| 55-3490 | SCREW - motor | 16 | ||
| 55-2958 | FLATWASHER | 32 | ||
| 55-4727 | WASHER - special | 16 | ||
| 55-4954 | LOCKNUT | 16 | ||
| 91-8516 | ISOLATOR - rubber pad (3 in x 3 in) | 4 | ||
| 55-9010 | ISOLATOR - rubber washer | 32 | ||
| 55-4931 | WASHER - spacer | 16 | ||
| 5 | 78-859 | FAN - condenser | 4 | |
| 6 | 98-4334 | RING - inlet | 4 | |
| 7 | 91-5917 | GUARD - fan | 4 | |
| 55-2977 | SCREW - guard | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-3045 | WASHER - dome | 16 | ||
| 55-6526 | INSERT - threaded | 16 | ||
| 8 | 98-4650 | ORIFICE - fan | 1 | |
| 55-2957 | SCREW - orifice | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-6526 | INSERT - threaded | 10 | ||
| 9 | 91-6039 | HINGE - cover | 6 | |
| 55-2991 | SCREW - hinge | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-4560 | NUT (hexstop) | 24 | ||
| 10 | 98-6977 | COVER - condenser (before 6/02) | 2 | |
| 91-6086 | INSULATION | A/R | ||
| 11 | 41-1914 | HARNESS - condenser | 1 | |
| 12 | 41-1915 | CONNECTOR - shroud (3-pin, see 171A8) | 4 | |
| 41-1912 | LOCK - secondary | 4 | ||
| 13 | 91-6732 | BRACKET - harness | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 55-6721 | INSERT | 2 | ||
| 14 | 55-9702 | CLAMP - harness (0.625 dia) | 4 | |
| 55-9311 | CLAMP - harness (1.000 dia) | 1 | ||
| 55-2977 | SCREW - clamp & bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 15 | 91-6725 | PLATE - blockoff | 1 | |
| 16 | 91-6727 | PLATE - blockoff | 1 | |
| 17 | 91-6726 | PLATE - blockoff | 1 | |
| 55-2977 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-6526 | INSERT | 8 | ||
| 18 | 91-6724 | PLATE - blockoff | 1 | |
| 305-414 | STOPPER (7/8 in thd) | 1 | ||
| 51-834 | STOPPER (7/16 in thd) | 1 | ||
| 19 | 91-6774 | LATCH - cover | 6 | |
| 55-2991 | SCREW - latch | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-4560 | NUT | 24 | ||
| 20 | 41-3590 | DRIVE - motor upgrade (see 170G9) | 1 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 41-5892 | HARNESS - jumper (motor drive) | 1 | ||
| 33-316 | GROMMET (1.0 in id) | 1 | ||
| 21 | 33-4019 | INSULATION - cover | 2 | |
| 22 | 92-3955 | STRIP - insulation (cut to 16.32 in lg) | A/R |
