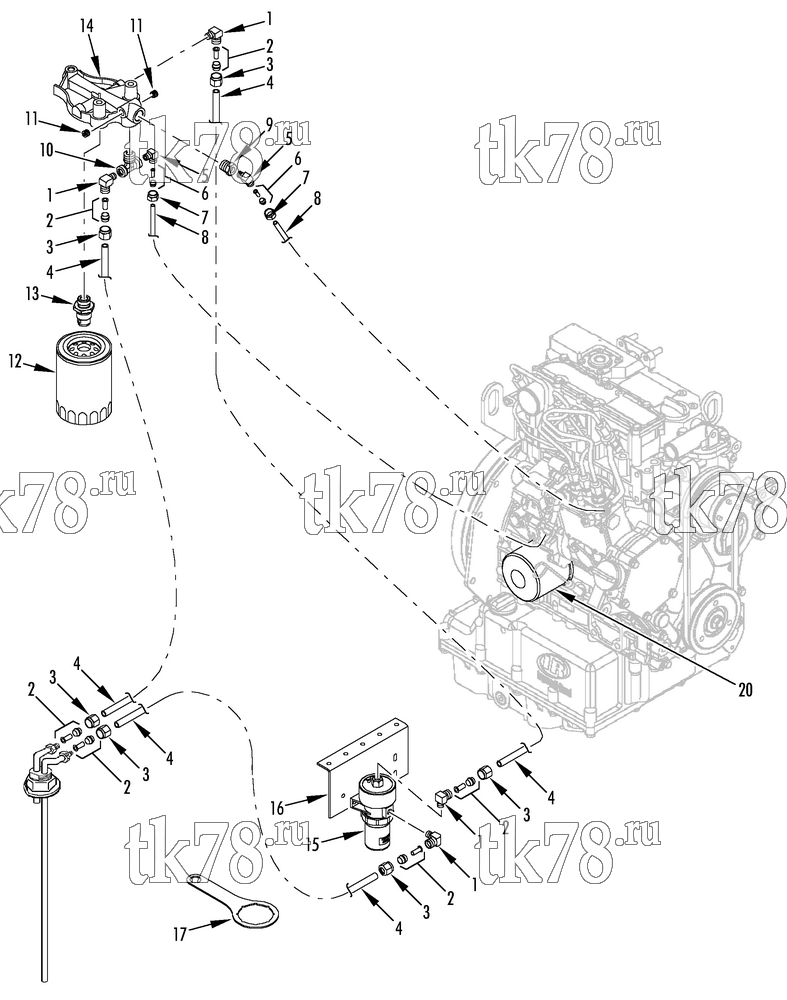

Установкa Thermo King схема FUEL FILTER, HOSES & FITTINGS – 213A3
Обновление от: 7/20/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW - hose fitting (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 6 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT (3/8) | 6 | |
| 4 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 5 | 11-5320 | ELBOW - hose fitting (1/4) | 2 | |
| 6 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 7 | 11-4841 | NUT (1/4) | 4 | |
| 8 | 11-9030 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 9 | 55-2539 | BUSHING | 1 | |
| 10 | 51-1479 | TEE (with restrictor) | 1 | |
| 11 | 55-433 | PLUG | 2 | |
| 12 | 11-9341 | FILTER - fuel (EMI 2000 hour) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 13 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 14 | 11-6529 | BRACKET - fuel filter | 1 | |
| 55-2962 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 3 | ||
| 15 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 16 | 92-5656 | BRACKET - fuel pump | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 17 | 204-1166 | WRENCH - fuel bowl | 1 |
