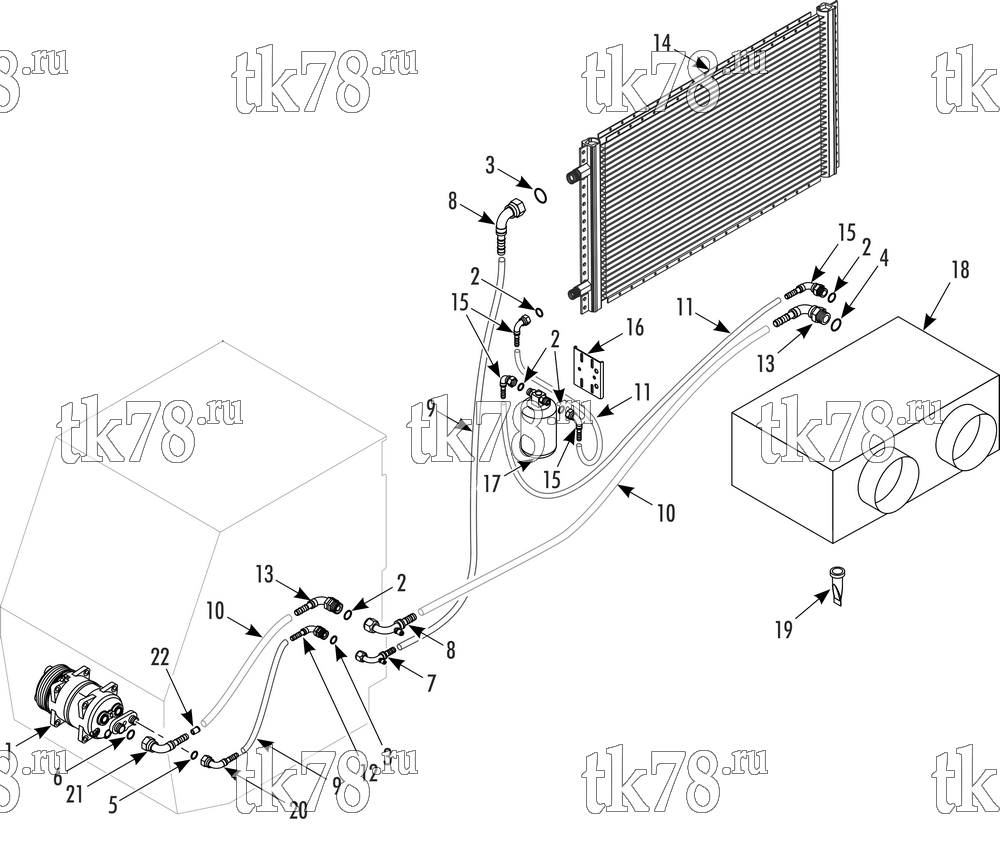

Установкa Thermo King схема REFRIGERATION GROUP – 212F9
Обновление от: 9/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1018 | COMPRESSOR (see 169C2, w/o manifold) | 1 | |
| 102-1004 | COMPRESSOR (see 169C2, w/ manifold) | 1 | ||
| 203-544 | OIL - compressor (8 oz) | A/R | ||
| 2 | 33-1015 | O-RING (#6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 3 | 33-566 | O-RING (#8) | 2 | |
| 4 | 33-2115 | O-RING (#10) | 3 | |
| 5 | 33-2350 | O-RING (#8) | 1 | |
| 6 | 33-672 | O-RING (#10) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 7 | 51-2406 | FITTING - 90 deg (#8, see 165D6) | 1 | |
| 8 | 51-2469 | FITTING - 90 deg (#10, see 165D6) | 2 | |
| 9 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 10 | 67-1710 | HOSE - refrigeration (#10) | A/R | |
| 11 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 12 | 51-2426 | FITTING - tube-O (90 deg, #8, see 165D6) | 1 | |
| 13 | 51-2428 | FITTING - tube-O (90 deg, #10, see 165D6) | 1 | |
| 14 | 67-2494 | COIL - condenser (see 209G8) | 1 | |
| 15 | 51-2393 | ELBOW - 90 deg (#6) | 4 | |
| 16 | 92-5028 | BRACKET - dehydrator | 1 | |
| 17 | 61-3316 | DEHYDRATOR (with switch) | 1 | |
| 10-61-3316 | Дегидратор (с датчиком) | 18 640 ₽ |
|
|
| 10-61-3316 WOS | Дегидратор (без датчика) | 12 740 ₽ |
|
|
| 41-7020 | SWITCH - binary switch | 1 | ||
| 10-41-7020 | Переключатель | 10 790 ₽ |
|
|
| 18 | NSS | EVAPORATOR | 1 | |
| 19 | 92-5064 | VALVE - drain | 2 | |
| 55-2069 | CLAMP - valve | 2 | ||
| 20 | 51-2419 | FITTING - tube-O (45 deg, #8) | 2 | |
| 21 | 51-2421 | FITTING - 90 deg (#10) | 1 | |
| 22 | 61-3505 | RESTRICTOR - suction line | 1 |
