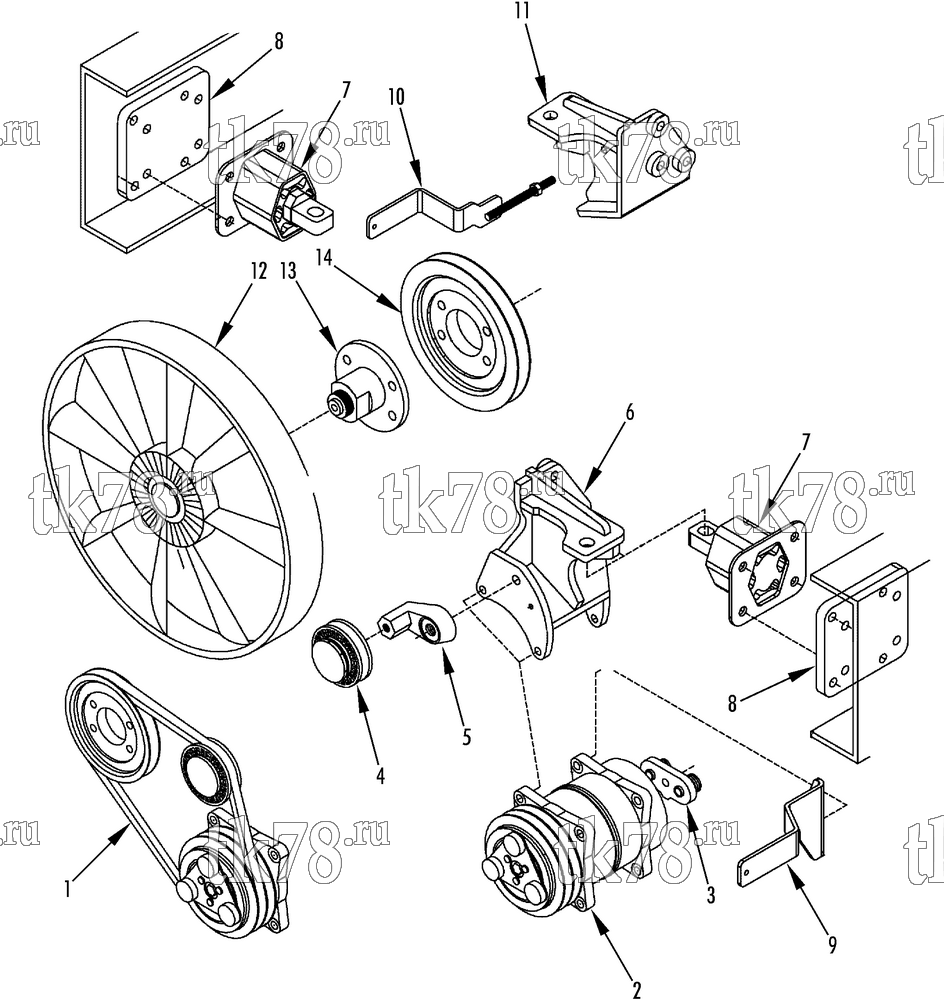

Установкa Thermo King схема DRIVE KIT (DAF LF 55,12140419) – 212B4
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-146 | BELT - compressor | 1 | |
| 2 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1391 | SCREW - compressor | 4 | ||
| 108-1540 | FLATWASHER | 4 | ||
| 108-1517 | NUT | 4 | ||
| 3 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 4 | 108-385 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - idler pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 5 | 108-871 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 6 | 108-517 | SUPPORT - compressor | 1 | |
| 108-2266 | SCREW - support | 3 | ||
| 7 | 108-1332 | MOUNT - vibration (silentblock) | 2 | |
| 108-2267 | SCREW - mount to support (M16 x 60) | 2 | ||
| 108-1555 | FLATWASHER | 2 | ||
| 108-1556 | LOCKWASHER | 2 | ||
| 108-1525 | NUT | 2 | ||
| 108-2265 | SCREW - mount to frame (M12 x 20) | 8 | ||
| 108-1546 | FLATWASHER | 8 | ||
| 8 | 108-751 | PLATE - mount | 2 | |
| 108-2265 | SCREW - plate | 8 | ||
| 9 | 108-717 | SUPPORT | 1 | |
| 108-1364 | SCREW - support | 2 | ||
| 108-1539 | LOCKWASHER | 2 | ||
| 10 | 108-740 | SUPPORT | 1 | |
| 108-1515 | NUT | 2 | ||
| 108-1534 | FLATWASHER | 2 | ||
| 11 | 108-560 | SUPPORT - engine | 1 | |
| 108-2266 | SCREW - support | 3 | ||
| 12 | NSS | FAN - engine (use original) | 1 | |
| 13 | NSS | SPACER - fan (use original) | 1 | |
| 108-2264 | SCREW - spacer | 4 | ||
| 108-1545 | LOCKWASHER | 4 | ||
| 14 | 108-367 | PULLEY - crankshaft | 1 |
