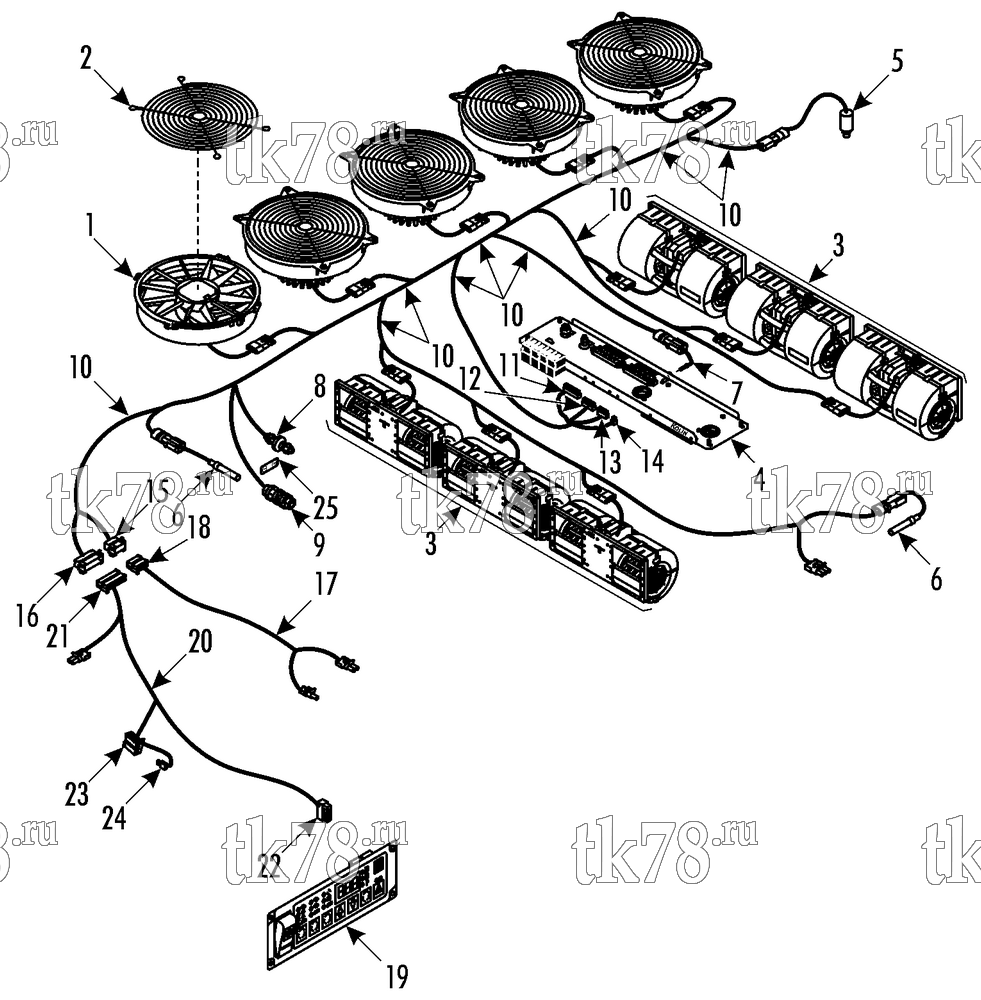

Установкa Thermo King схема ELECTRICAL COMPONENTS (IntelligAIRE I, 099912, 099914) – 211F2
Обновление от: 1/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1460 | FAN (4 for 099912; 5 for 099914) | A/R | |
| 2 | 98-5425 | GUARD - fan (4 for 099912; 5 for 099914) | A/R | |
| 55-3121 | SCREW - guard & fan (16 for 099912; 20 for 099914) | A/R | ||
| 55-1800 | LOCKWASHER (16 for 099912; 20 for 099914) | A/R | ||
| 55-2086 | FLATWASHER (64 for 099912; 80 for 099914) | A/R | ||
| 55-7373 | NUT - captive (16 for 099912; 20 for 099914) | A/R | ||
| 3 | 78-1461 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 4 | NSS | CONTROL PANEL (see 211F7) | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 41-7086 | SENSOR - temperature | 2 | |
| 7 | 41-7706 | SENSOR - temperature | 1 | |
| 8 | 55-9367 | STUD - terminal | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 55-9191 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 10 | 41-7292 | HARNESS - city (for connectors see 115D14) | 1 | |
| 11 | 41-656 | CONNECTOR (24 term) | 1 | |
| 12 | 41-650 | CONNECTOR (18 term) | 1 | |
| 13 | 41-661 | CONNECTOR (14 term) | 1 | |
| 14 | 41-654 | CONNECTOR (4 term) | 1 | |
| 15 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 16 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 17 | 41-4508 | HARNESS - unit to power pack (for connectors see 115D14) | 1 | |
| 18 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 19 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 20 | 41-4048 | HARNESS - driver panel (for connectors see 115D14) | 1 | |
| 21 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 22 | 41-661 | CONNECTOR (14 term) | 1 | |
| 23 | 41-1508 | SOCKET - special switch | 1 | |
| 24 | 41-1507 | CONNECTOR (2 term) | 1 | |
| 25 | 91-7509 | NAMEPLATE - Positive/Negative | 1 |
