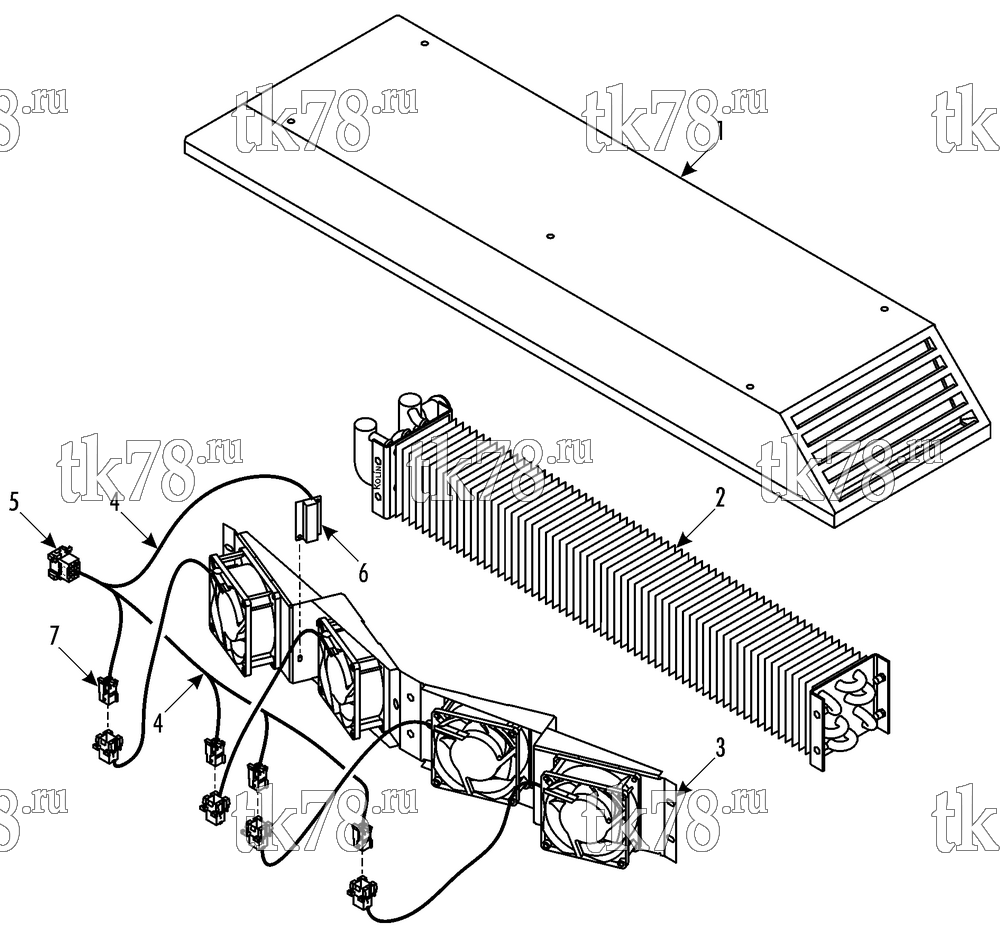

Установкa Thermo King схема UNIT GROUP – 210G1
Обновление от: 2/13/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BASE (see 210G2) | 1 | |
| 2 | NSS | HEATER (see 210G3) | 1 | |
| 3 | NSS | FAN (see 210G4) | 1 | |
| 4 | 41-7203 | HARNESS | 1 | |
| 5 | 41-3839 | CONNECTOR (8-pin, male) | 1 | |
| 6 | 41-7204 | RESISTOR | 1 | |
| 55-3010 | RIVET - resistor to bracket | 2 | ||
| 7 | 41-2769 | CONNECTOR (4-pin, female) | 4 |
