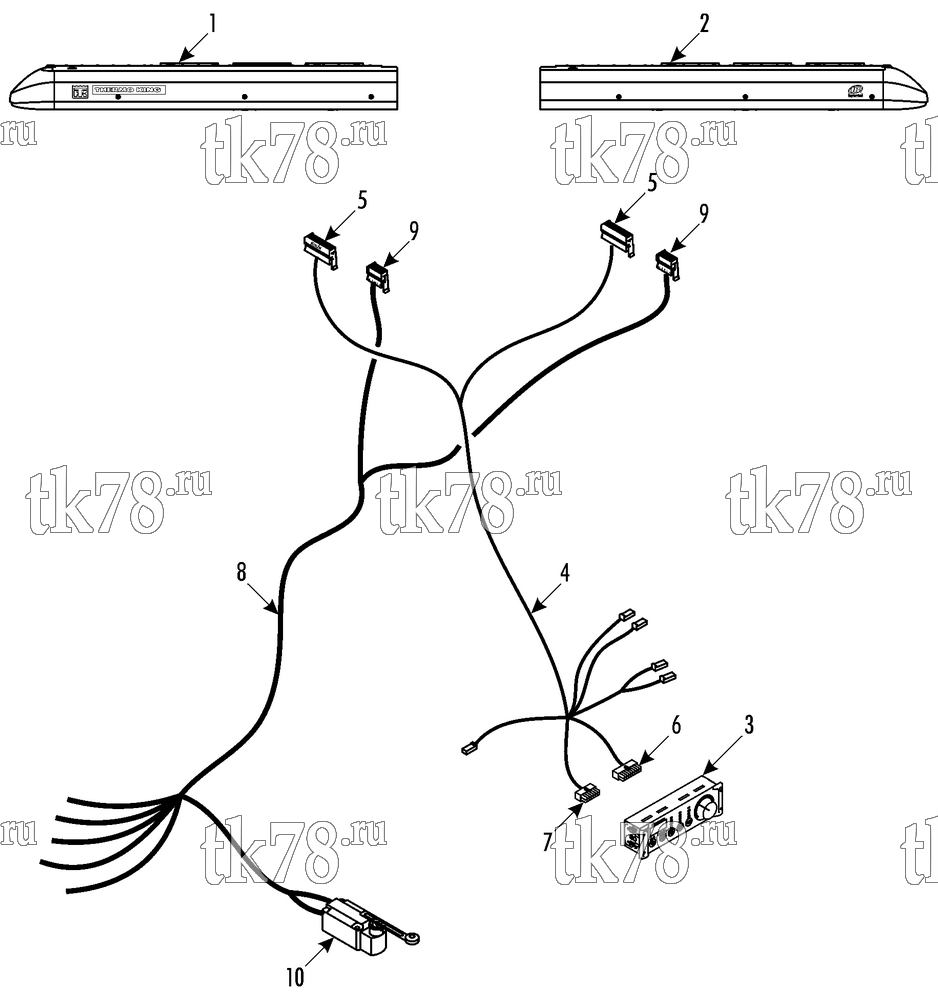

Установкa Thermo King схема ELECTRICAL COMPONENTS (OUTSIDE) – 210F1
Обновление от: 2/3/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MASTER UNIT | 1 | |
| 2 | NSS | SLAVE UNIT | 1 | |
| 3 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 4 | 41-7195 | HARNESS - control panel to driver panel (14 m) | 1 | |
| 5 | 41-3856 | CONNECTOR - female (18-pin) | 2 | |
| 6 | 41-650 | CONNECTOR - in-line (18 term) | 1 | |
| 7 | 41-661 | CONNECTOR - in-line (14 term) | 1 | |
| 8 | 41-7196 | HARNESS - power pack | 1 | |
| 9 | 41-3855 | CONNECTOR - female (10-pin) | 2 | |
| 10 | 41-4575 | SWITCH - door | 1 |
