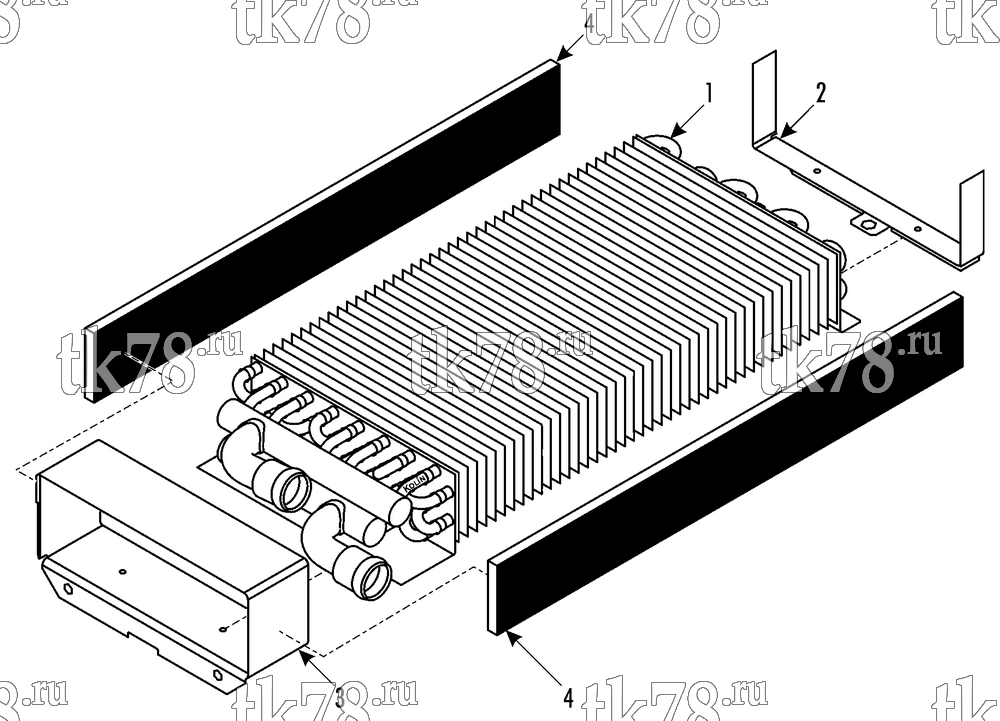

Установкa Thermo King схема HEATER – 210F0
Обновление от: 2/13/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2200 | COIL - heater, left configuration | 1 | |
| 67-2201 | COIL - heater, right configuration | 1 | ||
| 2 | 92-5601 | BRACKET | 1 | |
| 3 | 92-5602 | BRACKET | 1 | |
| 55-2715 | RIVET - bracket to heater | 4 | ||
| 55-7340 | SCREW - bracket to base | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 51-190 | NUT - bracket to base | 4 | ||
| 51-290 | NUT - bracket to blower | 2 | ||
| 4 | 92-5603 | INSULATION | 2 |
