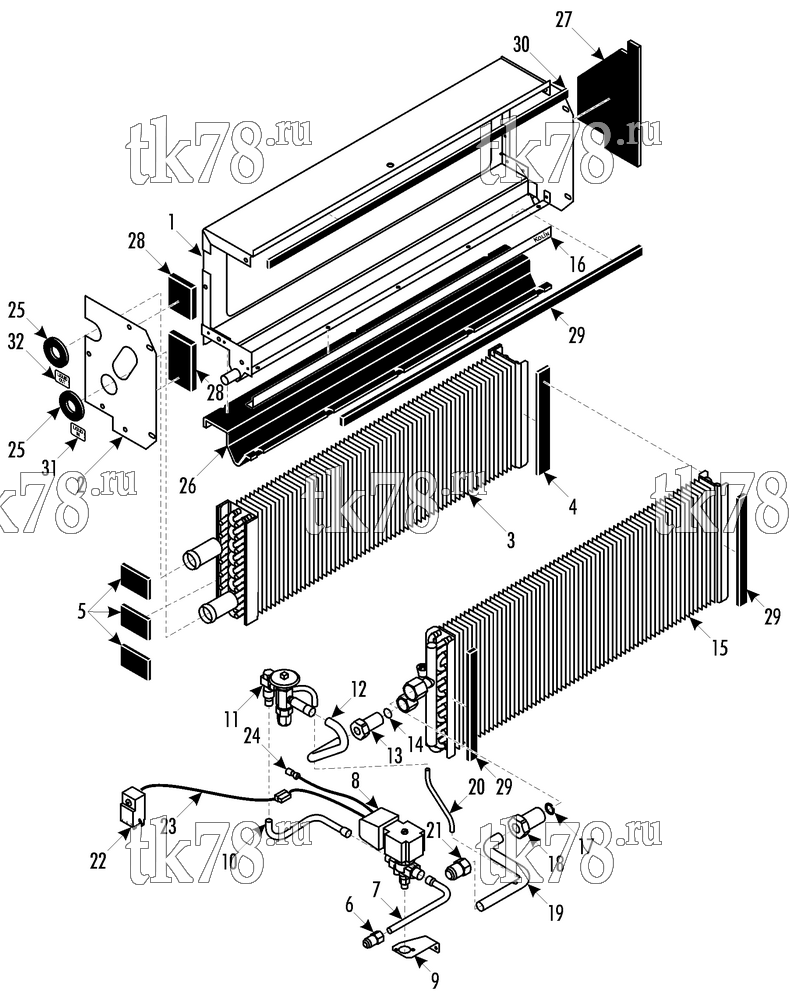

Установкa Thermo King схема EVAPORATOR/HEATER MODULE – 210E4
Обновление от: 2/1/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7438 | BASE - weldment | 1 | |
| 55-7340 | SCREW - base | 3 | ||
| 55-7171 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 2 | 92-5586 | PLATE | 1 | |
| 55-7169 | SCREW - plate & base | 9 | ||
| 55-7171 | LOCKWASHER | 9 | ||
| 55-7089 | FLATWASHER | 9 | ||
| 51-1457 | NUT - self-clinching | 9 | ||
| 3 | 67-2198 | HEATER | 1 | |
| 4 | 92-3402 | STRIP - polyester | A/R | |
| 5 | 92-3175 | STRIP - neoprene | A/R | |
| 6 | 61-3422 | ADAPTER | 1 | |
| 7 | 61-3518 | TUBE | 1 | |
| 8 | 61-3420 | VALVE - solenoid | 1 | |
| 41-7187 | COIL - solenoid valve | 1 | ||
| 55-7663 | SCREW - valve | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 9 | 92-5587 | BRACKET - valve | 1 | |
| 55-7034 | NUT | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 10 | 61-3519 | TUBE | 1 | |
| 11 | 61-3520 | VALVE - expansion | 1 | |
| 12 | 61-3521 | TUBE | 1 | |
| 13 | 55-6779 | ADAPTER | 1 | |
| 14 | 33-2849 | O-RING | 1 | |
| 15 | 67-2199 | EVAPORATOR - assy | 1 | |
| 16 | 98-7439 | PLATE | 1 | |
| 51-1270 | STUD - plate, self-clinching | 5 | ||
| 55-7089 | FLATWASHER | 5 | ||
| 55-7034 | NUT | 5 | ||
| 17 | 33-1223 | O-RING | 1 | |
| 18 | 55-6786 | ADAPTER | 1 | |
| 19 | 61-3522 | TUBE | 1 | |
| 20 | 61-3523 | TUBE | 1 | |
| 21 | 61-3524 | ADAPTER | 1 | |
| 22 | 41-5080 | FREEZESTAT | 1 | |
| 23 | 41-7191 | HARNESS | 1 | |
| 41-4886 | CONNECTOR | 1 | ||
| 24 | 41-5243 | CONNECTOR - terminal | 1 | |
| 44-9695 | TERMINAL - fingrip | 1 | ||
| 25 | 33-4260 | INSULATION | 2 | |
| 26 | 92-5588 | INSULATION - bottom | 1 | |
| 27 | 92-5589 | INSULATION | 1 | |
| 28 | 33-3531 | STRIP - neoprene | A/R | |
| 29 | 33-3931 | STRIP - polyester | A/R | |
| 30 | 33-3864 | STRIP - polyester | A/R | |
| 31 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 32 | 91-7550 | NAMEPLATE - Liquid Out | 1 |
