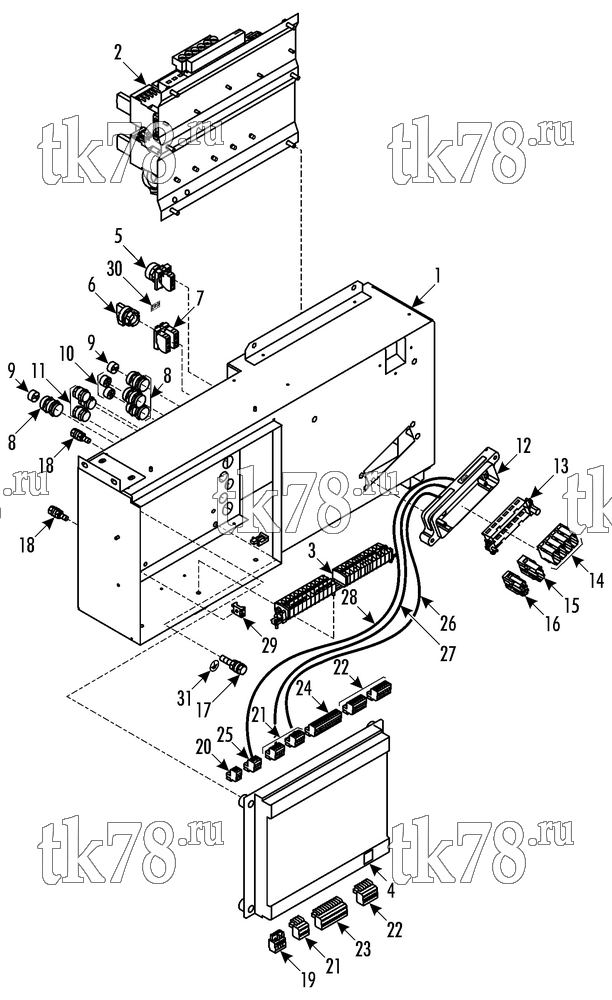

Установкa Thermo King схема ELECTRO BOX – 210D9
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX PANELS (see 210C2) | 1 | |
| 2 | NSS | ELECTRO BOX BOARD (see 210D0) | 1 | |
| 3 | NSS | ELECTRO BOX TERMINAL (see 210E1) | 1 | |
| 4 | 41-7179 | CONTROLLER | 1 | |
| 55-7700 | SCREW - controller | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 5 | 41-4691 | LIGHT - signal, green | 1 | |
| 6 | 41-4687 | HEAD - control | 1 | |
| 7 | 41-4689 | SWITCH - assembly | 1 | |
| 8 | 51-1400 | BUSHING - cable | 4 | |
| 55-9711 | LOCKNUT - bushing | 4 | ||
| 9 | 41-6682 | INSERT - sealing | 2 | |
| 10 | 41-6671 | INSERT - sealing | 2 | |
| 11 | 55-9554 | BUSHING - cable | 3 | |
| 51-843 | WASHER - sealing | 3 | ||
| 55-9558 | LOCKNUT - bushing | 3 | ||
| 12 | 41-6683 | HOUSING - connector | 1 | |
| 55-9858 | SCREW - housing | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 13 | 41-6009 | FRAME - fixing | 1 | |
| 14 | 41-5300 | COVER - connector, male | 4 | |
| 15 | 41-5505 | COVER - connector, male | 1 | |
| 16 | 41-5926 | COVER - connector, male | 1 | |
| 17 | 55-8137 | SCREW - ground | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 18 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 19 | 41-3935 | CONNECTOR - 4-pin | 1 | |
| 20 | 41-3928 | CONNECTOR - wago | 1 | |
| 21 | 41-3929 | CONNECTOR - wago | 3 | |
| 22 | 41-3930 | CONNECTOR - wago | 3 | |
| 23 | 41-3932 | CONNECTOR - wago | 1 | |
| 24 | 41-3933 | CONNECTOR - wago | 1 | |
| 25 | 41-3934 | CONNECTOR - wago | 1 | |
| 26 | 41-7180 | CABLE - can bus 1 | 1 | |
| 27 | 41-7181 | CABLE - can bus 2 | 1 | |
| 28 | 41-7182 | CABLE - communications, RS232 | 1 | |
| 29 | 99-3281 | MOUNT - bandwrap | 5 | |
| 51-256 | RIVET - mount | 5 | ||
| 55-2330 | BANDWRAP | 5 | ||
| 30 | 92-4981 | LABEL - Auto/Off/Test | 1 | |
| 31 | 92-783 | LABEL - ground | 1 |
