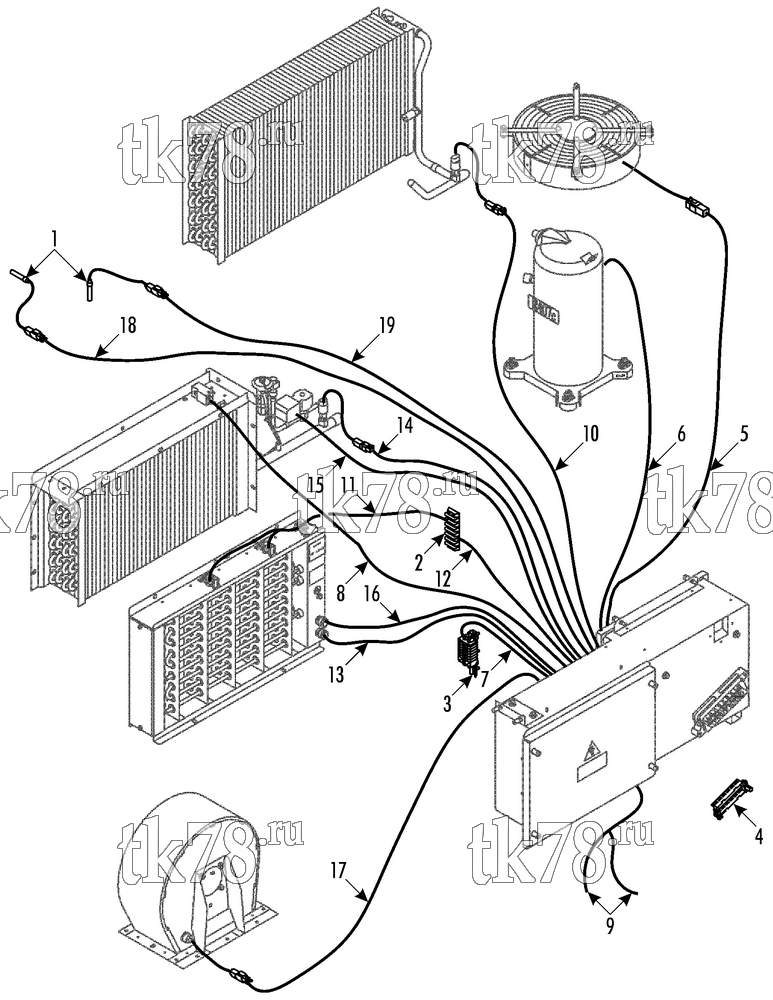

Установкa Thermo King схема ELECTRICAL COMPONENTS – 210D7
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-974 | KIT - temperature sensor | 2 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 2 | 44-5350 | BOARD - 6 term | 1 | |
| 55-7696 | SCREW - board | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 51-1181 | NUT - captive, closed (M4) | 2 | ||
| 3 | NSS | TERMINAL (see 210B9) | 1 | |
| 4 | NSS | CONNECTOR KIT (see 210D8) | 1 | |
| 5 | 41-7162 | CABLE - CFM (for connectors see 112D9) | 1 | |
| 6 | 41-7163 | CABLE - supply, compressor | 1 | |
| 7 | 41-7164 | CABLE - EFM supply | 1 | |
| 8 | 41-7165 | CABLE - freezestat | 1 | |
| 9 | 41-7166 | WIRES - grounding | 1 | |
| 10 | 41-7167 | CABLE - hp switch (for connectors see 112D9) | 1 | |
| 11 | 41-7168 | CABLE - htr temp switch outlet | 1 | |
| 12 | 41-7169 | CABLE - htr temp switch | 1 | |
| 13 | 41-7170 | CABLE - supply, htr2 | 1 | |
| 14 | 41-7171 | CABLE - lp switch (for connectors see 112D9) | 1 | |
| 15 | 41-7172 | CABLE - solenoid | 1 | |
| 16 | 41-7173 | CABLE - supply, htr1 | 1 | |
| 17 | 41-7174 | CABLE - temperature sensor (DAS, for connectors see 112D9) | 1 | |
| 18 | 41-7175 | CABLE - temperature sensor (FAS, for connectors see 112D9) | 1 | |
| 19 | 41-7176 | CABLE - temperature sensor (RAS, for connectors see 112D9) | 1 |
