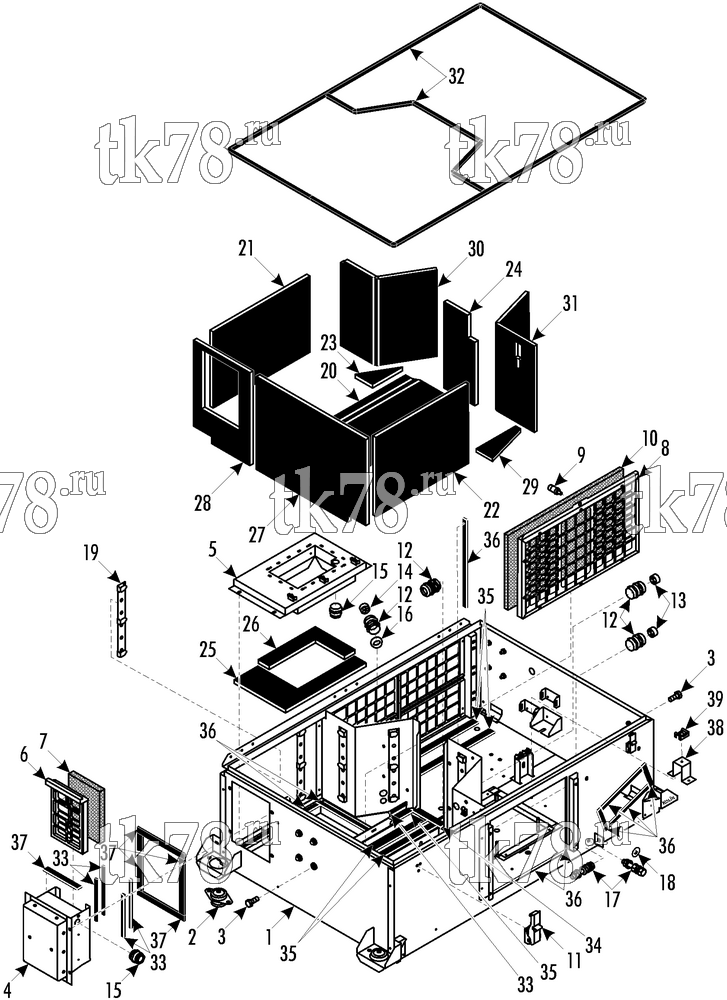

Установкa Thermo King схема FRAME COMPONENTS – 210B4
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7411 | FRAME | 1 | |
| 2 | 11-9626 | ISOLATOR | 4 | |
| 55-6993 | SCREW - isolator | 8 | ||
| 51-953 | FLATWASHER | 16 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 3 | 55-7341 | SCREW - lifting | 12 | |
| 55-7342 | LOCKWASHER | 12 | ||
| 55-7085 | FLATWASHER | 3 | ||
| 51-1296 | WASHER | 4 | ||
| 4 | 92-4815 | ELIMINATOR - water | 1 | |
| 55-6994 | SCREW - eliminator | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 5 | 92-4816 | CHANNEL - return air | 1 | |
| 55-7035 | SCREW - channel | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 6 | 92-4817 | FRAME - filter | 1 | |
| 7 | 92-4818 | FILTER | 1 | |
| 8 | 92-4819 | FRAME - filter | 1 | |
| 9 | 55-9758 | SCREW - captive | 1 | |
| 10 | 92-4820 | FILTER | 1 | |
| 11 | 92-555 | LATCH - downunder | 2 | |
| 55-7663 | SCREW - latch | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 51-1181 | NUT - captive, closed | 6 | ||
| 12 | 51-1400 | BUSHING - cable | 4 | |
| 55-9711 | LOCKNUT - bushing | 4 | ||
| 13 | 41-6682 | SEAL - bushing | 2 | |
| 14 | 41-6671 | SEAL - bushing | 1 | |
| 15 | 55-9992 | BUSHING - cable | 2 | |
| 55-9998 | LOCKNUT - bushing | 2 | ||
| 16 | 51-818 | PLUG | 1 | |
| 51-843 | WASHER - sealing | 1 | ||
| 51-819 | NUT - plug | 1 | ||
| 17 | 55-8137 | SCREW - ground | 2 | |
| 55-7085 | FLATWASHER | 4 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 18 | 92-783 | LABEL - ground | 1 | |
| 19 | 92-3375 | BRACKET - insulation | 12 | |
| 20 | 92-4828 | INSULATION | 1 | |
| 21 | 92-4822 | INSULATION | 1 | |
| 22 | 92-4823 | INSULATION | 1 | |
| 23 | 92-4824 | INSULATION | 1 | |
| 24 | 92-4825 | INSULATION | 1 | |
| 25 | 92-4826 | INSULATION | 1 | |
| 26 | 92-4827 | INSULATION | 1 | |
| 27 | 92-5130 | INSULATION | 1 | |
| 28 | 92-4829 | INSULATION | 1 | |
| 29 | 92-4830 | INSULATION | 1 | |
| 30 | 92-4832 | INSULATION | 1 | |
| 31 | 92-5394 | INSULATION | 1 | |
| 32 | 92-146 | EXTRUSION - rubber | A/R | |
| 33 | 92-3279 | EXTRUSION - rubber | A/R | |
| 34 | 92-4833 | STRIP - neoprene | A/R | |
| 35 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 36 | 33-3540 | STRIP - neoprene | A/R | |
| 37 | 33-2975 | STRIP - neoprene | A/R | |
| 38 | 92-5126 | BRACKET - mount | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 39 | 99-3281 | MOUNT - bandwrap | 13 | |
| 55-5130 | RIVET - mount | 13 | ||
| 55-2330 | BANDWRAP | 15 |
