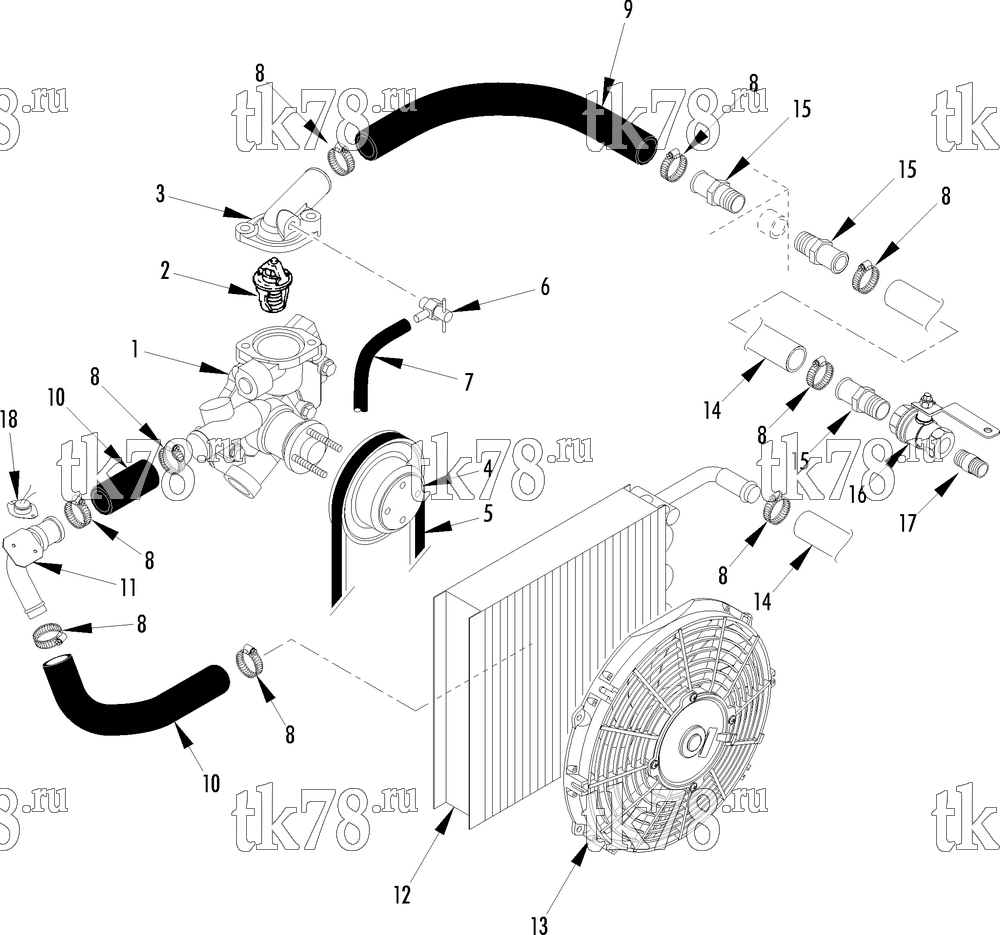

Установкa Thermo King схема COOLING SYSTEM (TIER 1 ENGINE) – 208F3
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 813-506 | PUMP - coolant (see 208E2) | 1 | |
| 2 | 13-551 | THERMOSTAT (160 F / 71 C) | 1 | |
| 20-13-551 | Термостат | 5 910 ₽ |
|
|
| 33-1744 | O-RING - thermostat | 1 | ||
|
10-33-1744 | Кольцо термостата, Yanmar 249 / 366 / 374, KD/MD-II / MD/TS-200-300 | 820 ₽ |
|
| 3 | 13-418 | COVER - thermostat | 1 | |
| 4 | 77-2847 | PULLEY - water pump | 1 | |
| 5 | 78-1012 | BELT - water pump | 1 | |
| 10-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 3 720 ₽ |
|
|
|
PP-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 1 320 ₽ |
|
| 6 | 13-478 | VALVE - bleed | 1 | |
| 7 | 99-1655 | HOSE - bleed | A/R | |
| 8 | 55-2818 | CLAMP - hose | 6 | |
| 9 | 13-613 | HOSE - thermostat out | 1 | |
| 10 | 13-788 | HOSE - water | 1 | |
| 11 | 92-5025 | TUBE - hose to radiator | 1 | |
| 12 | 67-2146 | COIL - precool | 1 | |
| 55-145 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 13 | 78-1503 | FAN - precool coil (12V, 9 inch, blow) | 1 | |
| 14 | 98-935 | HOSE - unit to tractor | 1 | |
| 15 | 51-1338 | ADAPTER - hose | 4 | |
| 16 | 13-961 | VALVE - ball | 2 | |
| 17 | 55-6360 | NIPPLE | 2 | |
| 18 | 44-6018 | SWITCH - temperature | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
