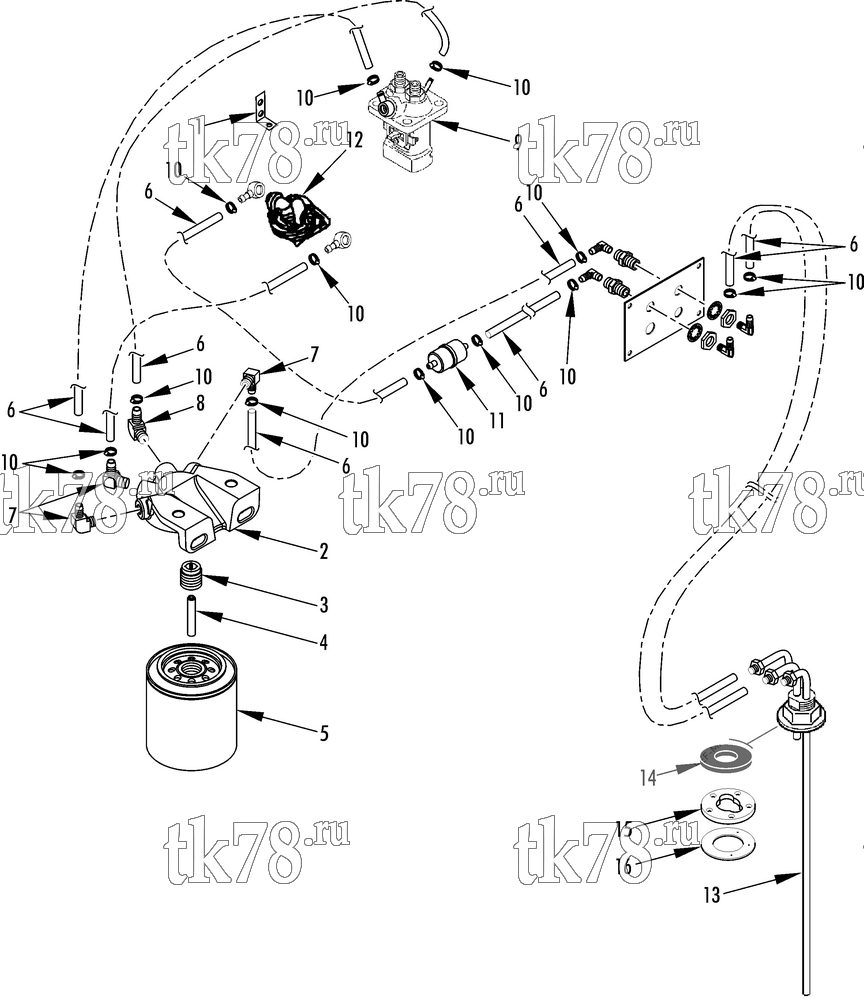

Установкa Thermo King схема FUEL FILTER GROUP (TIER 1 ENGINE) – 208E9
Обновление от: 6/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5016 | BRACKET - fuel filter | 1 | |
| 2 | 11-9015 | HEAD - filter | 1 | |
| 55-129 | SCREW - head | 2 | ||
| 55-402 | FLATWASHER | 4 | ||
| 55-5078 | NUT | 2 | ||
| 3 | 11-9017 | SPUD - filter | 1 | |
| 4 | 11-9016 | SHAFT - water bleed | 1 | |
| 5 | 11-9342 | FILTER - fuel | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 610 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 590 ₽ |
|
|
PP-11-9342 | Фильтр топливный, SLX/SLXe | 350 ₽ |
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 6 | 98-844 | HOSE (5/16, cut to length) | A/R | |
| 7 | 51-1226 | ELBOW (1/8 mpt) | 1 | |
| 8 | 51-1225 | ELBOW (1/4 mpt) | 3 | |
| 203-392 | SEALER - thread | A/R | ||
| 9 | 11-6265 | PUMP - fuel injection | 1 | |
| 10 | 55-7815 | CLAMP - fuel | A/R | |
| 11 | 13-649 | FILTER - fuel (in-line) | 1 | |
|
10-13-649 | Топливный фильтр, In-Line, Tripac | 2 900 ₽ |
|
| 12 | 13-516 | PUMP - fuel (see 208D6) | 1 | |
| 20-13-516 | Топливный насос, TRI-Pac | 24 300 ₽ |
|
|
| 13 | 13-489 | TUBE - fuel pick-up | 1 | |
| 14 | 33-4402 | GASKET - fuel pickup (rubber) | 1 | |
| 15 | 10-379 | KIT - fuel tank access cover | 1 | |
| 16 | 33-4263 | GASKET - cover | 1 |
