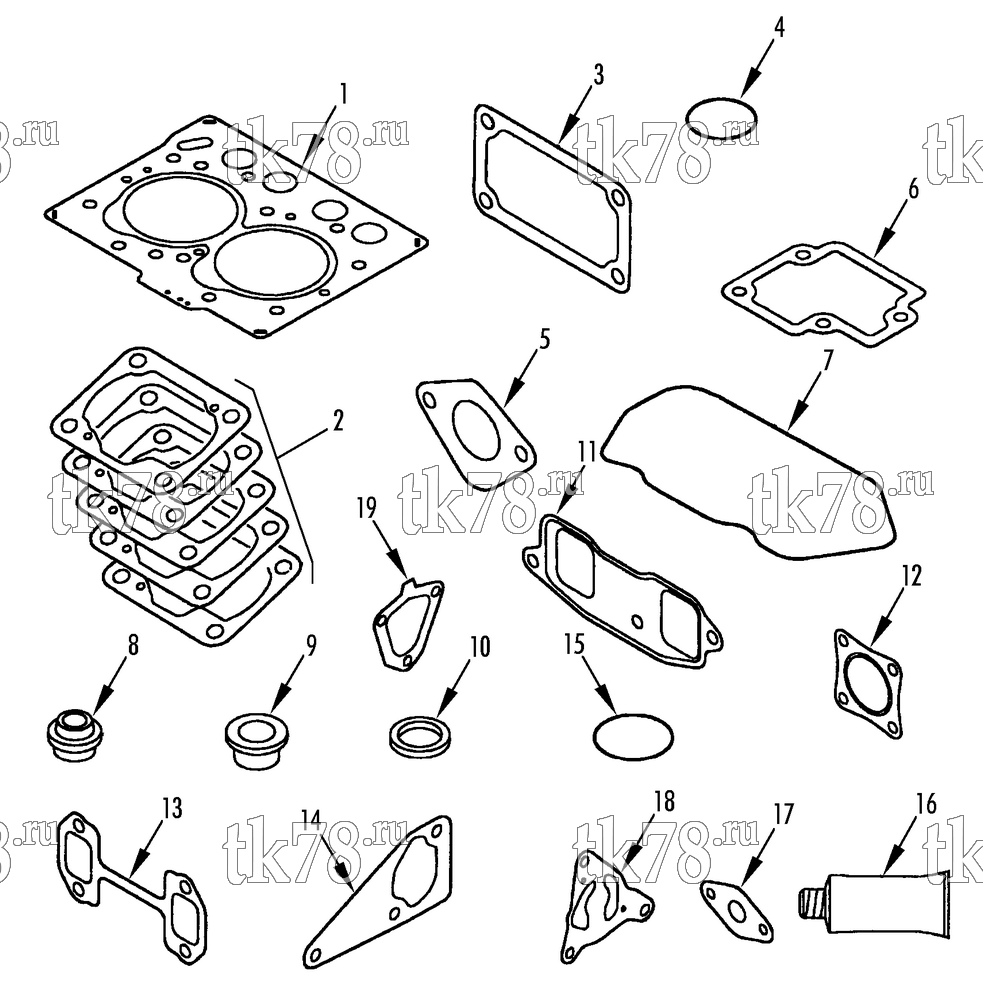

Установкa Thermo King схема OVERHAUL GASKET SET (TNE68C ETR) – 208E6
Обновление от: 7/20/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 30-277 | GASKET SET | 1 | ||
| 20-30-277 | Набор прокладок, TRI-Pac Tier 1 | 52 260 ₽ |
|
|
| 1 | 33-2831 | GASKET - cylinder head | 1 | |
|
10-33-2831 | Прокладка ГБЦ, Yanmar 249 | 10 990 ₽ |
|
| 2 | 11-6250 | SHIM PACK - injection pump | 1 | |
| 3 | 33-1754 | GASKET - case cover | 1 | |
| 4 | 33-1954 | O-RING - oil filler | 2 | |
| 5 | 33-1542 | GASKET - feed pump | 1 | |
| 6 | 33-1795 | GASKET - plate | 1 | |
| 7 | 33-2835 | GASKET - valve cover | 1 | |
| 8 | 33-1732 | SEAL - valve stem | 4 | |
|
10-33-1732 | Маслосъемный колпачок, Yanmar 244 / 249 / 366 / 374 | 1 490 ₽ |
|
| 9 | 11-6045 | PROTECTOR - injection nozzle | 2 | |
|
10-11-6045 | Protector, Nozzle, Yanmar 366, 388, 395 | 1 430 ₽ |
|
| 10 | 33-1733 | GASKET - nozzle | 4 | |
| 55-5845 | WASHER - seal (#6) | 1 | ||
| 55-4622 | WASHER - seal (#8) | 2 | ||
| 55-8620 | WASHER - seal (#12) | 2 | ||
| 33-2970 | WASHER - seal (#14) | 2 | ||
| 11 | 13-316 | GASKET - intake manifold | 1 | |
| 12 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 13 | 33-1798 | GASKET - exhaust manifold | 1 | |
| 14 | 33-1742 | GASKET - water pump | 1 | |
|
10-33-1742 | Прокладка водяной помпы, Yanmar 244 / 249 / 366 / 374 | 1 130 ₽ |
|
| 15 | 33-1744 | O-RING - thermostat | 1 | |
|
10-33-1744 | Кольцо термостата, Yanmar 249 / 366 / 374, KD/MD-II / MD/TS-200-300 | 820 ₽ |
|
| 33-3512 | O-RING | 4 | ||
| 33-2814 | O-RING | 1 | ||
| 33-4202 | O-RING | 1 | ||
| 16 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 17 | 33-1801 | GASKET - drain | 1 | |
| 18 | 33-1740 | GASKET - oil pump | 1 | |
| 10-33-1740 | Прокладка масляного насоса, Yanmar 366, 388 | 590 ₽ |
|
