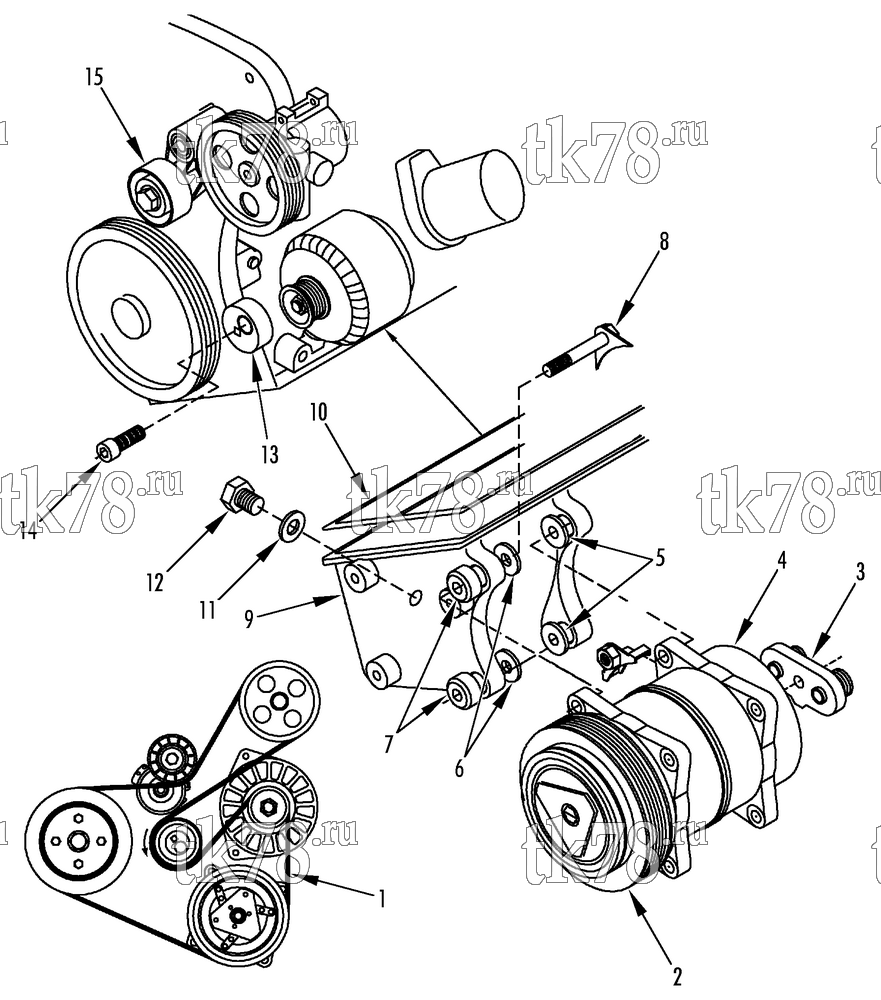

Установкa Thermo King схема DRIVE KIT (Citroen Jumpy, Peugeot Expert, 12140343) – 208B7
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-237 | BELT | 1 | |
| 2 | 108-1308 | CLUTCH - compressor (12V) | 1 | |
| 3 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 33-566 | O-RING | 2 | ||
| 4 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1398 | SCREW - compressor (M10 x 60) | 1 | ||
| 108-1401 | SCREW - compressor (M10 x 70) | 2 | ||
| 108-1517 | NUT | 3 | ||
| 5 | 108-1667 | SPACER | 2 | |
| 6 | 108-1668 | SPACER | 4 | |
| 7 | 108-1093 | SPACER | 2 | |
| 8 | 108-1259 | SCREW - compressor | 1 | |
| 108-1517 | NUT | 1 | ||
| 9 | 108-493 | BRACKET - compressor | 1 | |
| 108-1359 | SCREW - bracket (M7 x 20) | 19 | ||
| 108-1486 | SCREW - bracket (M7 x 50) | 4 | ||
| 108-1532 | FLATWASHER | 19 | ||
| 108-1533 | LOCKWASHER | 23 | ||
| 10 | 108-1282 | GASKET - oil pan | 1 | |
| 11 | 108-1190 | WASHER - oil plug | 1 | |
| 12 | 108-1257 | PLUG - oil | 1 | |
| 13 | 108-901 | IDLER - eccentric | 1 | |
| 14 | 108-1500 | SCREW - idler | 1 | |
| 15 | 108-926 | PULLEY - back idler | 1 |
