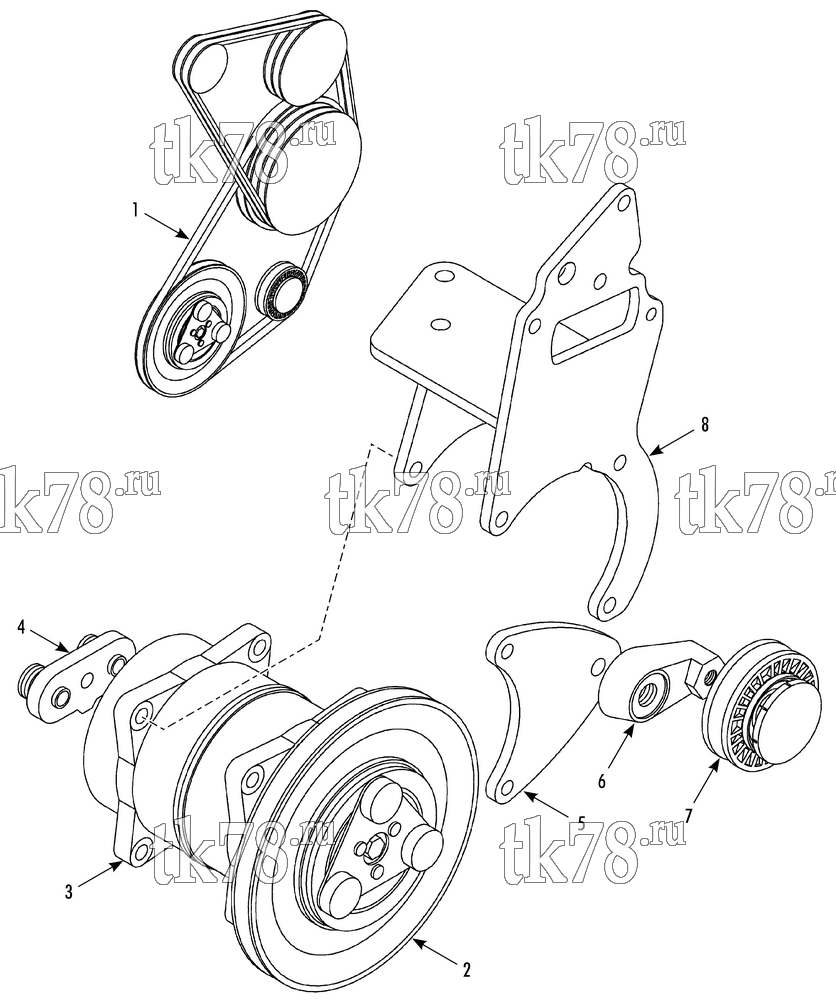

Установкa Thermo King схема DRIVE KIT (Renault Midlum 150/180 dCi, 12140424) – 208B1
Обновление от: 12/10/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-165 | BELT | 1 | |
| 2 | 108-2615 | CLUTCH - compressor (24V, 200 dia) | 1 | |
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 4 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 108-1391 | SCREW - compressor (M10 x 40) | 3 | ||
| 108-1393 | SCREW - compressor (M10 x 45) | 2 | ||
| 108-1517 | NUT | 5 | ||
| 5 | 108-657 | SUPPORT - idler (eccentric) | 1 | |
| 6 | 108-922 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 7 | 108-385 | PULLEY - idler (80 mm) | 1 | |
| 108-1364 | SCREW - pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 8 | 108-519 | BRACKET - compressor | 1 | |
| 108-1165 | SPACER (dia 10, 5 x 2) | 1 | ||
| 108-1386 | SCREW - bracket (M10 x 25) | 2 | ||
| 108-1407 | SCREW - bracket (M10 x 100) | 1 | ||
| 108-1545 | LOCKWASHER | 3 | ||
| 108-1165 | SPACER (dia 8, 5 x 2) | 1 | ||
| 108-1376 | SCREW - bracket (M8 x 90) | 1 | ||
| 108-1539 | LOCKWASHER (8 mm) | 2 |
