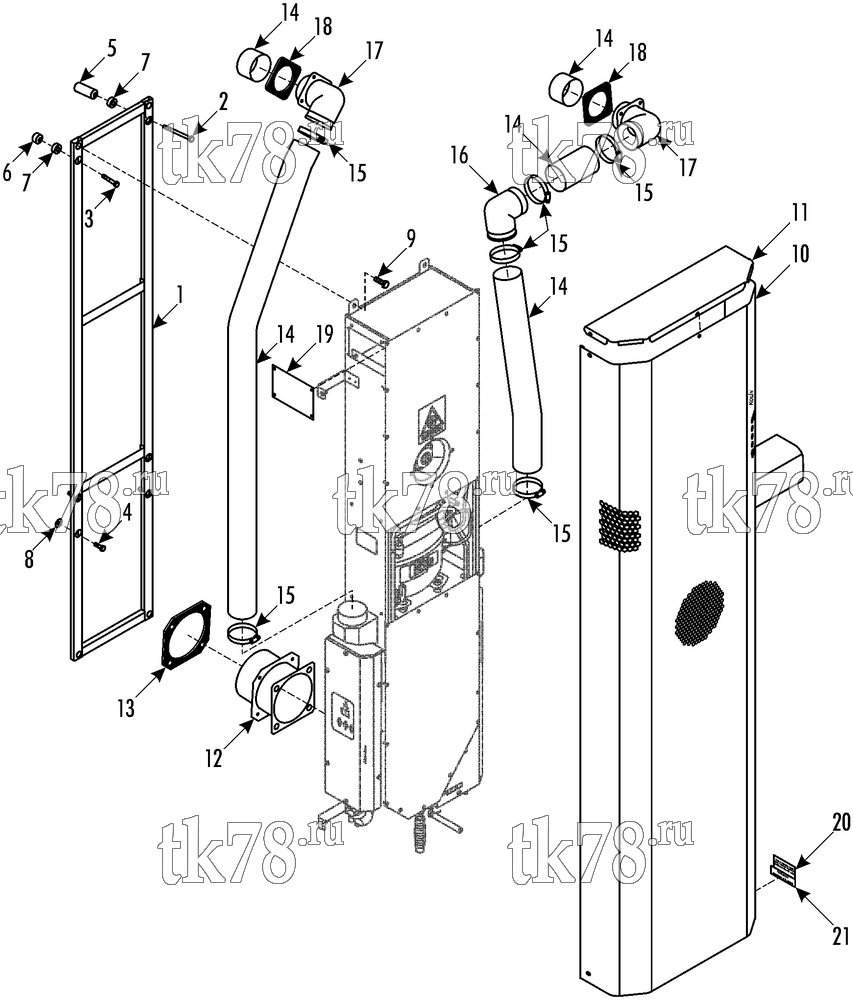

Установкa Thermo King схема KIT CAB OUTSIDE (800044) – 207H0
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7034 | LADDER | 1 | |
| 2 | 55-8636 | SCREW - ladder | 1 | |
| 3 | 55-7349 | SCREW - ladder | 1 | |
| 4 | 55-6993 | SCREW - ladder | 4 | |
| 55-7066 | LOCKWASHER | 6 | ||
| 55-6988 | FLATWASHER | 6 | ||
| 51-900 | NUT - captive | 6 | ||
| 5 | 92-4570 | SPACER | 1 | |
| 6 | 92-4571 | SPACER | 1 | |
| 7 | 92-4574 | SPACER | 2 | |
| 8 | 55-9485 | WASHER - fender | 4 | |
| 9 | 55-6993 | SCREW - CCU | 4 | |
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 51-900 | NUT - captive | 4 | ||
| 10 | 98-7026 | COVER - weld | 1 | |
| 11 | 98-6884 | COVER - top | 1 | |
| 51-886 | SCREW - covers | 7 | ||
| 51-290 | NUT - captive | 3 | ||
| 12 | 92-4555 | FLANGE - return air | 1 | |
| 55-7035 | SCREW - flange | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 51-311 | NUT - captive | 4 | ||
| 13 | 92-4537 | INSULATION - return air | 1 | |
| 14 | 61-3497 | TUBE - flexible, ducting | A/R | |
| 15 | 55-2688 | CLAMP | 6 | |
| 16 | 92-4560 | ELBOW | 1 | |
| 17 | 92-4561 | ELBOW | 2 | |
| 55-7035 | SCREW - elbow | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-6995 | FLATWASHER | 8 | ||
| 51-311 | NUT - captive | 8 | ||
| 18 | 92-4582 | INSULATION - duct air | 2 | |
| 19 | 92-4442 | LID | 1 | |
| 51-293 | SCREW - lid | 4 | ||
| 21 | 92-4539 | NAMEPLATE - Total Stop | 1 |
