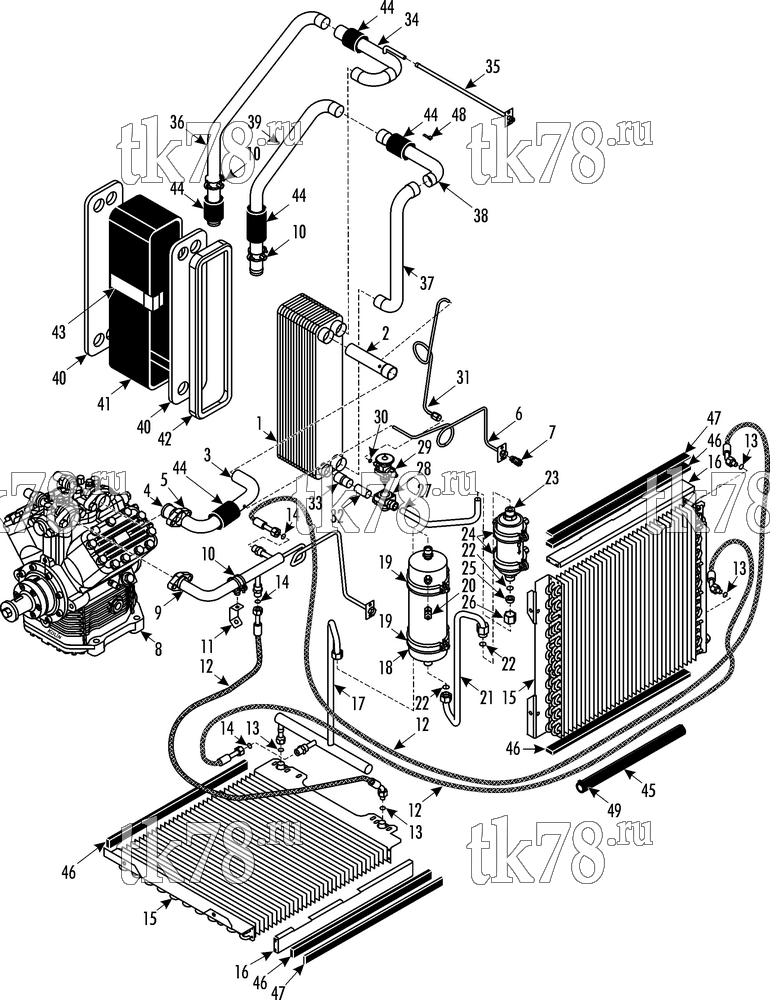

Установкa Thermo King схема COOLING & HEATING COMPONENTS – 207D6
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1914 | HEAT EXCHANGER | 1 | |
| 55-7006 | NUT - exchanger | 4 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 51-1327 | WASHER - nylon | 4 | ||
| 55-2221 | FLATWASHER | 2 | ||
| 2 | 61-3434 | TUBE | 1 | |
| 3 | 61-3435 | TUBE | 1 | |
| 4 | 61-3436 | ADAPTER | 1 | |
| 5 | 51-1332 | FLANGE | 1 | |
| 55-9496 | SCREW - flange | 2 | ||
| 6 | 61-3437 | TUBE | 1 | |
| 55-2715 | RIVET - tube | 2 | ||
| 7 | 61-1123 | PORT - service | 1 | |
| 8 | 102-869 | COMPRESSOR (see 207D8) | 1 | |
| 51-141 | SCREW - compressor | 4 | ||
| 55-7024 | FLATWASHER | 8 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 55-8471 | NUT | 4 | ||
| 9 | 61-3438 | TUBE | 1 | |
| 55-9371 | FLANGE | 1 | ||
| 55-2715 | RIVET - tube | 2 | ||
| 10 | 51-315 | CLAMP - tube | 3 | |
| 55-5022 | SCREW - clamp | 1 | ||
| 55-7343 | SCREW - clamp | 2 | ||
| 55-4614 | LOCKWASHER | 1 | ||
| 55-4621 | NUT | 2 | ||
| 11 | 92-5338 | BRACKET - clamp | 1 | |
| 12 | 61-3393 | HOSE | 3 | |
| 13 | 33-2350 | O-RING | 4 | |
| 14 | 33-2846 | O-RING | 3 | |
| 15 | 67-2172 | COIL - expanded | 2 | |
| 55-5955 | SCREW - coil | 14 | ||
| 51-1329 | SCREW - coil | 2 | ||
| 55-9353 | WASHER | 14 | ||
| 55-9190 | LOCKWASHER | 2 | ||
| 55-7373 | NUT - captive | 16 | ||
| 16 | 92-5223 | RIB | 2 | |
| 55-5130 | RIVET - rib | 8 | ||
| 17 | 61-3439 | TUBE | 1 | |
| 51-1356 | NUT (7/8) | 1 | ||
| 51-317 | NUT (3/4) | 1 | ||
| 18 | 67-2179 | TANK - receiver | 1 | |
| 19 | 51-1357 | CLAMP - tank | 2 | |
| 55-7828 | SCREW - clamp | 2 | ||
| 55-4621 | NUT | 2 | ||
| 20 | 61-3395 | VALVE - relief | 1 | |
| 21 | 61-3440 | TUBE - receiver tank to filter | 1 | |
| 22 | 33-672 | O-RING | 3 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 23 | 66-9352 | FILTER | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 24 | 51-1358 | CLAMP - filter | 2 | |
| 55-7026 | SCREW - clamp | 2 | ||
| 55-4621 | NUT | 2 | ||
| 25 | 55-6356 | SHOULDER | 1 | |
| 26 | 55-7675 | NUT - shoulder | 1 | |
| 27 | 61-3441 | TUBE | 1 | |
| 28 | 61-3442 | HOUSING - valve | 1 | |
| 29 | 61-3443 | VALVE - expansion | 1 | |
| 30 | 33-768 | GASKET - flare | 1 | |
| 31 | 61-3444 | TUBE | 1 | |
| 32 | 61-3445 | TUBE | 1 | |
| 33 | 55-1292 | BUSHING | 1 | |
| 34 | 61-3446 | TUBE | 1 | |
| 35 | 61-3447 | TUBE | 1 | |
| 61-1099 | VALVE - deaerate | 1 | ||
| 55-2715 | RIVET - tube | 2 | ||
| 36 | 61-3448 | TUBE | 1 | |
| 37 | 61-3449 | TUBE | 1 | |
| 38 | 61-3450 | TUBE | 1 | |
| 39 | 61-3451 | TUBE | 1 | |
| 40 | 33-3703 | COVER | 2 | |
| 41 | 33-3702 | INSULATION | 1 | |
| 42 | 33-3704 | COVER - latch | 1 | |
| 43 | 33-3705 | LATCH | 1 | |
| 44 | 92-2016 | TUBE - rubber | A/R | |
| 45 | 98-6733 | HOSE - pvc, protection | A/R | |
| 46 | 99-8562 | STRIP - neoprene | A/R | |
| 47 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 48 | 55-2330 | BANDWRAP - black | A/R | |
| 49 | 51-1228 | BANDWRAP - white | A/R |
