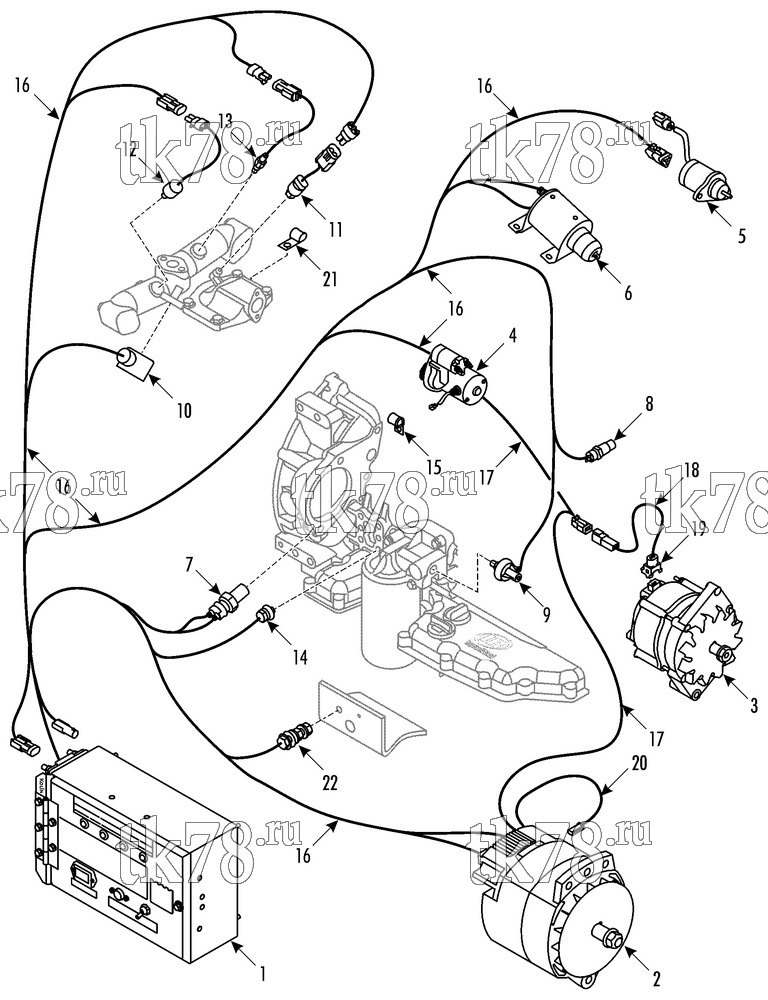

Установкa Thermo King схема ELECTRICAL COMPONENTS – 207B1
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - control (see 198C2) | 1 | |
| 2 | 41-3021 | ALTERNATOR (12V excitation, see 67D13) | 1 | |
| US-41-3021 | Генератор 150 А | 141 810 ₽ |
|
|
| 10-41-3021 | Генератор 24В, 150А | 92 860 ₽ |
|
|
| 3 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 4 | 45-2177 | STARTER (12V, see 204G3) | 1 | |
|
10-45-2177 | Стартер, Yanmar 486V, SLX/SLXe | 13 750 ₽ |
|
| 5 | 41-6515 | SOLENOID - fuel (12V, see 204G3) | 1 | |
|
10-41-6515 | Соленоид | 5 700 ₽ |
|
| 6 | 41-1566 | SOLENOID - throttle (12V, see 207A9) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 7 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 8 | 44-5027 | SWITCH - water temperature | 1 | |
| 9 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 10 | 44-6595 | COIL - unloading valve (12V, see 198D4) | 1 | |
| 11 | 44-6511 | SWITCH - lpco (se 198D4) | 1 | |
| 12 | 41-3581 | SWITCH - hpco (for R134a, see 198D4) | 1 | |
| 44-6373 | SWITCH - hpco (for R407C, see 198D4) | 1 | ||
| 13 | 41-3345 | SENSOR - thermistor probe | 1 | |
| 14 | 55-5969 | SCREW - ground (engine) | 1 | |
| 55-1173 | LOCKWASHER | 1 | ||
| 55-8536 | FLATWASHER | 1 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 15 | 55-2240 | CLAMP | 1 | |
| 55-5022 | SCREW - clamp | 1 | ||
| 55-7727 | LOCKWASHER | 1 | ||
| 16 | 41-6363 | HARNESS - outside (for connectors, see 112D9 & 115D14) | 1 | |
| 41-8129 | HARNESS - outside (Kit 701258) (for connectors, see 112D9 & 115D14) | 1 | ||
| 17 | 41-6364 | HARNESS - low voltage (12V, for connectors see 112D9) | 1 | |
| 18 | 44-9336 | HARNESS - alternator (for connectors see 112D9) | 1 | |
|
10-44-9336 | Проводка генератора | 6 920 ₽ |
|
| 19 | 44-9607 | CONNECTOR (2-pin, female) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 41-7698 | RESISTOR (270 Ohm) | 1 | ||
| 20 | 41-1867 | HARNESS - alternator | 1 | |
| 44-6451 | CONNECTOR (1-pin, female) | 1 | ||
| 21 | 51-8792 | CLAMP | 1 | |
| 22 | 55-6279 | SCREW - ground (frame) | 1 | |
| 55-3672 | LOCKWASHER | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 55-6573 | NUT | 2 |
