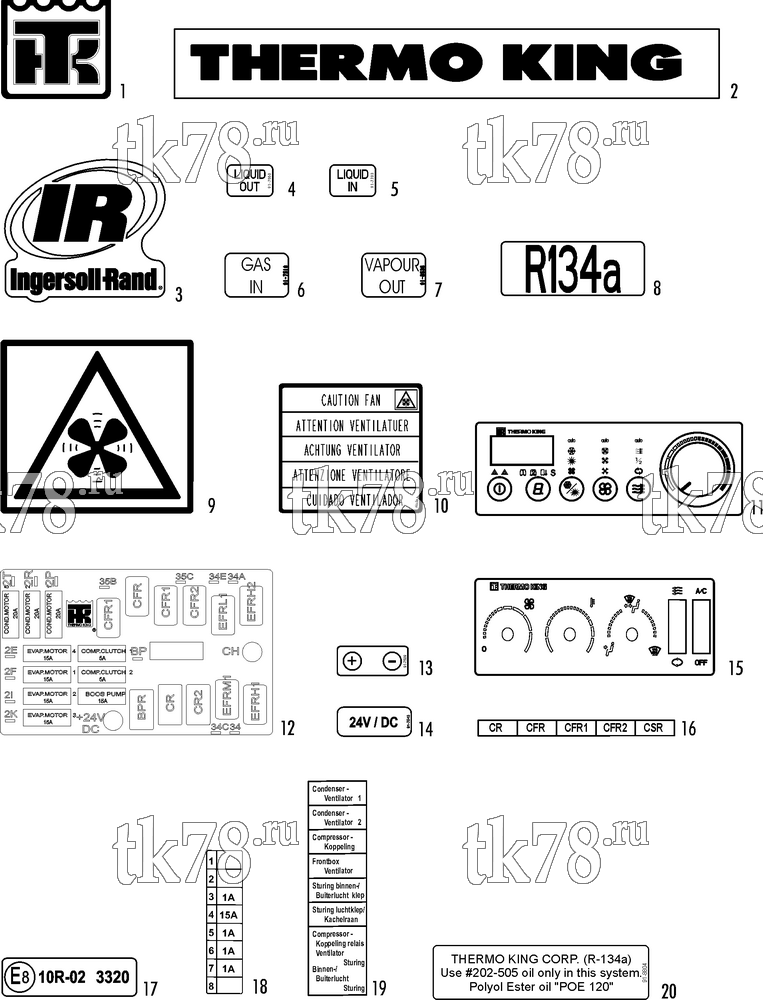

Установкa Thermo King схема NAMEPLATES – 206G4
Обновление от: 8/31/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6232 | NAMEPLATE - TK Logo | 2 | |
| 2 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 3 | 92-1307 | NAMEPLATE - IR Logo | 2 | |
| 4 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 5 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 6 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 7 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 8 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 9 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 10 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 11 | 92-2936 | NAMEPLATE - ClimaAIRE II | 1 | |
| 12 | 92-4027 | NAMEPLATE - Control Panel | 1 | |
| 13 | 91-7509 | NAMEPLATE - Positive / Negative | 1 | |
| 14 | 91-7543 | NAMEPLATE - 24VDC | 1 | |
| 15 | 92-2731 | NAMEPLATE - FrontAIRE | 1 | |
| 16 | 92-2716 | NAMEPLATE - relay | 3 | |
| 17 | 92-5043 | NAMEPLATE - Homologation (FB) | 1 | |
| 18 | 92-2720 | NAMEPLATE - fuse | 1 | |
| 19 | 92-3428 | NAMEPLATE - fuse | 1 | |
| 20 | 91-8804 | NAMEPLATE - Compressor Oil | 1 |
