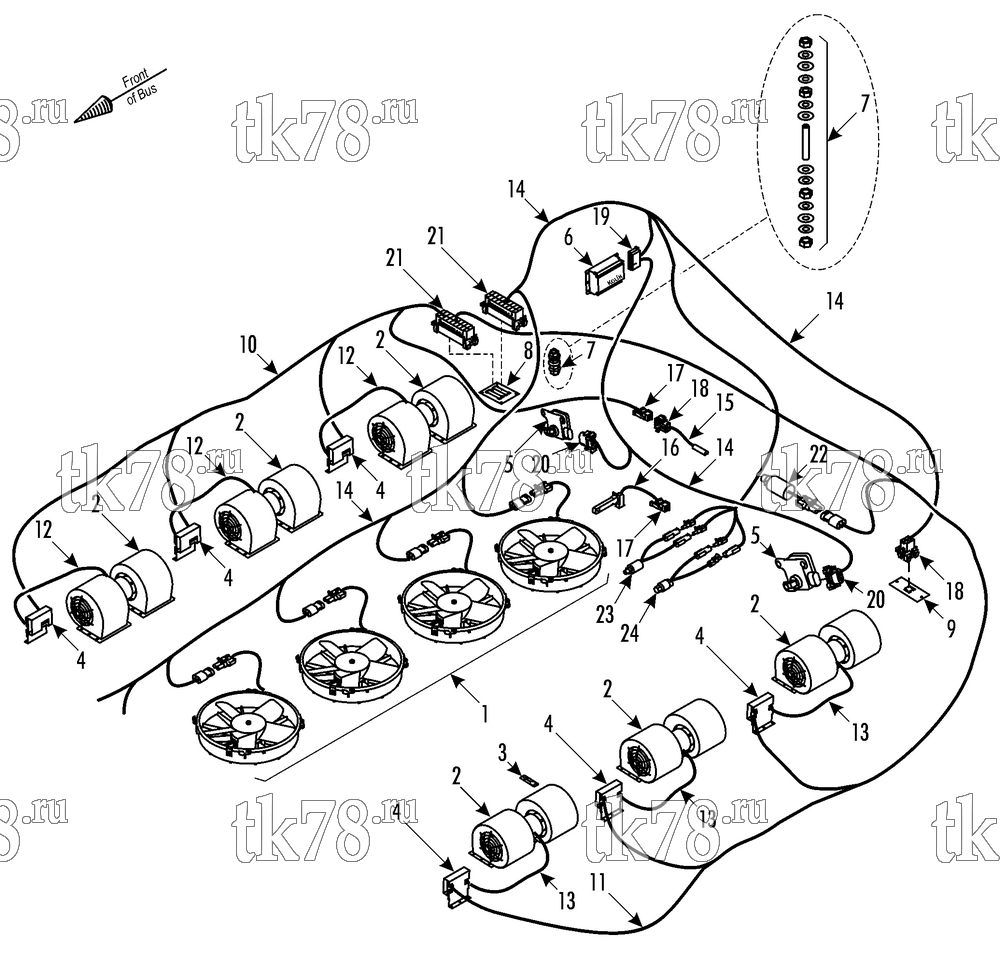

Установкa Thermo King схема ELECTRICAL COMPONENTS (R407C) – 206F9
Обновление от: 9/2/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1391 | FAN - condenser (see 198B1) | 4 | |
| 2 | 78-1296 | BLOWER | 6 | |
| 55-7664 | SCREW - blower (M4) | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 3 | 99-9084 | NAMEPLATE - arrow | 6 | |
| 4 | 41-5191 | CONTROLLER - speed | 6 | |
| 55-7663 | SCREW - controller (M4) | 12 | ||
| 55-7031 | LOCKWASHER | 12 | ||
| 55-7866 | NUT - captive | 12 | ||
| 5 | 41-3255 | SERVOMOTOR (see 198B4) | 2 | |
| 6 | 41-3543 | MODULE - damper | 1 | |
| 55-7664 | SCREW - module (M4) | 4 | ||
| 55-7031 | LOCKWASHER | 4 | ||
| 55-7368 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 7 | 55-9191 | STUD - negative | 1 | |
| 55-448 | FLATWASHER | 6 | ||
| 55-3672 | LOCKWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 8 | 92-4174 | BRACKET - terminal | 1 | |
| 55-3010 | RIVET - bracket | A/R | ||
| 9 | 92-4175 | BRACKET - terminal | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 10 | 41-6219 | HARNESS - evaporator (curbside) | 1 | |
| 11 | 41-6932 | HARNESS - evaporator (roadside, for connectors see 115D14) | 1 | |
| 12 | 41-6221 | HARNESS - to blower (curbside) | 3 | |
| 13 | 41-6222 | HARNESS - to blower (roadside) | 3 | |
| 14 | 41-6933 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 15 | 41-2777 | HARNESS - CTS | 1 | |
| 41-2778 | SENSOR - CTC | 1 | ||
| 16 | 41-2780 | HARNESS - ATS | 1 | |
| 41-2781 | SENSOR - ATS | 1 | ||
| 17 | 41-2769 | CONNECTOR (4 terminal, female) | 2 | |
| 18 | 41-2770 | CONNECTOR (4 terminal, male) | 2 | |
| 19 | 41-2771 | CONNECTOR (15 terminal, female) | 1 | |
| 20 | 41-3288 | CONNECTOR (6 terminal, female) | 2 | |
| 21 | 41-2765 | CONNECTOR (22 terminal, male) | 2 | |
| 22 | 41-5220 | SWITCH - hpco | 1 | |
| 23 | 41-4486 | SWITCH - hpco | 1 | |
| 24 | 41-4147 | SWITCH - lpco | 1 |
