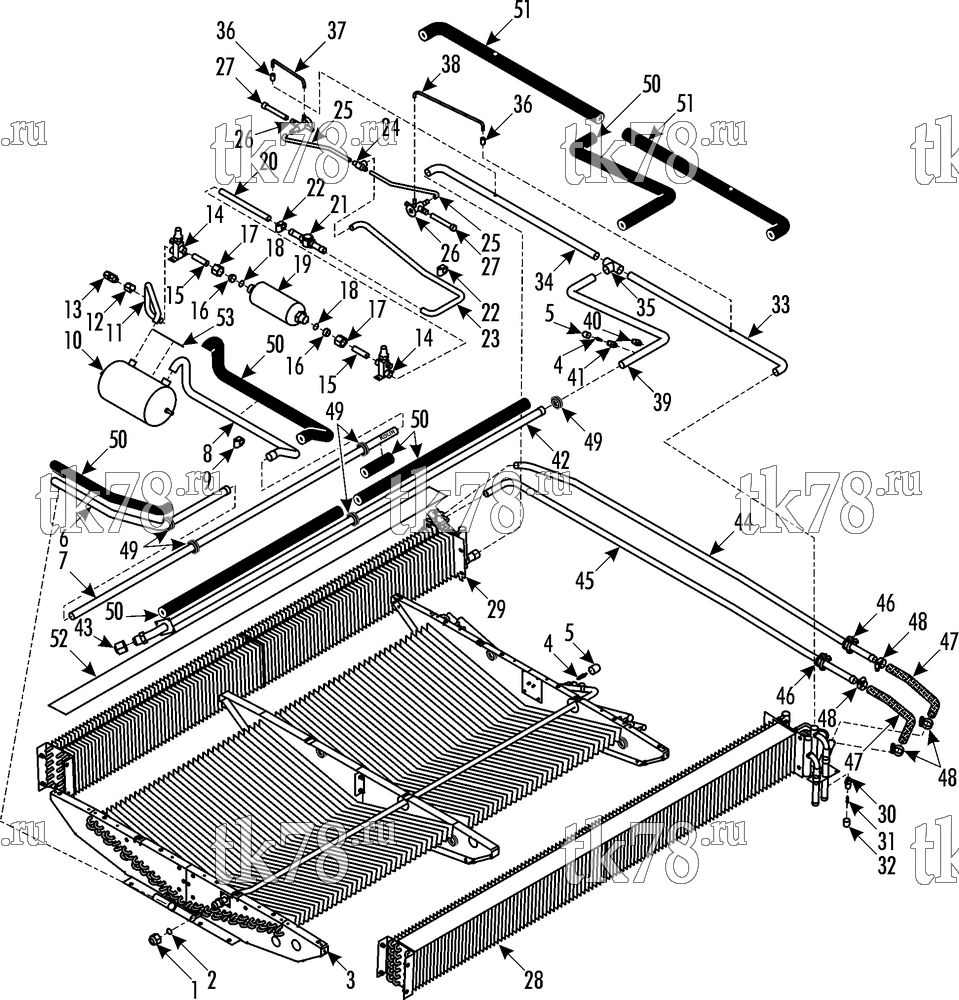

Установкa Thermo King схема REFRIGERATION COMPONENTS (R407C) – 206F7
Обновление от: 8/2/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3372 | CAP - fitting | 1 | |
| 2 | 61-3373 | PLATE - cap fitting | 1 | |
| 3 | 67-2168 | COIL - condenser (see 198B2) | 1 | |
| 4 | 11-7777 | CORE - valve | 2 | |
| 5 | 55-5672 | CAP - valve | 2 | |
| 6 | 66-9370 | TUBE - condenser to tank | 1 | |
| 8 | 61-2819 | TUBE - condenser to tank | 1 | |
| 8 | 66-9357 | TUBE - condenser to tank | 1 | |
| 9 | 55-7013 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 10 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - tank | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 11 | 61-2820 | TUBE - tank to valve | 1 | |
| 12 | 55-9183 | FITTING - saddle | 1 | |
| 13 | 66-9356 | VALVE - relief | 1 | |
| 14 | 66-2104 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 15 | 66-9360 | TUBE - valve to filter | 2 | |
| 16 | 55-6356 | SHOULDER | 2 | |
| 17 | 55-7675 | NUT - shoulder | 2 | |
| 18 | 33-2115 | O-RING | 2 | |
| 19 | 66-9352 | FILTER - dehydrator | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 20 | 61-2821 | TUBE - filter to indicator | 1 | |
| 21 | 66-9354 | INDICATOR - liquid (sight glass) | 1 | |
| 22 | 91-758 | CLAMP - tube & indicator | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 23 | 61-3374 | TUBE - indicator to tee | 1 | |
| 24 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 25 | 61-2833 | TUBE - tee to expansion valve | 2 | |
| 26 | 66-9840 | VALVE - expansion | 2 | |
| 27 | 61-2834 | TUBE - valve to evaporator coil | 1 | |
| 28 | 67-2040 | COIL - evaporator/heater (roadside) | 1 | |
| 29 | 67-2041 | COIL - evaporator/heater (curbside) | 1 | |
| 30 | 55-9705 | BODY - valve | 2 | |
| 31 | 11-7777 | CORE - valve | 2 | |
| 32 | 55-5672 | CAP - valve | 2 | |
| 55-7172 | SCREW - coil | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 55-7075 | FLATWASHER | 16 | ||
| 55-7373 | NUT - captive | 16 | ||
| 33 | 66-9373 | TUBE - evaporator to tee (roadside) | 1 | |
| 34 | 66-9372 | TUBE - evaporator to tee (curbside) | 1 | |
| 35 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 36 | 55-5752 | FITTING | 2 | |
| 37 | 61-2835 | TUBE - equalizer (curbside) | 1 | |
| 38 | 61-2836 | TUBE - equalizer (roadside) | 1 | |
| 39 | 61-3375 | TUBE - outlet | 1 | |
| 40 | 61-2059 | VALVE | 1 | |
| 41 | 55-9705 | BODY - valve | 1 | |
| 42 | 61-3376 | TUBE - outlet assy | 1 | |
| 43 | 61-3377 | CAP - fitting | 1 | |
| 44 | 61-2828 | TUBE - heater | 1 | |
| 45 | 61-2829 | TUBE - heater | 1 | |
| 46 | 55-1310 | CLAMP - tube | 2 | |
| 55-5022 | SCREW - clamp | 2 | ||
| 55-7727 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 47 | 92-4173 | HOSE - silicone | A/R | |
| 48 | 55-3400 | CLAMP - hose | 4 | |
| 49 | 33-612 | GROMMET (0.875 id) | 5 | |
| 50 | 92-2015 | INSULATION - tube | A/R | |
| 51 | 91-3542 | INSULATION - tube | A/R | |
| 52 | 99-8246 | TAPE | A/R | |
| 53 | 91-7846 | NAMEPLATE - R407C | 1 |
