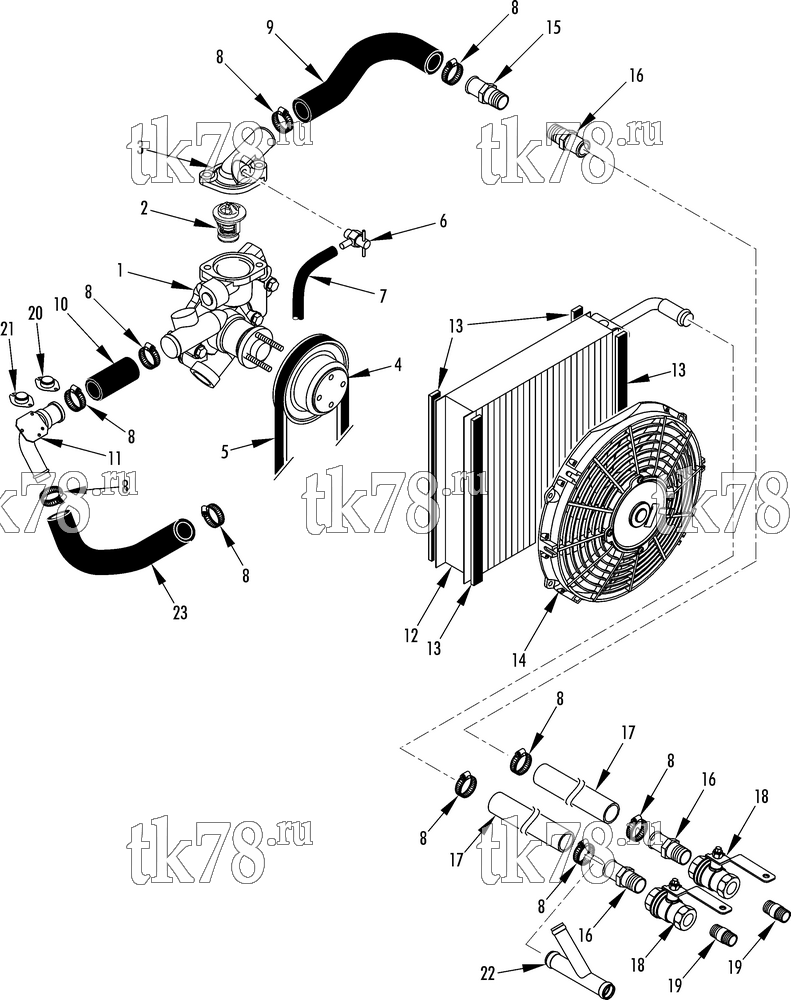

Установкa Thermo King схема COOLING SYSTEM (TIER 2 ENGINE, Before 10/06) – 205C9
Обновление от: 5/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-948 | PUMP - coolant (see 209A6) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 2 | 13-954 | THERMOSTAT (151 F / 71 C, gasket is incorporated w/ thermostat) | 1 | |
|
13-954 OEM | Термостат, Yanmar 370 / 376, TS-500/T-Series | 8 350 ₽ |
|
|
10-13-954 | Термостат, Yanmar 370 / 376, TS-500/T-Series | 4 140 ₽ |
|
| 3 | 13-418 | COVER - thermostat | 1 | |
| 4 | 77-2847 | PULLEY - water pump | 1 | |
| 5 | 78-1492 | BELT - water pump | 1 | |
| 10-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 2 820 ₽ |
|
|
|
PP-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 980 ₽ |
|
| 6 | 13-478 | VALVE - bleed | 1 | |
| 7 | 99-1655 | HOSE - bleed | A/R | |
| 8 | 55-2818 | CLAMP - hose | 6 | |
| 9 | 13-789 | HOSE - thermostat out | 1 | |
| 10 | 13-747 | HOSE - water | 1 | |
| 11 | 92-5025 | TUBE - hose to radiator | 1 | |
| 12 | 67-2146 | COIL - precool | 1 | |
| 55-2217 | NUT - coil | 4 | ||
| 13 | 33-4217 | INSULATION - coil | 4 | |
| 14 | 78-1535 | FAN - precool coil (12V, 10 inch, blow) | 1 | |
| 55-927 | NUT - fan | 4 | ||
| 15 | 51-1338 | FITTING - hose (1.0 inch) | 1 | |
| 16 | 55-6485 | FITTING - hose (0.75 inch) | 3 | |
| 17 | 98-935 | HOSE - unit to tractor (3/4 hose id) | 1 | |
| 18 | 13-961 | VALVE - ball | 2 | |
| 19 | 55-6360 | NIPPLE | 2 | |
| 20 | 41-6927 | SWITCH - temperature | 1 | |
| 20-41-6927 | Выключатель температуры | 2 270 ₽ |
|
|
| 21 | 40-1085 | SWITCH - temperature (Arctic option) | 1 | |
| 55-2012 | RIVET - switch | 4 | ||
| 22 | 61-3692 | WYE - connecting (7/8 x 7/9 x 3/4 hose id) | 1 | |
| 61-3693 | WYE - connecting (3/4 hose id all around) | 1 | ||
| 61-3694 | WYE - connecting (5/8 x 5/8 x 3/4 hose id) | 1 | ||
| 23 | 13-788 | HOSE - coil to pump | 1 |
