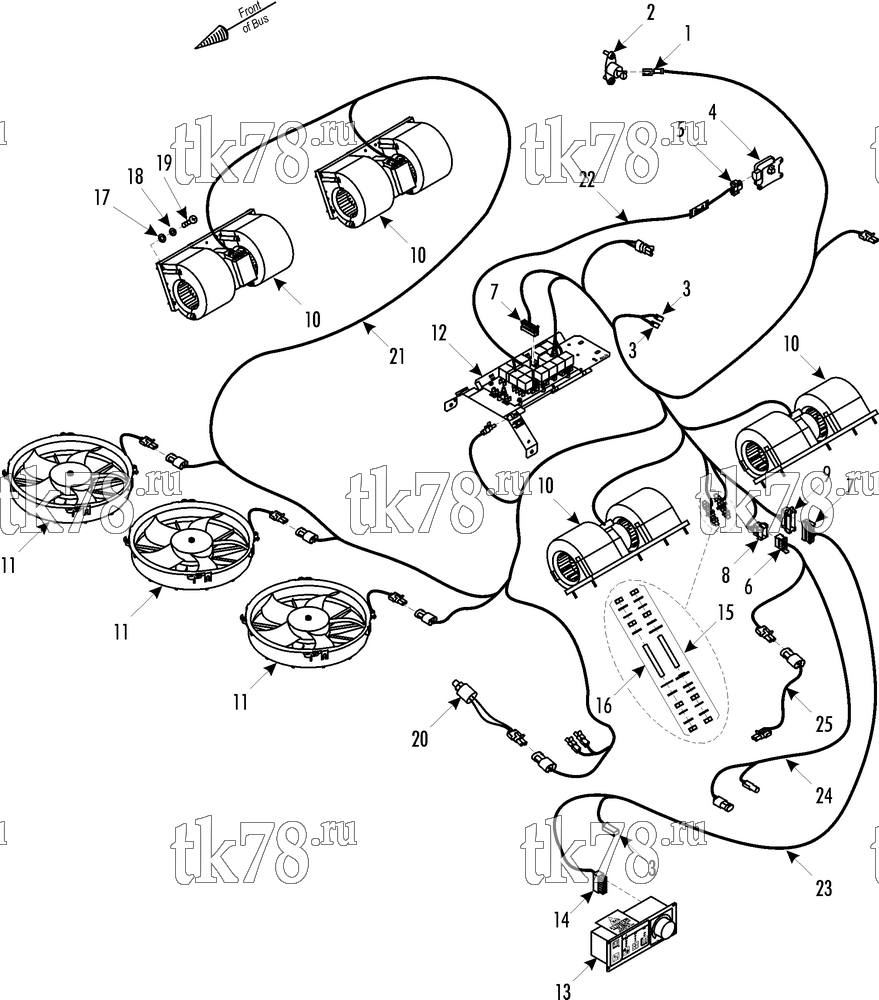

Установкa Thermo King схема ELECTRICAL COMPONENTS (VH) – 203E7
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2788 | TERMINAL - fork | 1 | |
| 2 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 55-7664 | SCREW - switch | 2 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7665 | NUT | 2 | ||
| 3 | 44-6381 | CONNECTOR (1-pin, female) | 3 | |
| 4 | 41-4315 | SERVOMOTOR (12V) | 1 | |
| 55-7696 | SCREW - servomotor | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 5 | 41-2768 | CONNECTOR (6-pin, female) | 1 | |
| 6 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 7 | 41-3856 | TERMINAL - connector (18-pin, female) | 2 | |
| 8 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 9 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 10 | 78-1297 | BLOWER - evaporator (24V) | 4 | |
| 11 | 78-1344 | FAN - condenser (24V) | 3 | |
| 12 | NSS | PANEL - control (24V, see 203E8) | 1 | |
| 13 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 14 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 15 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER - shoulder (nylon) | 1 | ||
| 55-8693 | FLATWASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 16 | 55-9367 | STUD - negative | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8568 | WASHER - bright | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 2 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 17 | 55-7697 | FLATWASHER | 20 | |
| 18 | 55-7031 | LOCKWASHER | 20 | |
| 19 | 55-7696 | SCREW - blower | 20 | |
| 20 | 41-5220 | SWITCH - hpco | 1 | |
| 21 | 41-6791 | HARNESS - unit (24V, for connectors see 115D14) | 1 | |
| 22 | 41-5387 | HARNESS - servomotor | 1 | |
| 23 | 41-4512 | HARNESS - driver panel (18.3 m, for connectors see 115D14) | 1 | |
| 41-5232 | HARNESS - driver panel (16 m, for connectors see 115D14) | 1 | ||
| 41-4999 | HARNESS - driver panel (14 m, for connectors see 115D14) | 1 | ||
| 41-4313 | HARNESS - driver panel (12 m, for connectors see 115D14) | 1 | ||
| 41-4998 | HARNESS - driver panel (8 m, for connectors see 115D14) | 1 | ||
| 41-5233 | HARNESS - driver panel (6 m, for connectors see 115D14) | 1 | ||
| 41-5234 | HARNESS - driver panel (10 m, for connectors see 115D14) | 1 | ||
| 24 | 41-6774 | HARNESS - compressor (TM31, 8 m, for connectors see 115D14) | 1 | |
| 41-6775 | HARNESS - compressor (TM31, 12 m, for connectors see 115D14) | 1 | ||
| 41-6776 | HARNESS - compressor (TM31, 14 m, for connectors see 115D14) | 1 | ||
| 41-6777 | HARNESS - compressor (TM31, 18 m, for connectors see 115D14) | 1 | ||
| 41-4513 | HARNESS - compressor (X430 and FKX 40/470, 8.3 m, for connectors see 115D14) | 1 | ||
| 41-4912 | HARNESS - compressor (X430 and FKX 40/470, 12 m, for connectors see 115D14) | 1 | ||
| 41-5316 | HARNESS - compressor (X430 and FKX 40/470, 16 m, for connectors see 115D14) | 1 | ||
| 41-5318 | HARNESS - compressor (X430 and FKX 40/470, 20 m, for connectors see 115D14) | 1 | ||
| 25 | 41-4143 | HARNESS - boost pump (14 m, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 m, for connectors see 115D14) | 1 |
