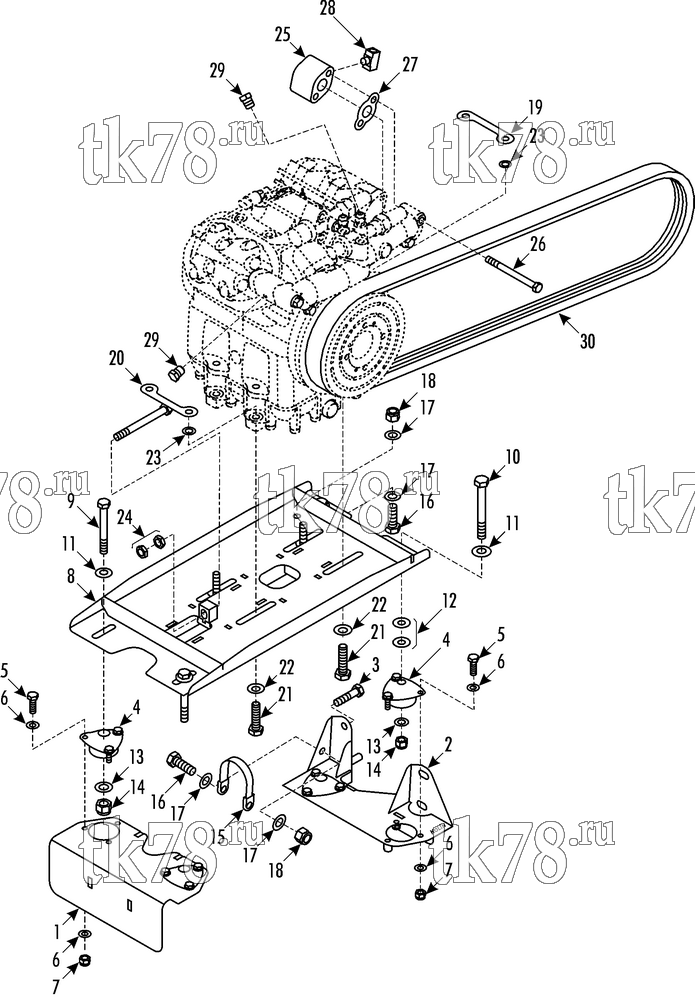

Установкa Thermo King схема DRIVE KIT 719964 - Iveco 395 medio/E3/X430 – 202B3
Обновление от: 5/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-1976 | HOLDER - side | 1 | |
| 2 | 92-4475 | BRACKET - assy | 1 | |
| 3 | 55-8469 | SCREW - bracket | 1 | |
| 4 | 92-2963 | SILENTBLOCK | 4 | |
| 5 | 55-5424 | SCREW - silentblock | 12 | |
| 6 | 55-7069 | FLATWASHER | 24 | |
| 7 | 51-1114 | NUT | 12 | |
| 8 | 98-7016 | PLATE - compressor | 1 | |
| 9 | 51-1637 | SCREW - plate | 2 | |
| 10 | 55-7001 | SCREW - plate | 2 | |
| 11 | 51-145 | WASHER | 4 | |
| 12 | 92-4471 | SPACER | 4 | |
| 13 | 55-5914 | FLATWASHER | 4 | |
| 14 | 51-143 | NUT | 4 | |
| 15 | 92-4344 | STRAP - ground | 1 | |
| 16 | 51-140 | SCREW - ground strap | 2 | |
| 17 | 55-5914 | FLATWASHER | 4 | |
| 18 | 51-143 | NUT | 2 | |
| 19 | 92-4472 | PLATE | 1 | |
| 20 | 92-4473 | TENSIONER - assy | 1 | |
| 21 | 51-1115 | SCREW - compressor | 4 | |
| 22 | 51-1113 | WASHER | 4 | |
| 23 | 55-399 | WASHER | 4 | |
| 24 | 55-9871 | NUT | 2 | |
| 25 | 108-1718 | ADAPTER | 2 | |
| 26 | 55-2888 | SCREW - adapter | 4 | |
| 27 | 33-2805 | GASKET - compressor | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 28 | 55-1654 | TEE - branch | 1 | |
| 29 | 55-3364 | PLUG - pipe | 2 | |
| 30 | 78-1464 | BELT | 1 |
