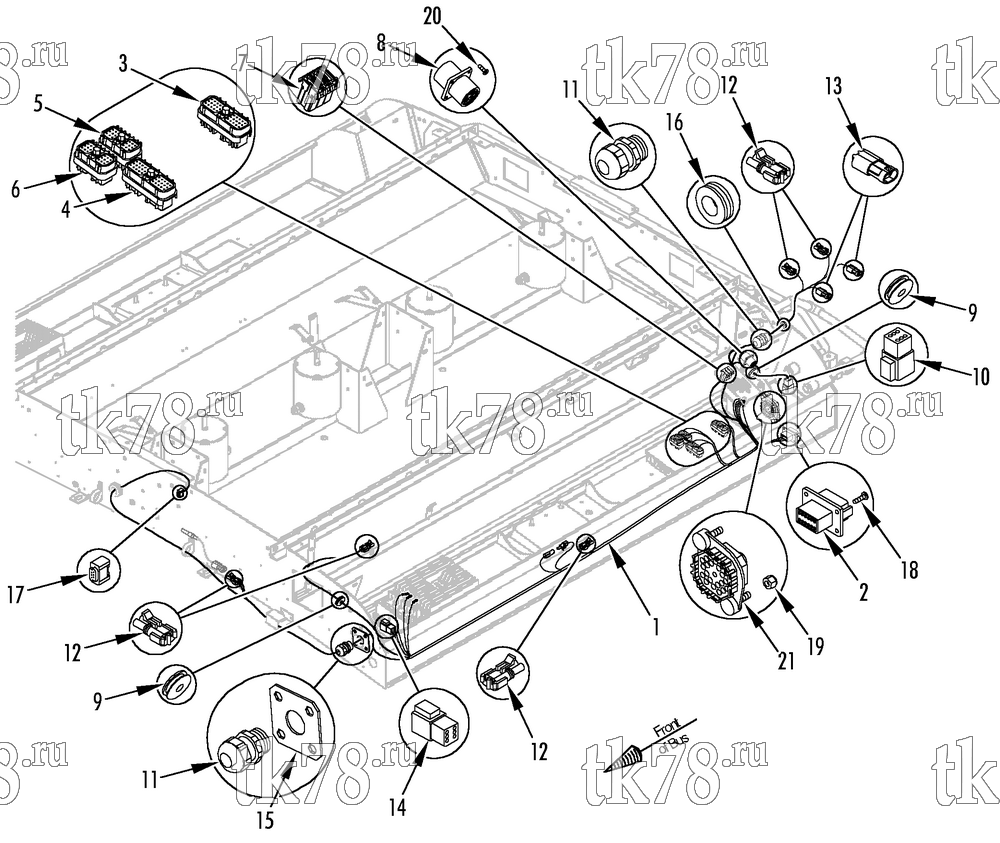

Установкa Thermo King схема MAIN HARNESS IntelligAIRE – 201H2
Обновление от: 2/15/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6673 | HARNESS - main | 1 | |
| 2 | 41-6681 | CONNECTOR - 12 way | 1 | |
| 3 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 4 | 41-8857 | CONNECTOR (30-pin, black) | 1 | |
| 41-4537 | RESISTOR (120 ohm, 1/2 W) | 2 | ||
| 5 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 41-6117 | RESISTOR (22.1 kohm, V4 W) | 1 | ||
| 6 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 7 | 41-2973 | HOLDER - fuse | 3 | |
| 8 | 41-2405 | RECEPTACLE - 5-pin | 1 | |
| 9 | 33-4149 | GROMMET | 2 | |
| 10 | 41-4281 | CONNECTOR (6-pin) | 1 | |
| 11 | 41-5359 | CONNECTOR - liquid tite | 2 | |
| 55-2635 | NUT - lock | 2 | ||
| 12 | 44-5838 | CONNECTOR - tower (2-pin) | 5 | |
| 13 | 44-5835 | CONNECTOR - shroud (2 term) | 1 | |
| 14 | 44-8914 | CONNECTOR - shroud (6 term) | 1 | |
| 15 | 92-4863 | PLATE - harness | 1 | |
| 16 | 33-1692 | GROMMET (3/8 id) | 1 | |
| 17 | 41-3288 | CONNECTOR - 6 way | 1 | |
| 18 | 51-749 | SCREW - connector | 4 | |
| 19 | 55-4953 | NUT - connector | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 20 | 55-3687 | SCREW - receptacle | 4 | |
| 21 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 |
