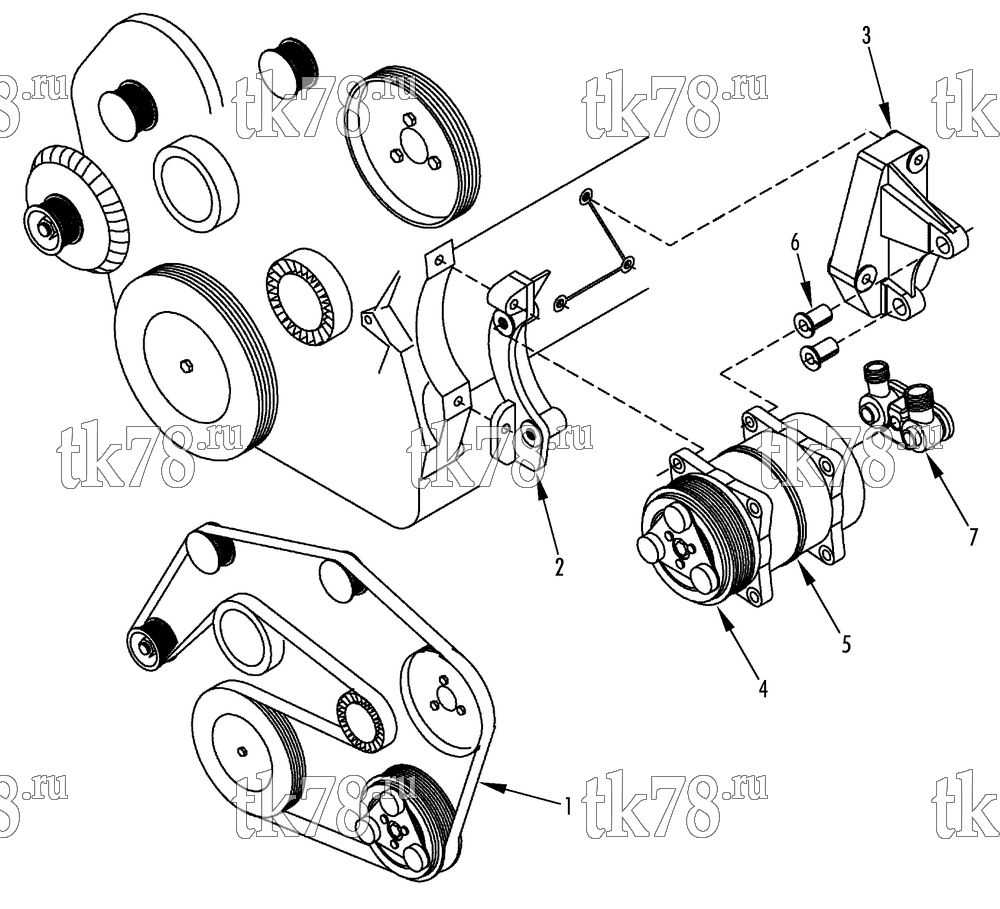

Установкa Thermo King схема DRIVE KIT (Mercedes Sprinter 208/311/313CDI, 12120331) – 201B3
Обновление от: 9/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-256 | BELT | 1 | |
| 2 | 108-784 | BRACKET - compressor (front) | 1 | |
| 108-1368 | SCREW - bracket (M8 x 40) | 1 | ||
| 108-1398 | SCREW - bracket (M8 x 60) | 1 | ||
| 108-1539 | LOCKWASHER | 2 | ||
| 3 | 108-806 | BRACKET - compressor (rear) | 1 | |
| 108-1371 | SCREW - bracket | 3 | ||
| 108-1534 | FLATWASHER | 3 | ||
| 108-1536 | LOCKWASHER | 3 | ||
| 4 | 108-1645 | CLUTCH (D.120 poly-V 12V) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 5 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1500 | SCREW - compressor (M10 x 40) | 2 | ||
| 108-1398 | SCREW - compressor (M10 x 60) | 2 | ||
| 108-1540 | FLATWASHER | 2 | ||
| 108-1517 | NUT | 2 | ||
| 6 | 108-946 | SPACER | 2 | |
| 7 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 51-1652 | SCREW - manifold | 1 |
