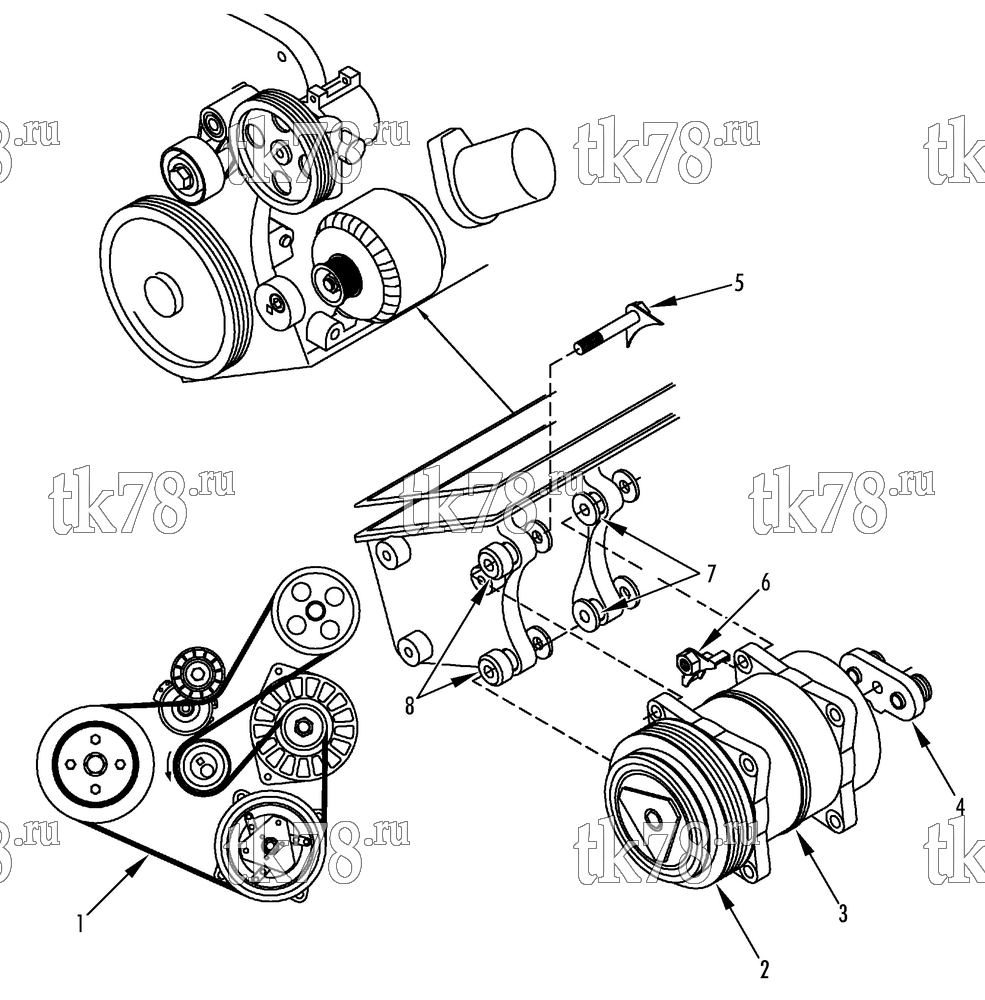

Установкa Thermo King схема DRIVE KIT (Citroen Jumpy, Peugeot Expert, Fiat Scudo, 12140338) – 201B1
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-237 | BELT | 1 | |
| 2 | 108-1308 | CLUTCH (143 6K 12V L.S.) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1398 | SCREW - compressor (M10 x 60) | 1 | ||
| 108-1401 | SCREW - compressor (M10 x 70) | 2 | ||
| 108-1517 | NUT (M10) | 3 | ||
| 4 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 33-566 | O-RING | 2 | ||
| 5 | 108-1259 | SCREW - special | 1 | |
| 108-1668 | WASHER - special | 1 | ||
| 6 | 108-1277 | NUT - special | 1 | |
| 7 | 108-1667 | SPACER | 2 | |
| 8 | 108-1668 | SPACER | 2 |
