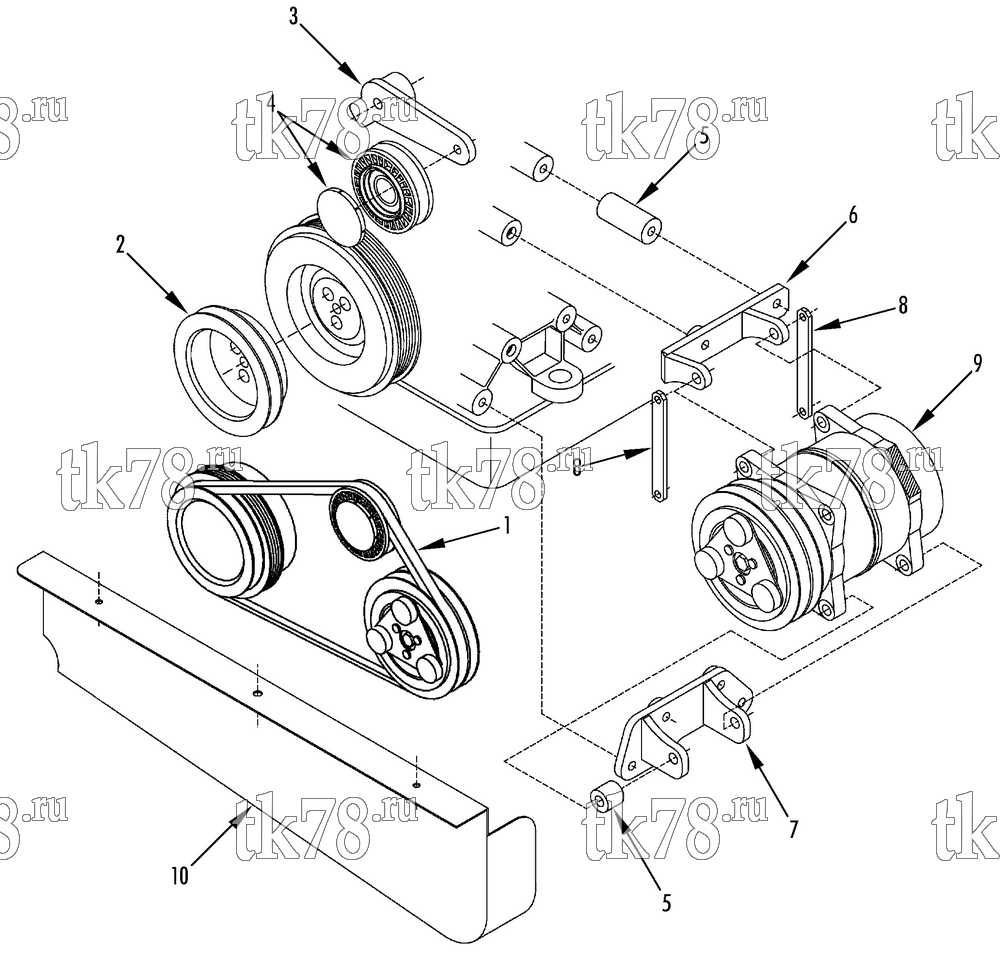

Установкa Thermo King схема DRIVE KIT (Ford Transit 2.0 100cv, 12140348) – 201A7
Обновление от: 9/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-138 | BELT | 1 | |
| 2 | 108-350 | PULLEY - compressor (use original hardware) | 1 | |
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 3 | 108-846 | TENSIONER | 1 | |
| 108-1400 | SCREW - tensioner | 1 | ||
| 108-1545 | LOCKWASHER | 1 | ||
| 4 | 108-385 | PULLEY - idler | 1 | |
| 108-1366 | SCREW - pulley | 1 | ||
| 108-1545 | LOCKWASHER | 1 | ||
| 108-1534 | FLATWASHER | 1 | ||
| 5 | 108-1102 | SPACER | 1 | |
| 6 | 108-601 | BRACKET - compressor (top) | 1 | |
| 7 | 108-629 | BRACKET - compressor (bottom) | 1 | |
| 108-1366 | SCREW - bracket (M8 x 30) | 2 | ||
| 108-1367 | SCREW - bracket (M8 x 35) | 3 | ||
| 108-1635 | SCREW - bracket (M8 x 80) | 1 | ||
| 108-1539 | LOCKWASHER | 6 | ||
| 8 | 108-776 | TENSIONER | 2 | |
| 9 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1390 | SCREW - compressor (M10 x 35) | 3 | ||
| 108-1397 | SCREW - compressor (M10 x 55) | 1 | ||
| 108-1517 | NUT | 4 | ||
| 10 | 108-764 | COVER - engine | 1 | |
| 108-1532 | SCREW - cover | 2 | ||
| 108-1532 | FLATWASHER | 2 |
