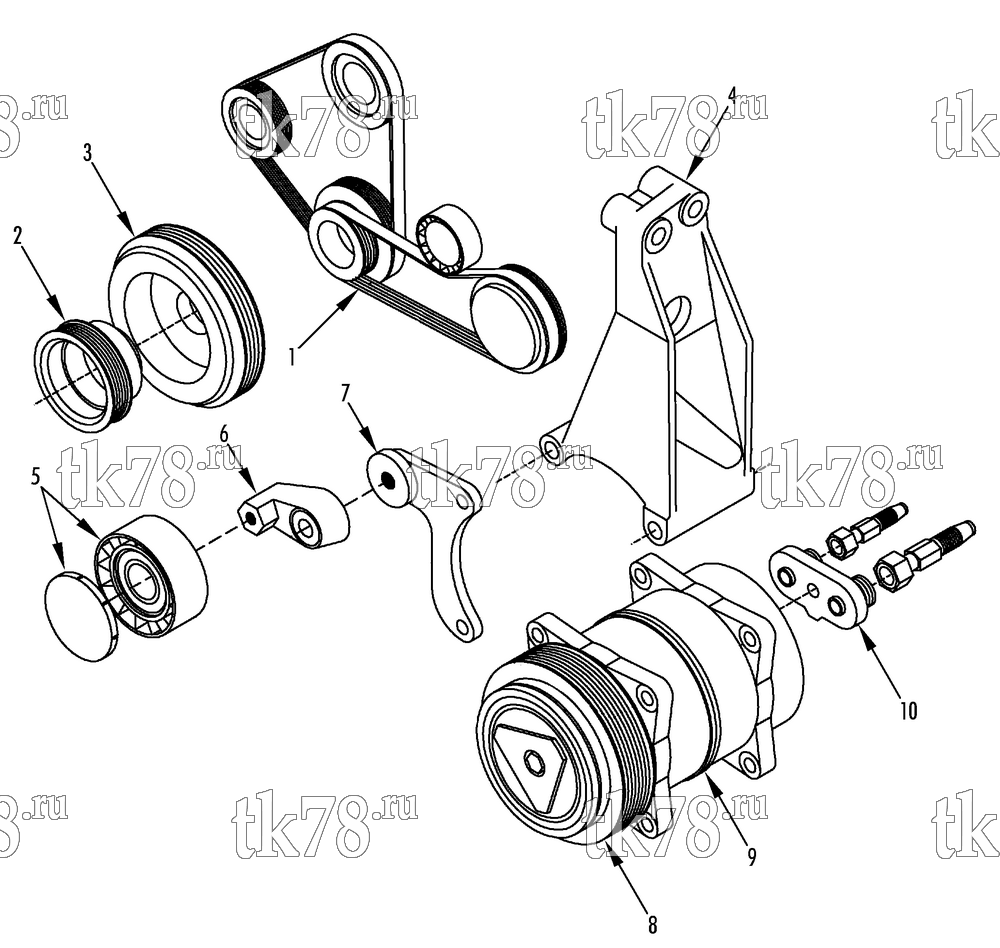

Установкa Thermo King схема DRIVE KIT (Fiat Ducato, Citroen Jumper, Peugeot Boxer, 12140327) – 200H7
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-220 | BELT | 1 | |
| 2 | 108-335 | PULLEY - compressor drive | 1 | |
| 108-1251 | SCREW - pulley | 1 | ||
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 3 | N/A | PULLEY - crankshaft (not supplied by Thermo King) | 1 | |
| 4 | 108-785 | BRACKET - compressor | 1 | |
| 108-1450 | SCREW - bracket | 4 | ||
| 108-1550 | LOCKWASHER | 4 | ||
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 5 | 108-397 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 6 | 108-908 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 7 | 108-694 | BRACKET - eccentric | 1 | |
| 108-1391 | SCREW - bracket | 1 | ||
| 108-1540 | FLATWASHER | 1 | ||
| 8 | 108-1645 | CLUTCH (D.120 poly-V 12V) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 9 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1410 | SCREW - compressor | 2 | ||
| 108-1540 | FLATWASHER | 2 | ||
| 108-1517 | NUT | 2 | ||
| 10 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 33-566 | O-RING | 2 |
