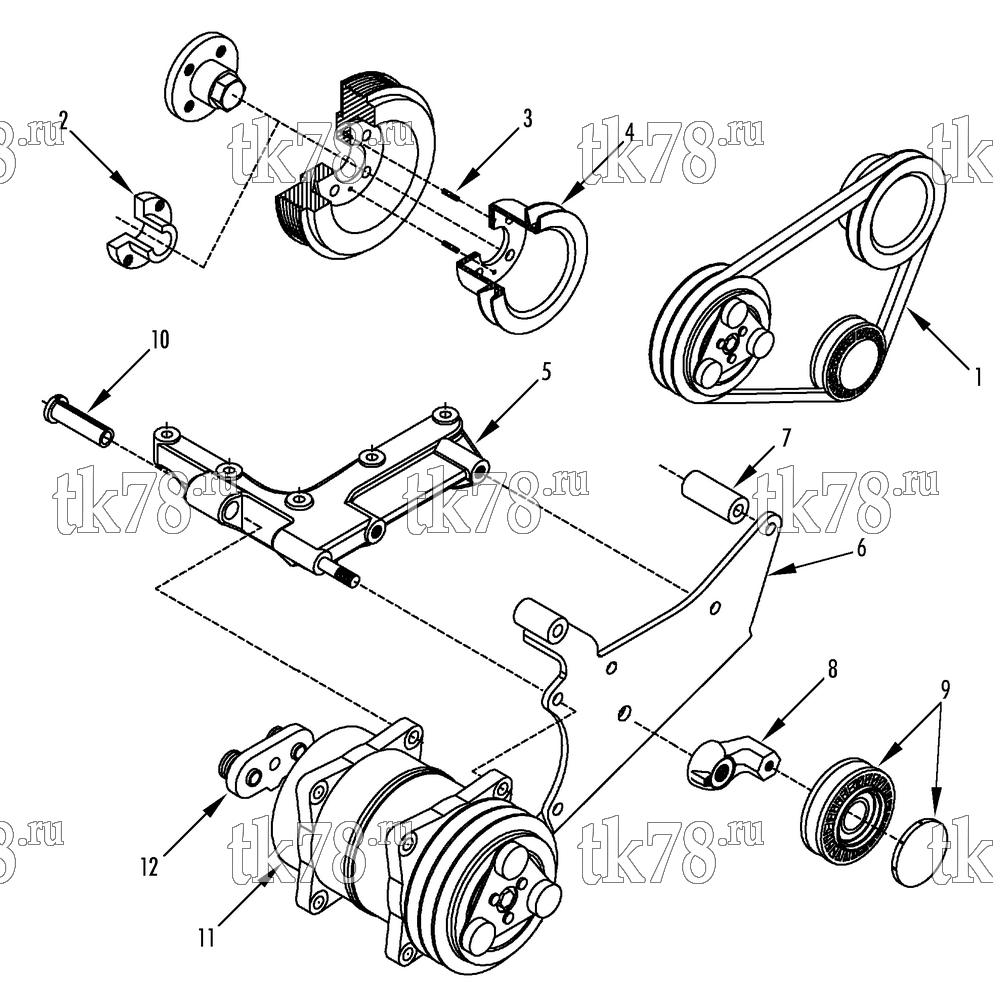

Установкa Thermo King схема DRIVE KIT (IVECO DAILY 2.3 motor F1A, 12140384) – 200F8
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-132 | BELT | 1 | |
| 2 | 108-433 | SPACER - crankshaft pulley | 1 | |
| 3 | 108-1349 | PIN - roll | 2 | |
| 4 | 108-354 | PULLEY - crankshaft | 1 | |
| 108-1634 | SCREW - pulley | 4 | ||
| 108-1539 | LOCKWASHER M8 | 4 | ||
| 5 | 108-797 | BRACKET - compressor | 1 | |
| 108-1373 | SCREW - bracket (M8 x 60) | 4 | ||
| 108-1635 | SCREW - bracket (M8 x 80) | 1 | ||
| 108-1539 | LOCKWASHER | 5 | ||
| 6 | 108-699 | PLATE - front | 1 | |
| 108-1386 | SCREW - plate (M10 x 25) | 2 | ||
| 108-1396 | SCREW - plate (M10 x 50) | 1 | ||
| 108-1402 | SCREW - plate (M10 x 70) | 1 | ||
| 108-1545 | LOCKWASHER | 4 | ||
| 7 | 108-1140 | SPACER - plate | 1 | |
| 8 | 108-871 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 9 | 108-385 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - idler pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 10 | 108-949 | SPACER | 1 | |
| 11 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1390 | SCREW - compressor (M10 x 35) | 1 | ||
| 108-1404 | SCREW - compressor (M10 x 80) | 1 | ||
| 108-1545 | LOCKWASHER | 3 | ||
| 108-1517 | NUT | 3 | ||
| 12 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
