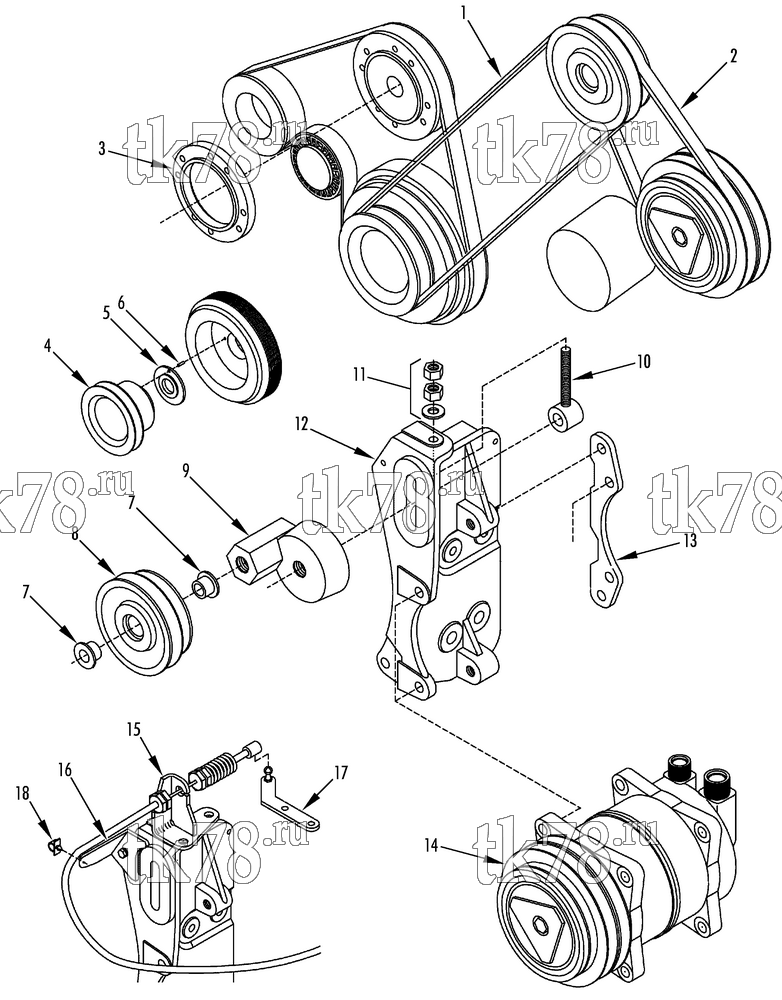

Установкa Thermo King схема DRIVE KIT (Iveco Daily 99, 12140303) – 200F7
Обновление от: 9/2/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-153 | BELT - crankshaft pulley to idler | 1 | |
| 2 | 108-119 | BELT - idler to compressor | 1 | |
| 3 | 108-965 | SPACER - fan | 1 | |
| 108-1356 | SCREW - spacer | 8 | ||
| 108-1531 | LOCKWASHER | 8 | ||
| 4 | 108-328 | PULLEY - crankshaft | 1 | |
| 108-1632 | SCREW - pulley | 1 | ||
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 5 | 108-429 | SPACER - crankshaft | 1 | |
| 6 | 108-1356 | PIN - roll | 1 | |
| 7 | 108-1633 | BUSHING | 2 | |
| 8 | 108-413 | PULLEY - idler | 1 | |
| 108-1430 | SCREW - idler pulley | 1 | ||
| 9 | 108-413 | IDLER - eccentric | 1 | |
| 108-1434 | SCREW - idler | 1 | ||
| 10 | 108-854 | TENSIONER - intermediate | 1 | |
| 11 | 108-1516 | NUT - tensioner | 2 | |
| 108-1534 | FLATWASHER | 1 | ||
| 12 | 108-482 | BRACKET - compressor | 1 | |
| 108-1388 | SCREW - bracket (M10 x 30) | 1 | ||
| 108-1545 | LOCKWASHER (M10) | 1 | ||
| 108-1384 | SCREW (M8 x 180) | 2 | ||
| 108-1539 | LOCKWASHER (M8) | 2 | ||
| 108-1447 | SCREW (M12 x 190) | 2 | ||
| 108-1550 | FLATWASHER (M12) | 2 | ||
| 13 | 108-622 | PLATE - compressor (back) | 1 | |
| 108-1388 | SCREW - plate | 2 | ||
| 108-1545 | LOCKWASHER | 2 | ||
| 14 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1390 | SCREW - compressor (M10 x 35) | 2 | ||
| 108-1391 | SCREW - compressor (M10 x 40) | 2 | ||
| 108-1517 | NUT | 4 | ||
| 15 | 108-707 | BRACKET - accelerator cable | 1 | |
| 108-1365 | SCREW - bracket | 2 | ||
| 108-1539 | LOCKWASHER | 2 | ||
| 16 | 108-413 | BRACKET - cable | 1 | |
| 108-2371 | SCREW | 1 | ||
| 108-1534 | FLATWASHER | 1 | ||
| 108-1513 | NUT | 1 | ||
| 17 | 108-707 | LEVER - accelerator | 1 | |
| N/A | SCREW - lever (use original) | 2 | ||
| 18 | 108-104 | CLIP - hose | 1 | |
| 108-1236 | ADAPTER - fuel | 1 | ||
| 55-9487 | BAND (23-50 dia, stl) | 3 | ||
| 92-1501 | CLAMP (metric, ss, 12 mm) | 1 | ||
| 108-1365 | SCREW (M8 x 25) | 1 |
