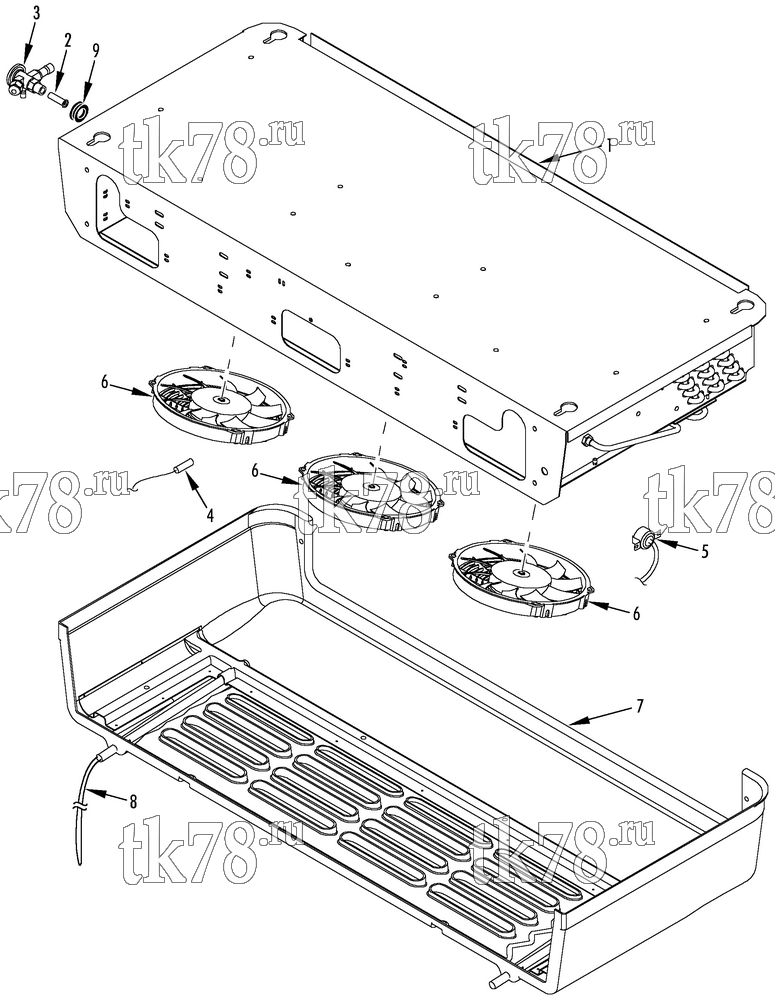

Установкa Thermo King схема EVAPORATOR GROUP (V-500) – 200E8
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2254 | COIL - evaporator | 1 | |
| 2 | 61-1416 | FILTER - expansion valve | 1 | |
| 3 | 61-3849 | VALVE - expansion | 1 | |
| 61-3850 | VALVE - expansion (MAX) | 1 | ||
| 4 | 41-3143 | SENSOR - temperature | 1 | |
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-9452 | SCREW - sensor | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 5 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 6 | 78-1183 | FAN - evaporator (12V) | 3 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 7 | 92-1901 | COVER - evaporator | 1 | |
| 55-7366 | SCREW - cover | 20 | ||
| 55-7404 | LOCKWASHER | 20 | ||
| 55-9826 | FLATWASHER | 20 | ||
| 8 | 41-9627 | HARNESS - drain tube heater (12V, for MAX units) | 2 | |
| 9 | 33-3539 | GROMMET (26 mm) | 1 |
