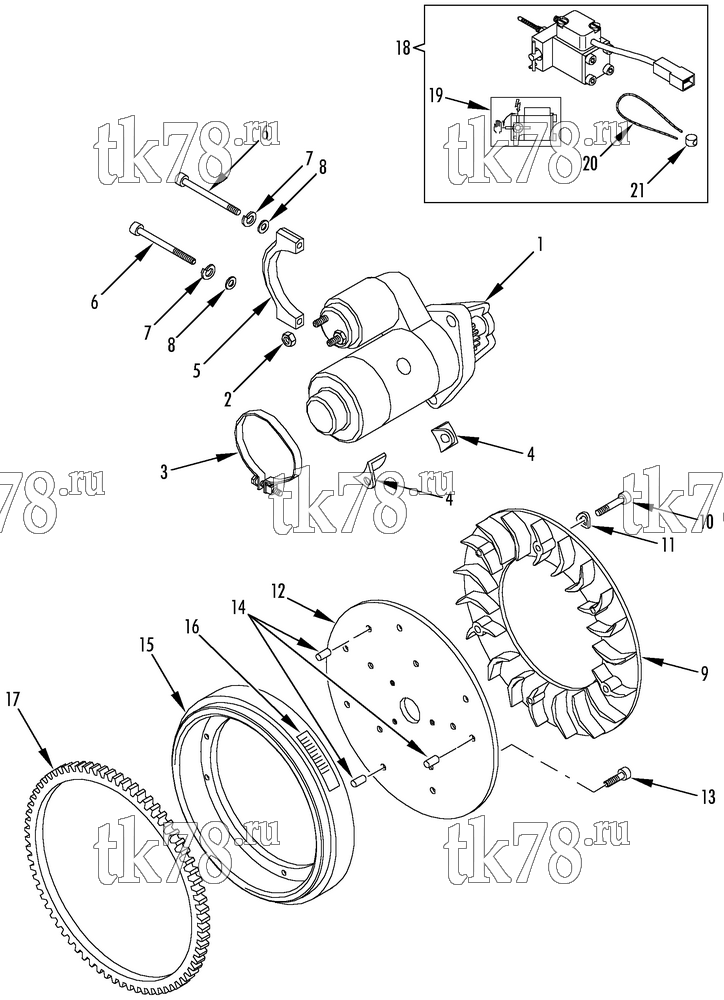

Установкa Thermo King схема ELECTRICAL COMPONENTS – 200A4
Обновление от: 1/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2105 | STARTER | 1 | |
| 2 | 51-1100 | NUT | 1 | |
| 3 | 13-284 | SUPPORT - starter | 2 | |
| 4 | 13-285 | CLIP - hose | 1 | |
| 5 | 13-286 | BRACKET - starter | 1 | |
| 6 | 51-1099 | SCREW | 2 | |
| 7 | 51-1070 | LOCKWASHER | 2 | |
| 8 | 51-1076 | WASHER | 2 | |
| 9 | 13-287 | RING - blower | 1 | |
| 10 | 51-1101 | SCREW | 6 | |
| 11 | 51-1103 | LOCKWASHER | 6 | |
| 12 | 13-288 | FLANGE | 1 | |
| 13 | 51-1102 | SCREW | 3 | |
| 14 | 13-289 | PIN | 3 | |
| 15 | 13-290 | FLYWHEEL | 1 | |
| 19 | 92-4458 | NAMEPLATE - TDC | 1 | |
| 17 | 13-291 | GEAR - ring | 1 | |
| 18 | 41-6387 | CONTROLLER - assembly | 1 | |
| 19 | 92-4459 | NAMEPLATE | 1 | |
| 20 | 13-299 | WIRE | 1 | |
| 21 | 13-300 | SEAL | 1 |
