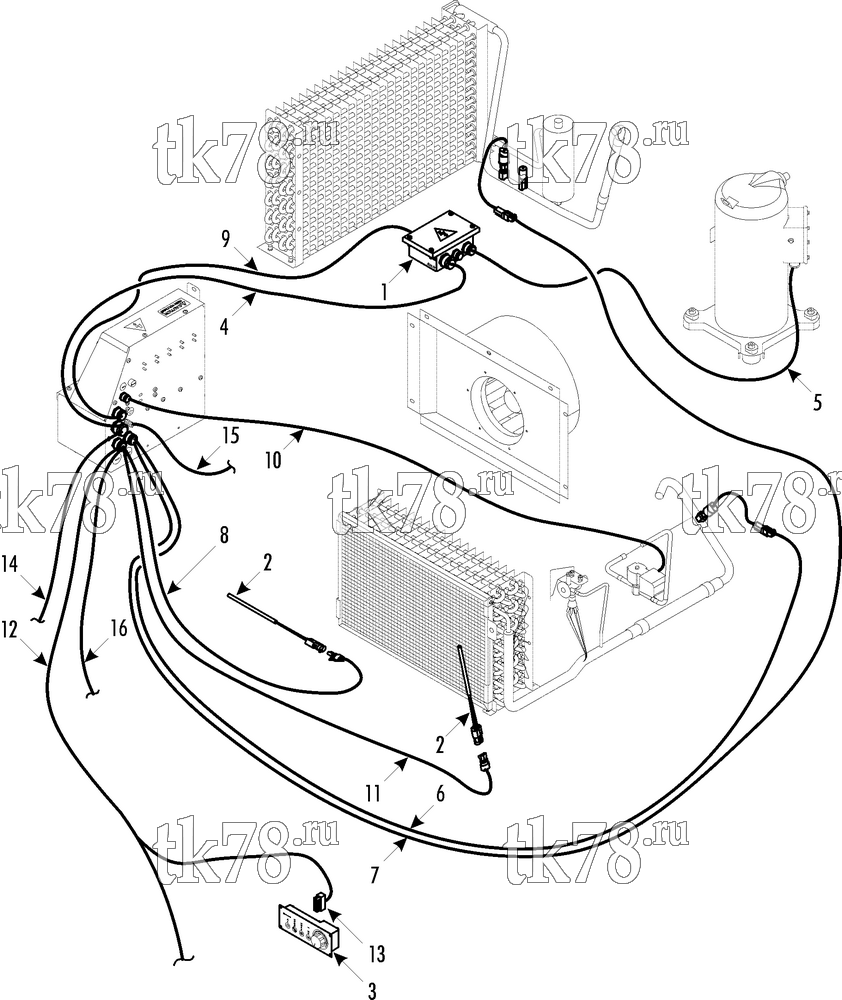

Установкa Thermo King схема ELECTRICAL COMPONENTS – 198H3
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - junction, blower (see 186G7) | 1 | |
| 2 | 41-4157 | SENSOR - temperature | 2 | |
| 3 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 4 | 41-6370 | CABLE - power supply | 1 | |
| 5 | 41-6371 | CABLE - compressor supply | 1 | |
| 6 | 41-6372 | CABLE - low pressure switch (for connectors see 112D9) | 1 | |
| 7 | 41-6373 | CABLE - high pressure switch (for connectors see 112D9) | 1 | |
| 8 | 41-6374 | CABLE - temperature sensor, RTS (for connectors see 115D14) | 1 | |
| 9 | 41-6375 | CABLE - condenser fan overload | 1 | |
| 10 | 41-6376 | CABLE - solenoid | 1 | |
| 12 | 41-6377 | CABLE - temperature sensor, CTS (for connectors see 115D14) | 1 | |
| 14 | 41-6378 | CABLE - temperature sensor, CTS & RTS | 1 | |
| 13 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 14 | 41-6379 | HARNESS - power input | 1 | |
| 15 | 41-6380 | WIRES - grounding | 1 | |
| 16 | 41-6381 | HARNESS - unit control | 1 |
