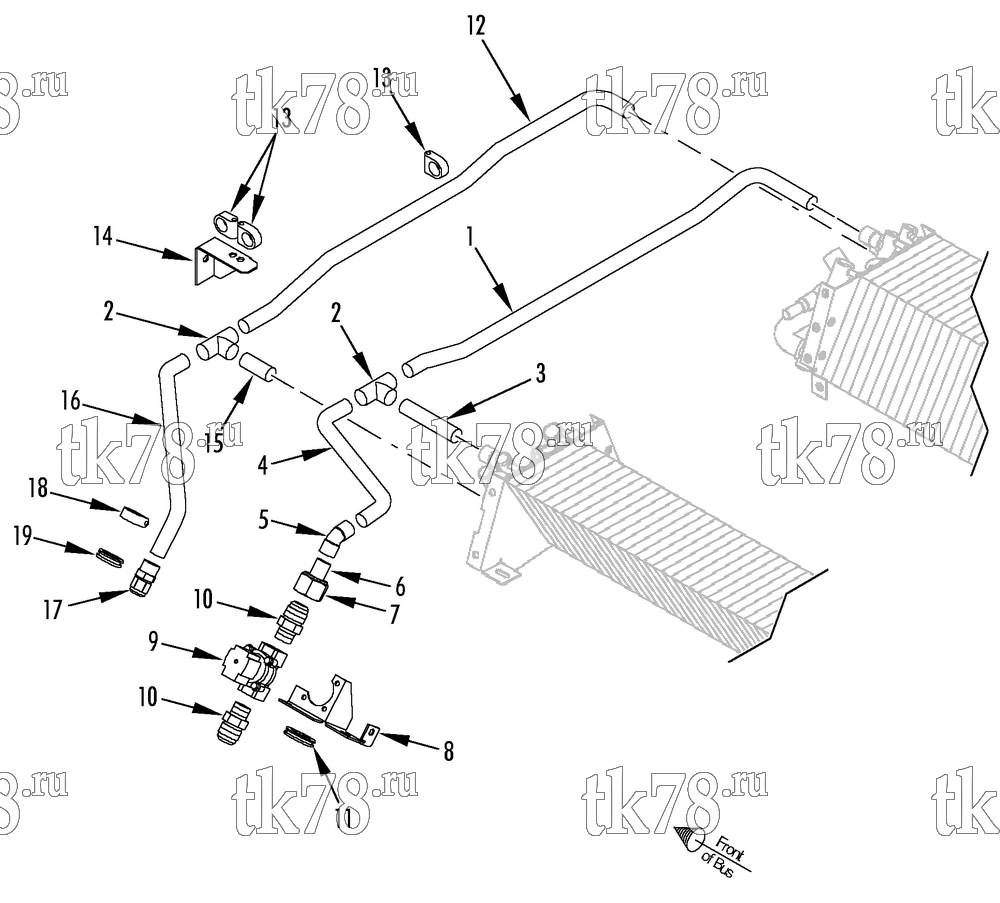

Установкa Thermo King схема EVAPORATOR HEATING COMPONENTS – 197E0
Обновление от: 12/22/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3098 | TUBE - water outlet, curbside | 1 | |
| 2 | 55-6174 | ELBOW (7/8 x 7/8 x 7/8) | 2 | |
| 3 | 61-3099 | TUBE (4.25 in lg) | 1 | |
| 4 | 61-3100 | TUBE - water outlet | 1 | |
| 5 | 55-4276 | ELBOW (45 deg, 7/8 sld) | 1 | |
| 6 | 61-3101 | TUBE - water outlet | 1 | |
| 7 | 55-9951 | NUT (7/8, brs) | 1 | |
| 8 | 92-4657 | BRACKET - solenoid valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 41-5610 | VALVE - solenoid (water, 24V see 147A1, for connectors see 115D14) | 1 | |
| 10 | 55-9334 | COUPLING - valve | 1 | |
| 11 | 33-1217 | GROMMET (1.375 in id) | 1 | |
| 12 | 61-3102 | TUBE - water inlet, roadside | 1 | |
| 13 | 55-7013 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 14 | 92-4658 | BRACKET - support | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 15 | 61-3086 | TUBE (2.125 in lg) | 1 | |
| 16 | 61-3103 | TUBE - water inlet, roadside | 1 | |
| 17 | 55-4274 | ADAPTER (3/4 fl x 7/8 sld) | 1 | |
| 18 | 55-7013 | CLAMP - tube | 1 | |
| 55-3344 | SCREW - clamp | 1 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 19 | 33-3917 | GROMMET | 1 |
