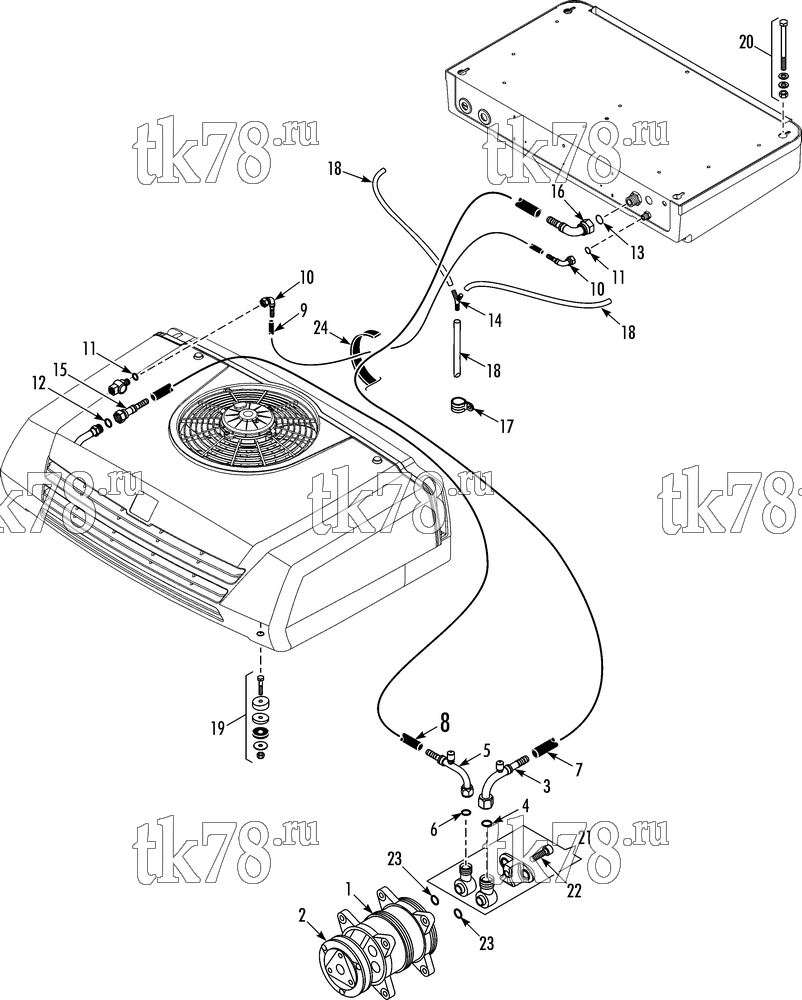

Установкa Thermo King схема COMPRESSOR & HOSE GROUP (C-200 & C-300) – 197D4
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - TM13-HD (C-200, see 189C3) | 1 | |
| 102-1028 | COMPRESSOR - 15XD (12V C-300, see 169C2) | 1 | ||
| 102-839 | COMPRESSOR - TM15-XD (24V C-300, see 169C2) | 1 | ||
| 2 | NSS | CLUTCH (see 189C3) | 1 | |
| 203-515 | OIL - compressor (ester base, 1 liter) | A/R | ||
| 3 | 51-2469 | FITTING - suction (90 deg, #10, C-200, see 165D6) | 1 | |
| 51-2462 | FITTING - suction (90 deg, #12, C-300) | 1 | ||
| 4 | 33-672 | O-RING - suction | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 5 | 51-2432 | FITTING - discharge (90 deg, #8, see 165D6) | 1 | |
| 6 | 33-2350 | O-RING - discharge | 1 | |
| 7 | 67-1710 | HOSE - refrigeration (#10, C-200) | A/R | |
| 67-1711 | HOSE - refrigeration (#12, C-300) | A/R | ||
| 8 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 9 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 10 | 51-2436 | FITTING - liquid (90 deg, #6, see 165D6) | 2 | |
| 11 | 33-1015 | O-RING - liquid (#6, 3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 12 | 33-566 | O-RING - discharge (#8, 1/2 id) | 1 | |
| 13 | 33-2115 | O-RING - suction (#10, 5/8 id C-200) | 1 | |
| 33-1222 | O-RING - suction (#12, 3/4 id, C-300) | 1 | ||
| 14 | 55-9258 | CONNECTOR - hose (Y) | 1 | |
| 15 | 51-2441 | FITTING - discharge (straight, #8, see 165D6) | 1 | |
| 16 | 51-2448 | FITTING - suction (90 deg, #10, C-200 see 165D6) | 1 | |
| 51-2433 | FITTING - suction (90 deg, #12, C-300) | 1 | ||
| 17 | 92-1903 | CLAMP - hose (22 mm) | 4 | |
| 92-3841 | CLAMP - hose (18 mm) | 4 | ||
| 92-3842 | CLAMP - hose (30 mm) | 2 | ||
| 51-792 | SCREW - clamp | 12 | ||
| 18 | 92-3469 | HOSE - drain | 1 | |
| 19 | 55-9919 | SCREW - condenser | 4 | |
| 55-9499 | WASHER (w/ inclined face) | 4 | ||
| 55-9500 | WASHER - compensator foot | 4 | ||
| 55-9501 | WASHER (rubber) | 4 | ||
| 55-7344 | NUT | 4 | ||
| 20 | 55-7172 | SCREW - evaporator | 4 | |
| 55-8893 | WASHER (fender) | 8 | ||
| 55-7042 | NUT | 4 | ||
| 21 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 22 | 51-1652 | SCREW - bracket | 1 | |
| 23 | 33-2882 | O-RING - manifold to compressor | 2 | |
| 24 | 33-1216 | GROMMET - hoses | 1 |
