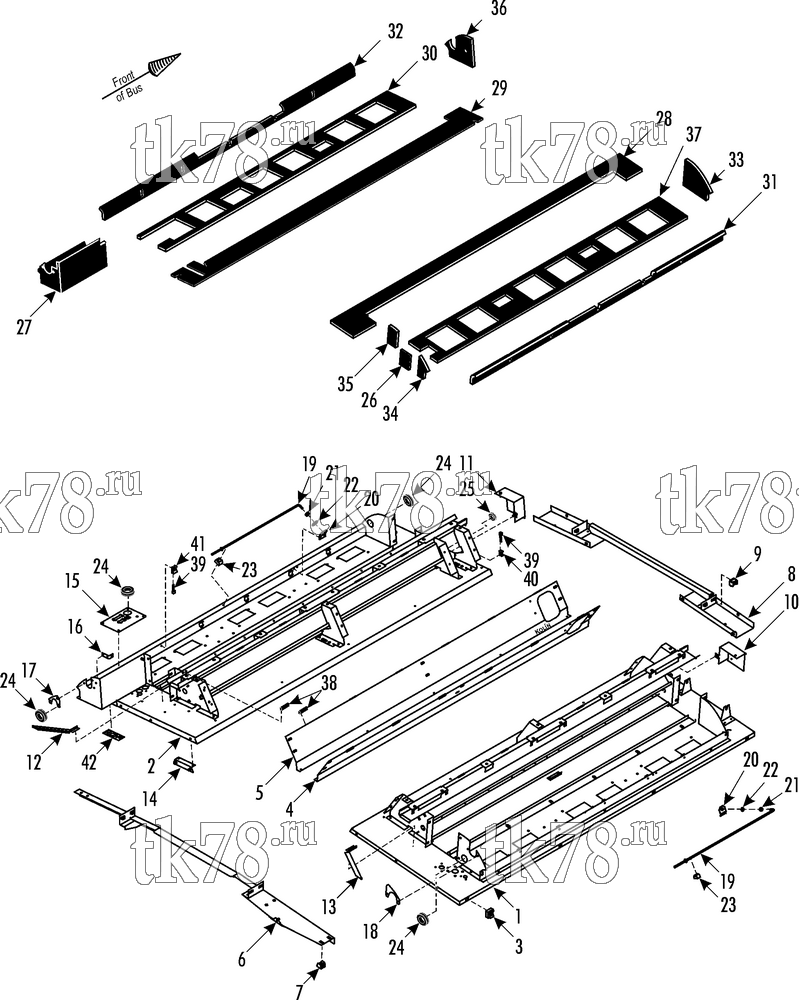

Установкa Thermo King схема FRAME & INSULATION – 195B7
Обновление от: 7/1/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6923 | BASE - curbside | 1 | |
| 2 | 98-6924 | BASE - roadside | 1 | |
| 55-7866 | NUT - captive (M4) | 34 | ||
| 55-8375 | NUT - captive (M5) | 12 | ||
| 55-7373 | NUT - captive (M6) | 12 | ||
| 3 | 55-9194 | NUT - captive (special) | 8 | |
| 4 | 92-682 | PLATE - curbside | 1 | |
| 5 | 92-720 | PLATE - roadside | 1 | |
| 55-5130 | RIVET - plate | A/R | ||
| 6 | 92-1267 | STIFFENER - rear | 1 | |
| 7 | 55-6997 | NUT - captive (M6, special) | 6 | |
| 55-7373 | NUT - captive (M6) | 2 | ||
| 55-8375 | NUT - captive (M5) | 1 | ||
| 55-6994 | SCREW - stiffener to base | 6 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7354 | NUT (M6) | 6 | ||
| 8 | 92-1268 | STIFFENER - front | 1 | |
| 55-6994 | SCREW - stiffener to base (M6) | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7354 | NUT | 4 | ||
| 9 | 55-6997 | NUT - captive (M6, special) | 4 | |
| 10 | 92-683 | COVER - motor | 1 | |
| 11 | 92-721 | COVER - motor | 1 | |
| 55-7340 | SCREW - cover (M5) | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 12 | 92-700 | ANGLE - coil support | 1 | |
| 13 | 92-1487 | ANGLE - coil support | 1 | |
| 14 | 92-698 | BRACKET - fuse box | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 15 | 92-2079 | BRACKET - terminal | 1 | |
| 55-2715 | RIVET - bracket | A/R | ||
| 16 | 92-125 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 17 | 92-2084 | LID - roadside | 1 | |
| 18 | 92-2085 | LID - curbside | 1 | |
| 55-5130 | RIVET - lids | A/R | ||
| 19 | 92-2086 | ROD - cover | 2 | |
| 20 | 92-2081 | BRACKET - cover rod | 2 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 21 | 83-258 | GROMMET (0.25 id) | 2 | |
| 22 | 51-809 | LOCKWASHER | 2 | |
| 23 | 91-7386 | CLAMP - cover rod | 2 | |
| 55-5130 | RIVET - clamp | A/R | ||
| 24 | 33-507 | GROMMET (1.125 id) | 4 | |
| 25 | 33-314 | GROMMET (0.312 id) | 1 | |
| 26 | 92-2082 | INSULATION | 1 | |
| 27 | 92-2083 | INSULATION | 1 | |
| 28 | 92-1262 | INSULATION | 1 | |
| 29 | 92-1263 | INSULATION | 1 | |
| 30 | 92-2087 | INSULATION | 1 | |
| 31 | 92-2088 | INSULATION | 1 | |
| 32 | 92-2089 | INSULATION | 1 | |
| 33 | 92-2090 | INSULATION | 1 | |
| 34 | 92-2091 | INSULATION | 1 | |
| 35 | 92-2092 | INSULATION | 1 | |
| 36 | 92-4113 | INSULATION | 1 | |
| 37 | 92-2094 | INSULATION | 1 | |
| 38 | 92-3279 | GASKET | A/R | |
| 39 | 55-2330 | BANDWRAP | 19 | |
| 40 | 99-3427 | MOUNT - bandwrap (#6) | 7 | |
| 41 | 99-3281 | MOUNT - bandwrap (#8) | 12 | |
| 55-3010 | RIVET - mount | A/R | ||
| 55-5130 | RIVET - mount | A/R | ||
| 42 | 91-3175 | NAMEPLATE - HCF R134a | 1 |
