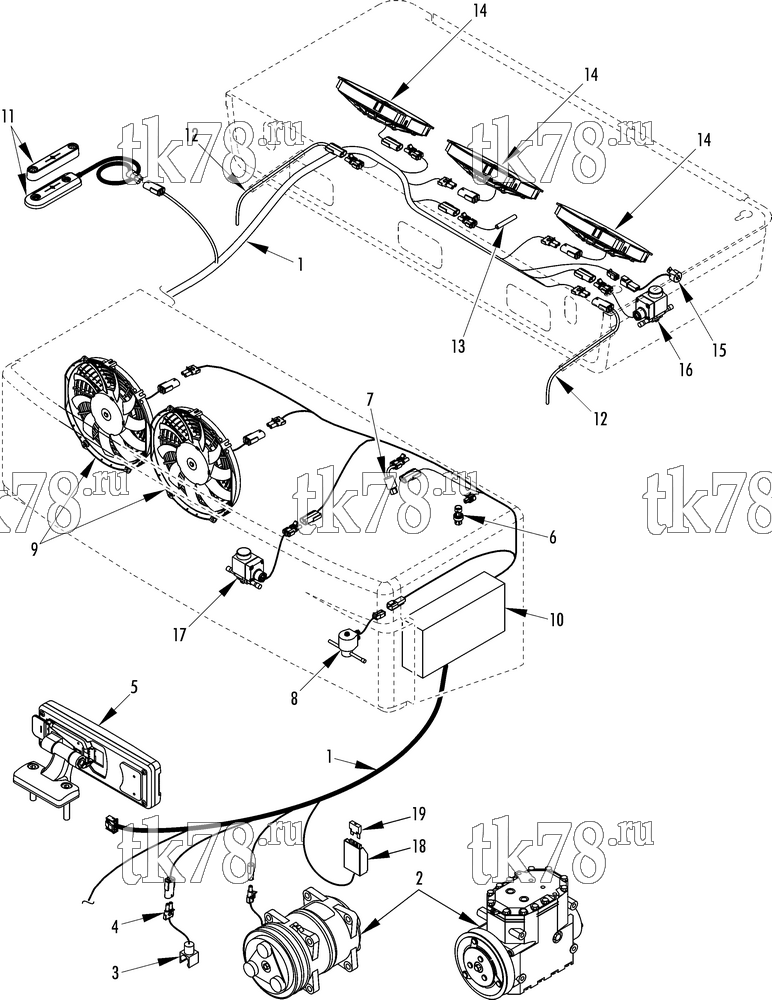

Установкa Thermo King схема ELECTRICAL COMPONENTS (V-500 10/30) – 192H9
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6029 | HARNESS - condenser (see 238B0) | 1 | |
| 2 | 102-842 | COMPRESSOR (TM16-XD,12V, see 193A7) | 1 | |
|
10-TM-16 | Компрессор, TM-16, 12V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-843 | COMPRESSOR (TM16-XD, 24V, see 193A7) | 1 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-799 | COMPRESSOR (TK312R, 12V, see 200A7) | 1 | ||
| 102-824 | COMPRESSOR (TK312R, 24V, see 200A7) | 1 | ||
| 3 | 44-9020 | SWITCH - thermo (MAX units) | 1 | |
| 4 | 44-9585 | PLUG - hot gas solenoid | 1 | |
| 5 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 6 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 7 | 44-8030 | SWITCH - low pressure cutout | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 66-7636 | SOLENOID - liquid injection (12V, MAX units) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V, MAX units) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 9 | 78-1375 | FAN - condenser (12V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1376 | FAN - condenser (24V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 10 | NSS | BOX - control (see 193A1) | 1 | |
| 11 | 40-907 | SWITCH - door | 1 | |
| 51-792 | SCREW - switch | 4 | ||
| 12 | 41-9627 | HEATER - drain tube (12V, MAX units) | 2 | |
| 41-3156 | HEATER - drain tube (24V, MAX units) | 2 | ||
| 13 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 14 | 78-1373 | FAN - evaporator (12V) | 3 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V) | 3 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 670 ₽ |
|
| 15 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 16 | 66-7878 | VALVE - base (hot gas, see 192H7) | 1 | |
| 41-5789 | COIL - hot gas valve (12V) | 1 | ||
| 41-5791 | COIL - hot gas valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 17 | 66-9032 | VALVE - solenoid (see 193A5, MAX 30 units) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 18 | 41-5785 | HOLDER - fuse | 1 | |
| 44-2792 | TERMINAL (#10) | 2 | ||
| 19 | 41-5786 | FUSE (40 amp, before 3/08) | 1 | |
| 41-7420 | FUSE (50 amp, 3/08 & after) | 1 | ||
|
30-41-7420 | Предохранитель 50А | 840 ₽ |
|
