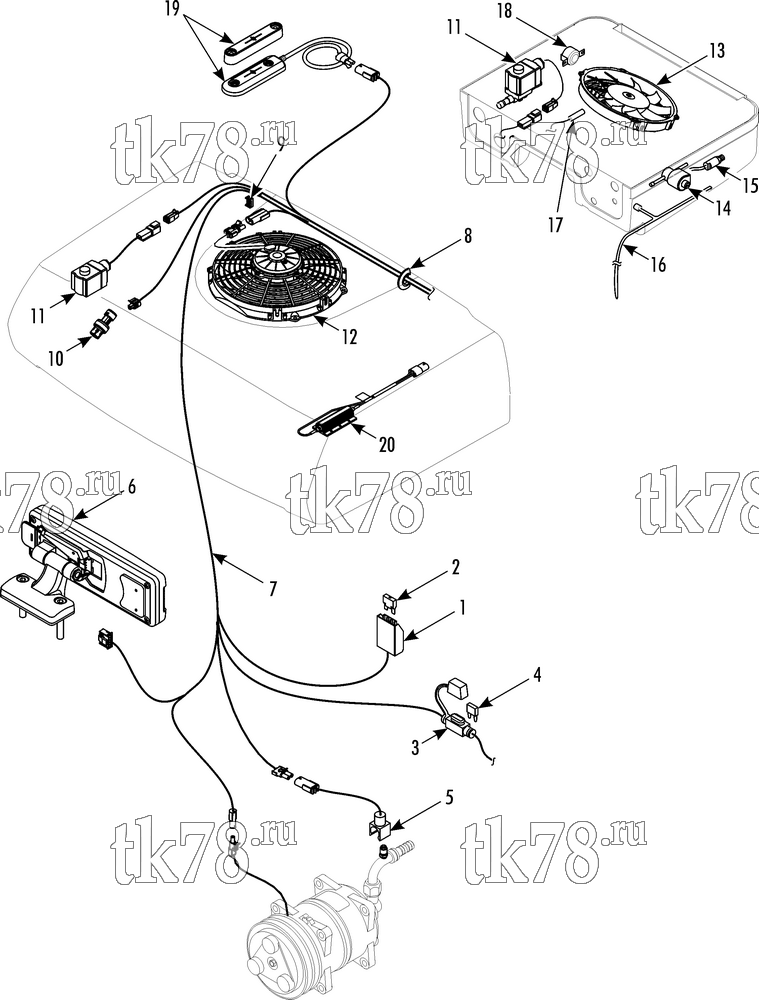

Установкa Thermo King схема ELECTRIC COMPONENTS (V100 10/30) – 192E0
Обновление от: 8/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5785 | HOLDER - fuse | 1 | |
| 2 | 41-7275 | FUSE (30 amp, V-100) | 1 | |
| 3 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 4 | 41-4551 | FUSE (5 amp) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 5 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 6 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 7 | 42-961 | HARNESS - condenser (see 236F5) | 1 | |
| 8 | 33-2656 | GROMMET - harness | 2 | |
| 9 | 55-8212 | HOLDER - bandwrap | 2 | |
| 55-9915 | RIVET - holder | 2 | ||
| 55-2330 | BANDWRAP | 2 | ||
| 10 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 11 | 41-5789 | COIL - valve (12V) | 2 | |
| 41-5791 | COIL - valve (24V) | 2 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 12 | 78-1375 | FAN - condenser (12V, draw, V-100 10 only) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1641 | FAN - condenser (12V, draw) | 1 | ||
| 78-1376 | FAN - condenser (24V, draw, V-100 10 only) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 78-1642 | FAN - condenser (24V, draw) | 1 | ||
| 13 | 78-1643 | FAN - evaporator (12V, blow) | 1 | |
| 78-1644 | FAN - evaporator (24V, blow) | 1 | ||
| 14 | 66-7636 | VALVE - pilot (12V, jet cool) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | VALVE - pilot (24V, jet cool) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 15 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 16 | 41-9627 | HEATER - drain tube (12V) | 1 | |
| 41-3156 | HEATER - drain tube (24V) | 1 | ||
| 17 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 18 | 41-3136 | SWITCH - defrost termination | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 19 | 40-907 | KIT - door switch | 1 | |
| 51-792 | SCREW - door switch | 4 | ||
| 20 | 41-9748 | KIT - resistance (condenser fan) | 1 |
