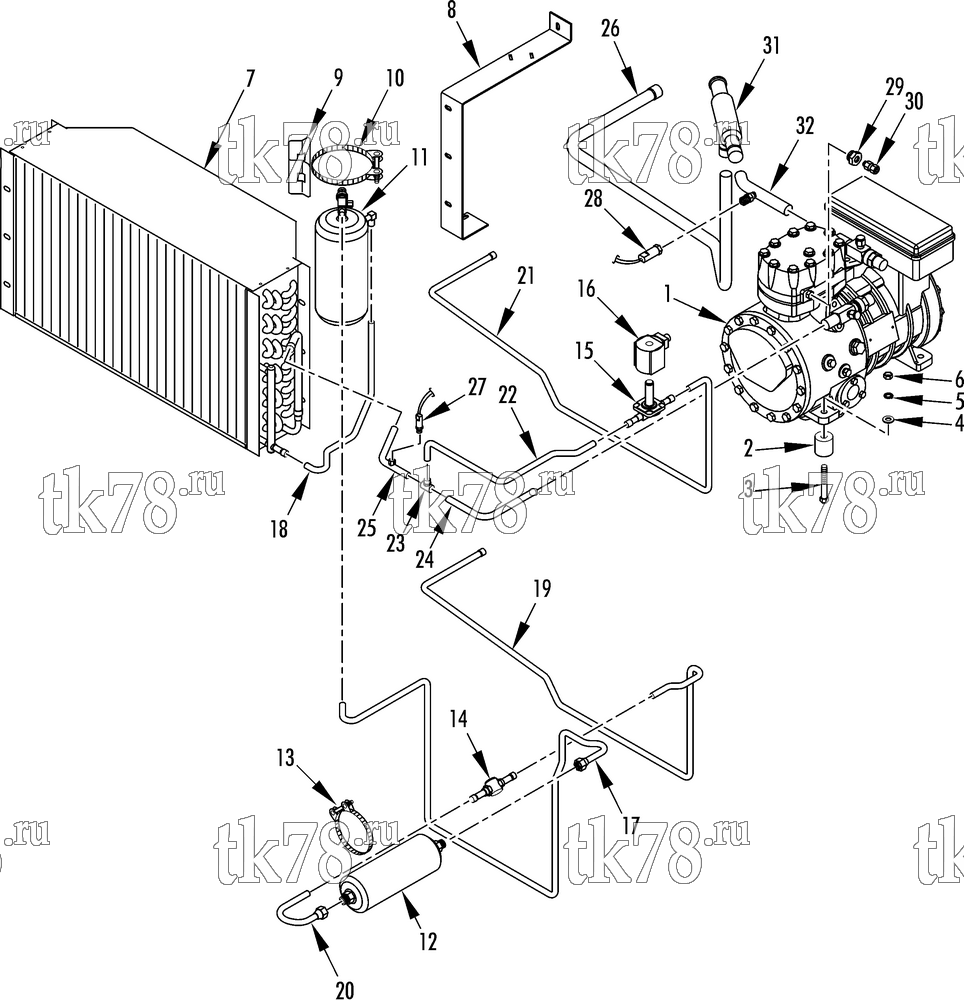

Установкa Thermo King схема REFRIGERATION GROUP – 192D2
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-722 | COMPRESSOR (D2 230/3/60, see 187B6 for service valves) | 1 | |
| 41-6450 | BOX - junction | 1 | ||
| 203-513 | OIL - compressor | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 2 | 51-173 | SPACER - compressor support | 4 | |
| 3 | 55-9158 | SCREW - compressor | 4 | |
| 4 | 55-7085 | FLATWASHER | 4 | |
| 5 | 55-9485 | LOCKWASHER | 4 | |
| 6 | 55-7339 | NUT | 4 | |
| 7 | 67-1619 | COIL - condenser | 1 | |
| 55-8375 | NUT - captive | 6 | ||
| 55-8893 | WASHER - special | 3 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7354 | NUT | 2 | ||
| 8 | 92-3583 | BRACKET - condenser coil | 1 | |
| 55-7035 | SCREW - bracket | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7354 | NUT | 3 | ||
| 9 | 92-636 | BRACKET - receiver tank | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 10 | 55-2688 | CLAMP - receiver tank | 1 | |
| 11 | 67-1798 | TANK - receiver | 1 | |
| 12 | 66-8471 | DEHYDRATOR | 1 | |
|
14-00326-03 OEM | Дегидратор, Supra/Xarios/Citimax | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios/Citimax | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios/Citimax | 1 300 ₽ |
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 55-6225 | CLAMP - dehydrator | 1 | |
| 14 | 61-4565 | INDICATOR - liquid | 1 | |
| 15 | 66-7878 | BODY - solenoid | 1 | |
| 16 | 41-5051 | COIL - valve (24V) | 1 | |
| 55-8531 | SCREW - valve | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 17 | 61-2596 | TUBE - receiver tank to dehydrator | 1 | |
| 55-9286 | SHOULDER- o-ring (#6) | 1 | ||
| 55-9009 | NUT - shoulder (#6) | 1 | ||
| 18 | 61-2589 | TUBE - condenser coil to receiver | 1 | |
| 19 | 61-2587 | TUBE - sight glass to evaporator | 1 | |
| 20 | 61-2588 | TUBE - dehydrator to sight glass | 1 | |
| 55-9286 | SHOULDER- o-ring (#6) | 1 | ||
| 55-9009 | NUT - shoulder (#6) | 1 | ||
| 92-1502 | CLAMP - tube | 1 | ||
| 21 | 61-2590 | TUBE - solenoid to evaporator | 1 | |
| 22 | 61-2591 | TUBE - tee to solenoid | 1 | |
| 23 | 55-2181 | TEE | 1 | |
| 24 | 61-2592 | TUBE - compressor to tee | 1 | |
| 25 | 61-2593 | TUBE - tee to condenser coil | 1 | |
| 61-439 | ADAPTER - hpco (female) | 1 | ||
| 26 | 61-2594 | TUBE - evaporator to valve | 1 | |
| 27 | 41-9459 | SWITCH - hpco | 1 | |
| 61-5142 | ADAPTER (1/8 NPT x 3/8-24) | 1 | ||
| 28 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 29 | 61-2060 | ADAPTER - valve | 1 | |
| 30 | 61-1193 | VALVE - relief | 1 | |
| 31 | 22-1073 | VALVE - suction pressure regulator | 1 | |
| 32 | 61-2595 | TUBE - valve to compressor | 1 | |
| 33 | 61-2504 | VALVE - service port | 1 | |
| 11-7777 | VALVE (Schrader) | 1 |
