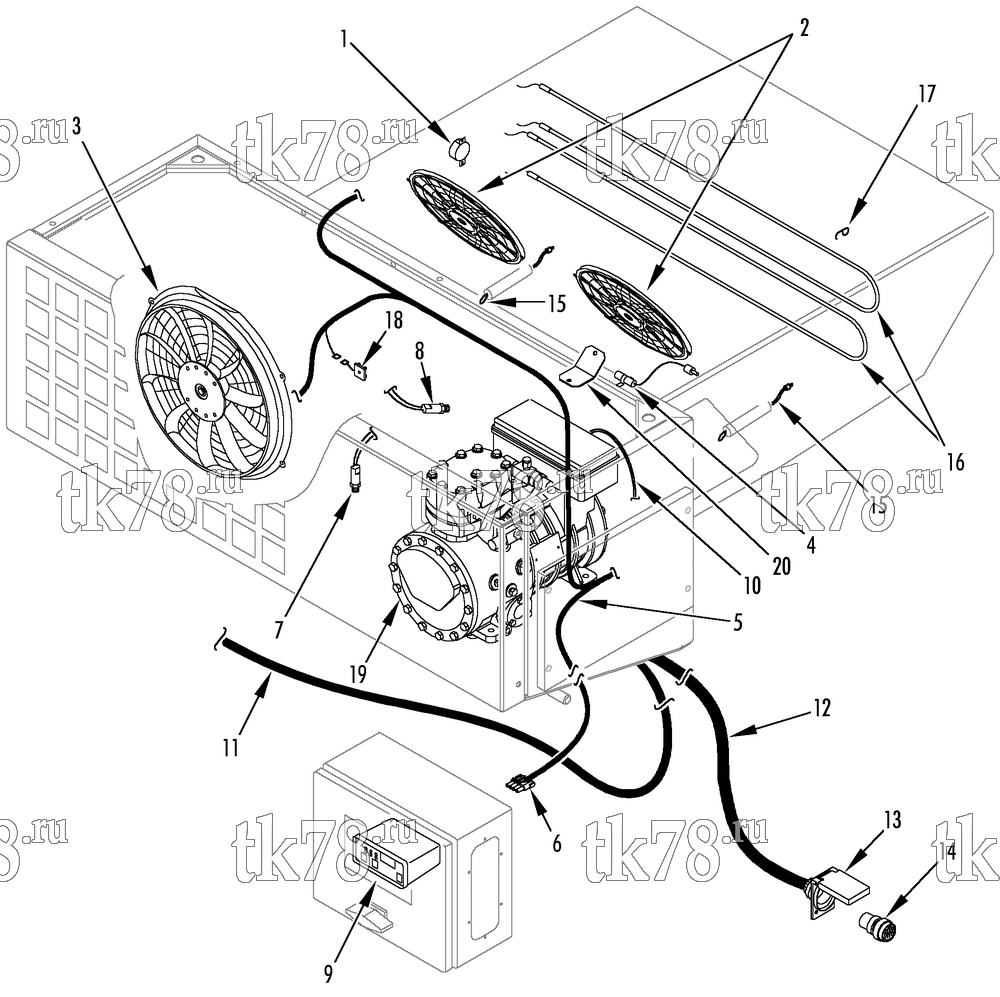

Установкa Thermo King схема ELECTRICAL COMPONENTS – 192A9
Обновление от: 3/29/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 2 | 78-1378 | FAN & MOTOR - evaporator (see 155E9) | 2 | |
| 3 | 78-1370 | FAN & MOTOR - condenser (24V) | 1 | |
| 55-7036 | SCREW - fan | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 4 | 41-3143 | SENSOR - temperature | 1 | |
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-9452 | SCREW - clamp | 1 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 5 | 41-5890 | HARNESS - main | 1 | |
| 6 | 41-3423 | CONNECTOR (10-pin, see 192D6) | 1 | |
| 55-2332 | BANDWRAP (0.75 dia, black) | 4 | ||
| 7 | 41-9459 | SWITCH - hpco | 1 | |
| 8 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 9 | 45-1780 | CONTROLLER (M13, see 155G9) | 1 | |
| 10 | 41-5891 | CABLE - power (control box to compressor) | 1 | |
| 11 | 41-6311 | CABLE - mains (receptacle to unit, 3 ph) | 1 | |
| 12 | 41-3442 | CABLE - mains (unit to receptacle, 1 ph) | 1 | |
| 13 | 44-4645 | RECEPTACLE (15A, 125V) | 1 | |
| 14 | 44-4646 | RECEPTACLE (15A, 125V) | 1 | |
| 15 | 41-3156 | HARNESS - drain tube heater (24V, see 155E9) | 2 | |
| 16 | 45-1395 | HEATER (750W, 230VAC) | 2 | |
| 17 | 91-240 | RETAINER - heater | 8 | |
| 18 | 41-3999 | HARNESS - rectifier (condenser fan) | 1 | |
| 41-363 | RECTIFIER | 1 | ||
| 55-9452 | SCREW - rectifier | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7698 | NUT | 1 | ||
| 19 | 102-722 | COMPRESSOR (see 192D1) | 1 | |
| 41-6450 | BOX - junction | 1 | ||
| 20 | 92-3608 | BRACKET - sensor | 1 |
