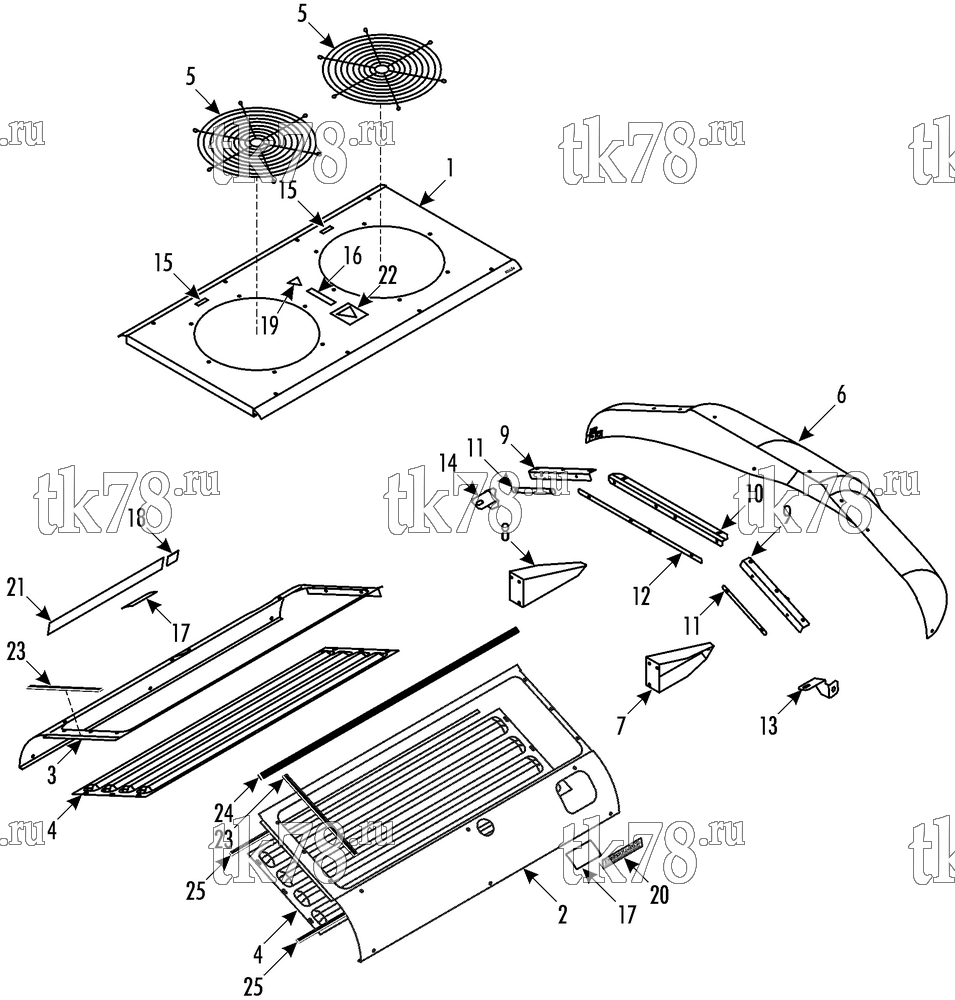

Установкa Thermo King схема CONDENSER COVERS – 190G5
Обновление от: 3/31/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6331 | COVER - center | 1 | |
| 2 | 98-6475 | COVER - right | 1 | |
| 3 | 98-6474 | COVER - left | 1 | |
| 4 | 309-3229 | GRILLE - inlet | 2 | |
| 55-9368 | SCREW - covers & grilles | 32 | ||
| 55-5970 | WASHER - sealing | 32 | ||
| 5 | 309-3224 | GRILLE - fan (outlet) | 2 | |
| 55-9368 | SCREW - fan grilles | 12 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-9553 | NUT - captive | 12 | ||
| 6 | 98-6248 | END CAP | 1 | |
| 55-8837 | SCREW - end cap | 2 | ||
| 55-9368 | SCREW - end cap (25 mm) | 6 | ||
| 55-6994 | SCREW - end cap (20 mm) | 2 | ||
| 55-5970 | WASHER | 10 | ||
| 55-9553 | NUT - captive | 8 | ||
| 55-6997 | CAGENUT | 2 | ||
| 7 | 92-2026 | BRACKET - end cap (right) | 1 | |
| 8 | 92-2027 | BRACKET - end cap (left) | 1 | |
| 55-6994 | SCREW - bracket | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-9553 | NUT - captive | 6 | ||
| 9 | 92-2868 | HOLDER - end cap (right) | 2 | |
| 10 | 92-2869 | HOLDER - end cap (left) | 1 | |
| 55-6994 | SCREW - holder | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9553 | NUT - captive | 8 | ||
| 11 | 92-2870 | PLATE - endcap holder (right) | 2 | |
| 12 | 92-2871 | PLATE - endcap holder (left) | 1 | |
| 13 | 92-1995 | CLIP - end cap (right) | 1 | |
| 14 | 92-1996 | CLIP - end cap (left) | 1 | |
| 55-6994 | SCREW - clip | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 15 | 99-4931 | LABEL - arrow | 2 | |
| 16 | 309-3064 | LABEL - Caution (No Step) | 1 | |
| 17 | 92-2823 | LABEL - Warning | 2 | |
| 18 | 91-3247 | LABEL - TK logo | 1 | |
| 19 | 99-7834 | LABEL - Caution, High Voltage | 1 | |
| 20 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 | |
| 21 | 99-7029 | NAMEPLATE - Thermo King | 1 | |
| 22 | 99-8506 | LABEL - Caution, Fan | 1 | |
| 23 | 92-2302 | STRIP - neoprene (0.06 x 0.4) | A/R | |
| 24 | 99-5966 | STRIP - neoprene (0.25 x 1.0) | A/R | |
| 25 | 99-4976 | STRIP - neoprene (0.12 x 0.5) | A/R |
