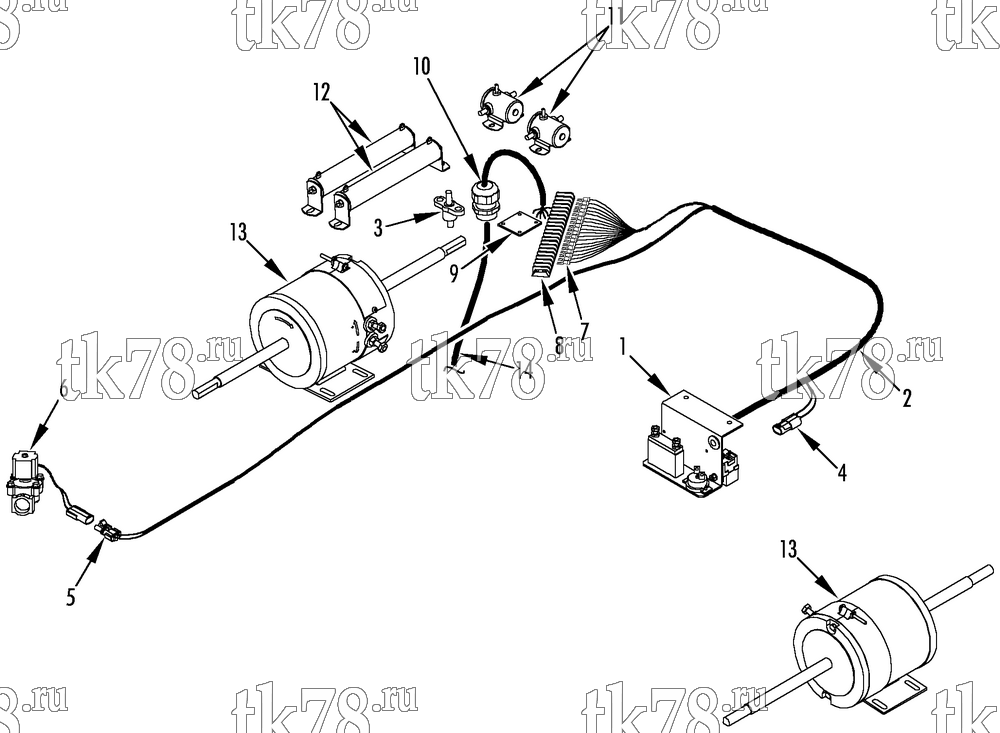

Установкa Thermo King схема ELECTRICAL COMPONENTS (SLAVE) – 189G0
Обновление от: 11/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 189G8) | 1 | |
| 55-2957 | SCREW - box | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 2 | 41-5720 | HARNESS - main (slave) | 1 | |
| 3 | 55-9550 | TERMINAL - positive | 1 | |
| 4 | 44-5835 | CONNECTOR - shroud (coil sensor) | 1 | |
| 55-3167 | STUD - negative | 1 | ||
| 55-3066 | LOCKWASHER (internal tooth) | 4 | ||
| 55-3672 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-448 | FLATWASHER | 6 | ||
| 55-671 | NUT | 6 | ||
| 5 | 44-5838 | CONNECTOR - tower (coolant valve) | 1 | |
| 6 | 41-7599 | VALVE - water (see 147A1) | 1 | |
| 7 | 41-438 | TERMINAL - fork (#16) | 9 | |
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 41-4973 | TERMINAL - fork (#12) | 5 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 2 | ||
| 44-5089 | TERMINAL - ring (yellow, 3/8) | 1 | ||
| 8 | 44-5335 | BOARD - terminal (20 positions) | 1 | |
| 55-2991 | SCREW - board | 4 | ||
| 91-8529 | NAMEPLATE - terminal board | 1 | ||
| 9 | 92-3344 | PLATE - blockoff | 1 | |
| 51-751 | SCREW - plate | 4 | ||
| 10 | 41-4189 | CONNECTOR - harness grip | 1 | |
| 55-2255 | NUT - connector | 1 | ||
| 11 | 41-3987 | SOLENOID (see 189H1) | 2 | |
| 12 | 44-6596 | RESISTOR (1.1 ohm, see 189H1) | 1 | |
| 44-8653 | RESISTOR (0.5 ohm) | 1 | ||
| 13 | 104-720 | MOTOR - evaporator (see 189H1) | 2 | |
| 44-8252 | BRUSH | 4 | ||
| 14 | N/A | HARNESS - control (not supplied by Thermo King) | 1 |
