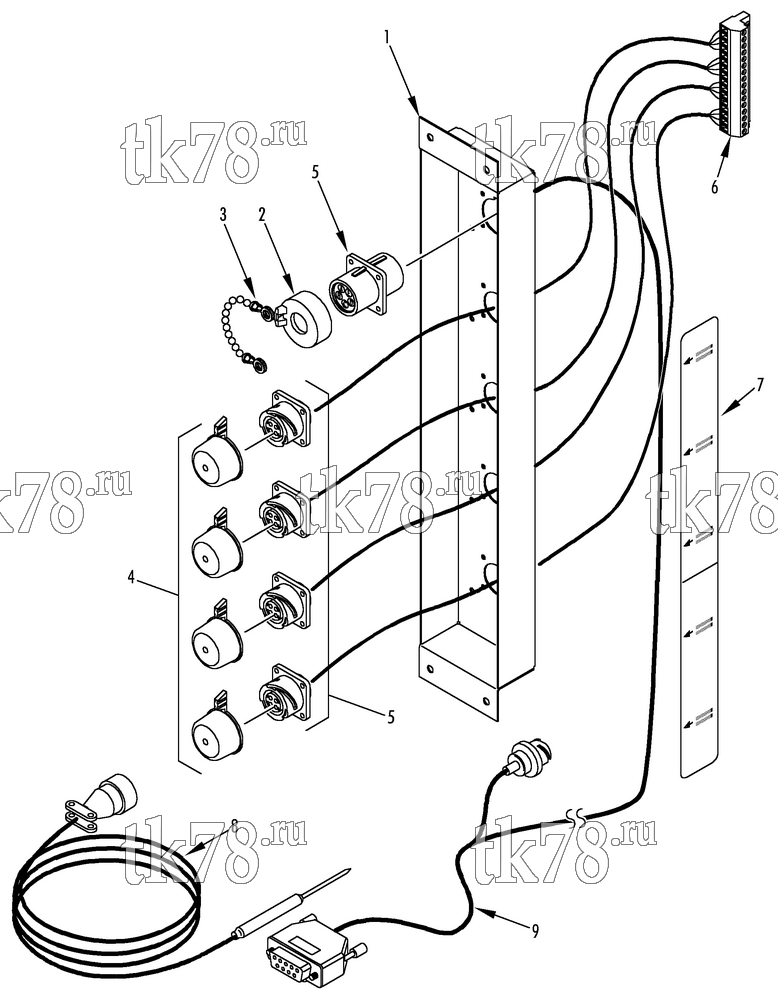

Установкa Thermo King схема USDA DOWNLOAD PANEL (4-PIN DEUTSCH CONNECTORS) – 189D7
Обновление от: 11/25/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-428 | PANEL - USDA receptacle | 1 | |
| 51-1448 | RIVET - panel | 4 | ||
| 2 | 41-2406 | CAP - dust | 1 | |
| 3 | 99-3685 | CHAIN - cap | 1 | |
| 4 | 41-3588 | CAP - dust | 4 | |
| 55-9323 | RIVET - cap | 5 | ||
| 5 | 41-3587 | RECEPTACLE (4-pin, Deutsch) | 4 | |
| 55-9322 | RIVET - connector | 16 | ||
| 6 | 41-5416 | CONNECTOR - plug (16-pin) | 1 | |
| 7 | 92-243 | NAMEPLATE - data download (USDA) | 1 | |
| 8 | 41-8188 | SENSOR (3-pin, Deutsch, 14 m, NTC) | 4 | |
| 9 | 41-3402 | CABLE & PLUG - retriever (Deutsch) | 1 |
