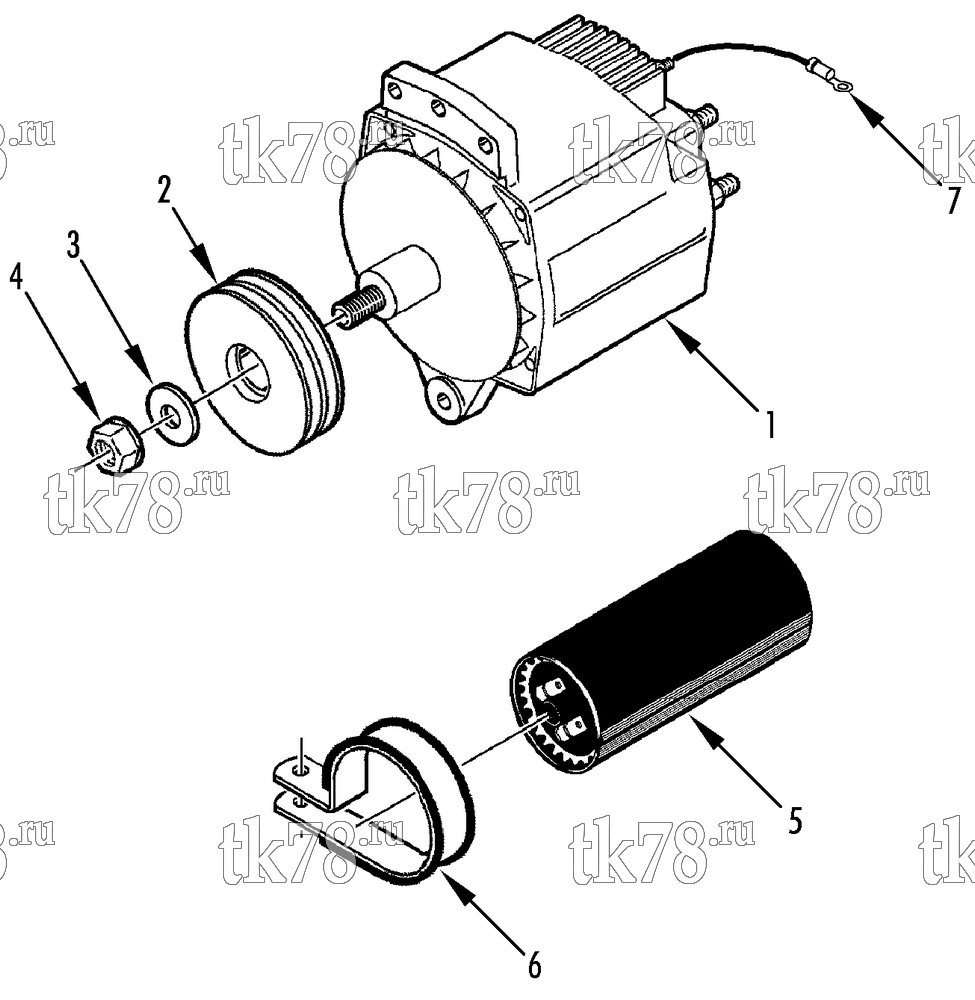

Установкa Thermo King схема ALTERNATOR GROUP (150 AMP) – 188F5
Обновление от: 10/29/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3021 | ALTERNATOR (28VDC output/12VDC excitation) | 1 | |
| US-41-3021 | Генератор 150 А | 141 810 ₽ |
|
|
| 10-41-3021 | Генератор 24В, 150А | 92 860 ₽ |
|
|
| 2 | 77-2663 | PULLEY - alternator | 1 | |
| 3 | 55-5058 | WASHER - special | 1 | |
| 4 | 55-5321 | NUT - pulley | 1 | |
| 5 | 44-4055 | CAPACITOR - alternator | 1 | |
| 6 | 55-5618 | CLAMP - capacitor | 2 | |
| 55-1049 | SCREW - clamp | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-664 | NUT | 2 | ||
| 7 | 41-1031 | TERMINAL - ring | 1 |
