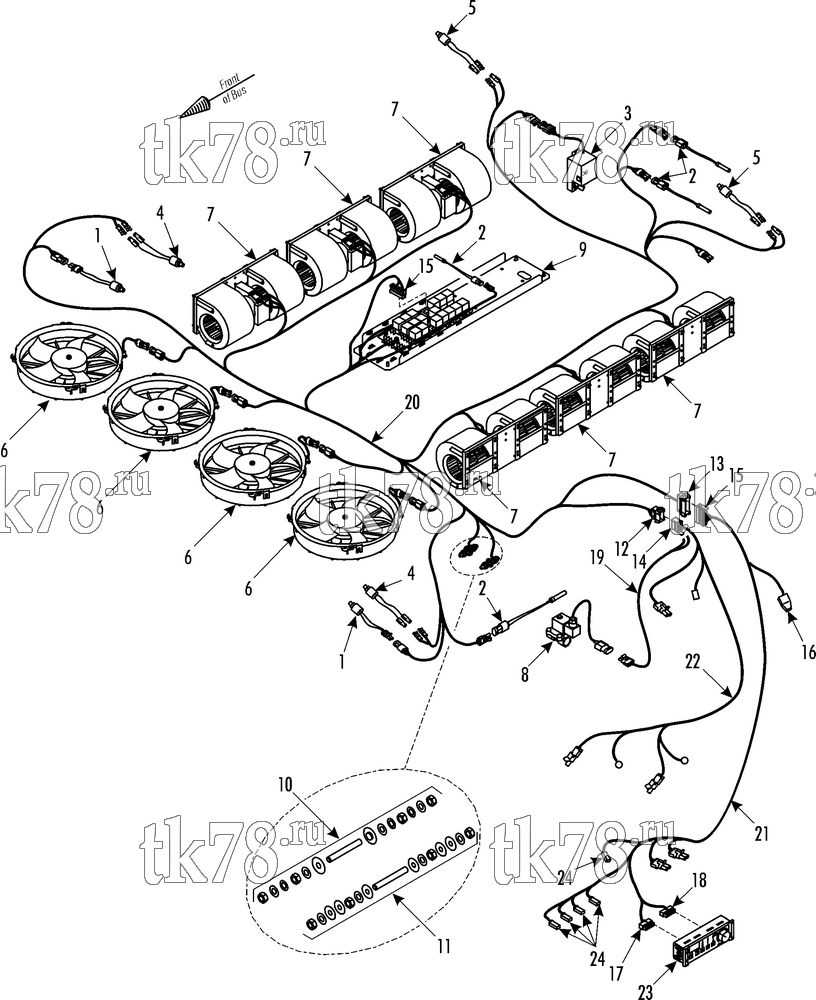

Установкa Thermo King схема ELECTRICAL COMPONENTS (ClimaAIRE II) – 186H0
Обновление от: 10/9/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5220 | SWITCH (CPS) | 2 | |
| 2 | 41-4157 | SENSOR - temperature | 4 | |
| 3 | 41-2420 | MOTOR - geared | 1 | |
| 4 | 41-1502 | SWITCH - hpco | 2 | |
| 5 | 41-6064 | SWITCH - lpco | 2 | |
| 6 | 78-1344 | FAN - condenser (for connectors see 115D14) | 4 | |
| 7 | 78-1297 | BLOWER | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 8 | 41-4151 | VALVE - solenoid (water, 1004 only, see 184G1, for connectors see 115D14) | 1 | |
| 9 | NSS | PANEL - electrical (see 190A1) | 1 | |
| 10 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 11 | 55-9191 | STUD - negative | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 12 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 41-2779 | PIN - male | A/R | ||
| 41-2785 | PIN - male | A/R | ||
| 13 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 41-2779 | PIN - male | A/R | ||
| 41-2785 | PIN - male | A/R | ||
| 14 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 41-4248 | PIN (14-16 gauge) | A/R | ||
| 15 | 41-3856 | CONNECTOR (18-pin, female) | 2 | |
| 41-4247 | PIN (18 gauge) | A/R | ||
| 41-4248 | PIN (14-16 gauge) | A/R | ||
| 16 | 44-6264 | CONNECTOR (1-pin, male) | 1 | |
| 44-9695 | PIN (18-24 gauge) | A/R | ||
| 17 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | A/R | ||
| 18 | 41-650 | CONNECTOR (18 terminal) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | A/R | ||
| 19 | 41-5389 | HARNESS - water valve (1004 only, 20 m, see 184G1) | 1 | |
| 41-5390 | HARNESS - water valve (1004 only, 10 m, see 184G1) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | A/R | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | A/R | ||
| 20 | 41-5715 | HARNESS (for connector see 115D14) | 1 | |
| 21 | 41-5716 | HARNESS - unit to driver panel (8 m) | 1 | |
| 41-5472 | HARNESS - unit to driver panel (12 m) | 1 | ||
| 41-5471 | HARNESS - unit to driver panel (18.3 m) | 1 | ||
| 22 | 41-5717 | HARNESS - compressor (8.2 m, for connector see 115D14) | 1 | |
| 41-5473 | HARNESS - compressor (12 m, for connector see 115D14) | 1 | ||
| 41-5474 | HARNESS - compressor (18 m, for connector see 115D14) | 1 | ||
| 23 | 41-4658 | ClimaAIRE II - assembly (see 184F9) | 1 | |
| 24 | 44-6381 | CONNECTOR (1-pin, female) | 5 | |
| 44-5066 | TERMINAL - fingrip (18-24 ga) | A/R |
