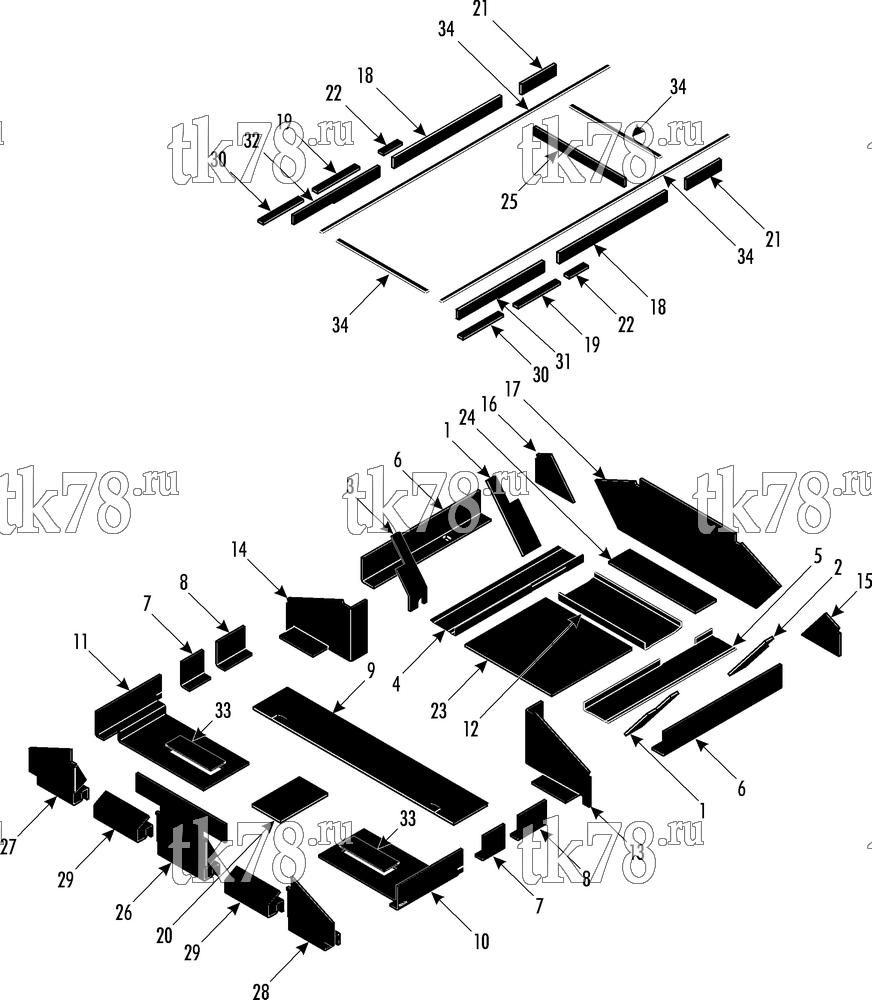

Установкa Thermo King схема INSULATION GROUP – 186D8
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3106 | INSULATION - filter wall | 2 | |
| 2 | 92-3107 | INSULATION - filter wall | 1 | |
| 3 | 92-3108 | INSULATION - filter wall | 1 | |
| 4 | 92-3109 | INSULATION - drain, right | 1 | |
| 5 | 92-3110 | INSULATION - drain, left | 1 | |
| 6 | 92-3111 | INSULATION - sidewall | 2 | |
| 7 | 92-3112 | INSULATION - sidewall | 2 | |
| 8 | 92-3113 | INSULATION - sidewall | 2 | |
| 9 | 92-3114 | INSULATION - bottom | 1 | |
| 10 | 92-3115 | INSULATION - blower pan | 1 | |
| 11 | 92-3116 | INSULATION - blower pan | 1 | |
| 12 | 92-3117 | INSULATION - drain | 1 | |
| 13 | 92-3118 | INSULATION - wall, right | 1 | |
| 14 | 92-3119 | INSULATION - wall, left | 1 | |
| 15 | 92-3120 | INSULATION - wall, right | 1 | |
| 16 | 92-3121 | INSULATION - wall, left | 1 | |
| 17 | 92-3122 | INSULATION - wall | 1 | |
| 18 | 92-3123 | INSULATION - beam | 2 | |
| 19 | 92-3124 | INSULATION - beam | 2 | |
| 20 | 92-3125 | INSULATION - blower pan | 1 | |
| 21 | 92-3126 | INSULATION - beam | 2 | |
| 22 | 92-3127 | INSULATION - beam | 2 | |
| 23 | 92-3128 | INSULATION - evaporator pan | 1 | |
| 24 | 92-3129 | INSULATION - evaporator pan | 1 | |
| 25 | 92-3130 | INSULATION - beam bracket | 1 | |
| 26 | 92-3131 | INSULATION - header, middle | 1 | |
| 27 | 92-3132 | INSULATION - header, side | 1 | |
| 28 | 92-3133 | INSULATION - header, side | 1 | |
| 29 | 92-3134 | INSULATION - header | 2 | |
| 30 | 92-3135 | INSULATION - beam | 2 | |
| 31 | 92-3136 | INSULATION - beam | 1 | |
| 32 | 92-3137 | INSULATION - beam | 1 | |
| 33 | 92-3138 | INSULATION - blower pan | 2 | |
| 34 | 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R |
